Ka-87 gear-reducing motorDetailed Information
Keyword: ka87 gv motor_ka87y160m4_ka87y1. 1kw_ka87 grt manufacturer_ka87 gv manufacturer_ka87 grt manufacturer
KA87Y160M4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA87Y160M4 | 44.02 | 11KW | 33rpm | 3160N.m | 170Kg | 20100N | 0.8 |
| KA87Y160M4 | 36.52 | 11KW | 40rpm | 2620N.m | 170Kg | 20500N | 0.95 |
| KA87Y160M4 | 31.39 | 11KW | 47rpm | 2250N.m | 170Kg | 20600N | 1.2 |
| KA87Y160M4 | 27.88 | 11KW | 52rpm | 2000N.m | 170Kg | 20600N | 1.3 |
| KA87Y160M4 | 24.92 | 11KW | 59rpm | 1790N.m | 170Kg | 20500N | 1.4 |
| KA87Y160M4 | 22.41 | 11KW | 65rpm | 1610N.m | 170Kg | 20300N | 1.45 |
| KA87Y160M4 | 19.45 | 11KW | 75rpm | 1390N.m | 170Kg | 20100N | 1.65 |
| KA87Y160M4 | 17.42 | 11KW | 84rpm | 1250N.m | 170Kg | 19800N | 1.75 |
| KA87Y160M4 | 16 | 11KW | 91rpm | 1150N.m | 170Kg | 18800N | 1.55 |
| KA87Y160M4 | 14.45 | 11KW | 101rpm | 1030N.m | 170Kg | 19300N | 2 |
| KA87Y160M4 | 12.56 | 11KW | 116rpm | 900N.m | 170Kg | 18900N | 2.2 |
| KA87Y160M4 | 11.17 | 11KW | 131rpm | 800N.m | 170Kg | 18000N | 1.85 |
| KA87Y160M4 | 10 | 11KW | 146rpm | 715N.m | 170Kg | 17600N | 2.1 |
| KA87Y160M4 | 8.29 | 11KW | 176rpm | 595N.m | 170Kg | 17100N | 2.4 |
| KA87Y160M4 | 7.21 | 11KW | 202rpm | 515N.m | 170Kg | 16600N | 2.5 |
Ka87y1. 1kw reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA87Y1.1KW | 174.19 | 1.1KW | 8.1rpm | 1290N.m | 105Kg | 28600N | 2.1 |
| KA87Y1.1KW | 163.34 | 1.1KW | 8.6rpm | 1220N.m | 105Kg | 28700N | 2.2 |
| KA87Y1.1KW | 147.32 | 1.1KW | 9.6rpm | 1090N.m | 105Kg | 28700N | 2.5 |
| KA87Y1.1KW | 126.91 | 1.1KW | 11rpm | 940N.m | 105Kg | 28800N | 2.9 |
| KA87Y1.1KW | 115.82 | 1.1KW | 12rpm | 860N.m | 105Kg | 28900N | 3.1 |
KAType of gear-reducing motor:
K. Dr. bottom foot slashing gears - umbrella gear reduction
Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power
Kv. B dr. bottom
Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor
Kf. Dr. B5 francs with slash gears - umbrella gear reduction
Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power
Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power
Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power
Ka. Dr. empty axle tilt gears - umbrella gear reduction power
Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator
Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power
Kt. Dr. hollow gears installed on the hollow axle
Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine
Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant
Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

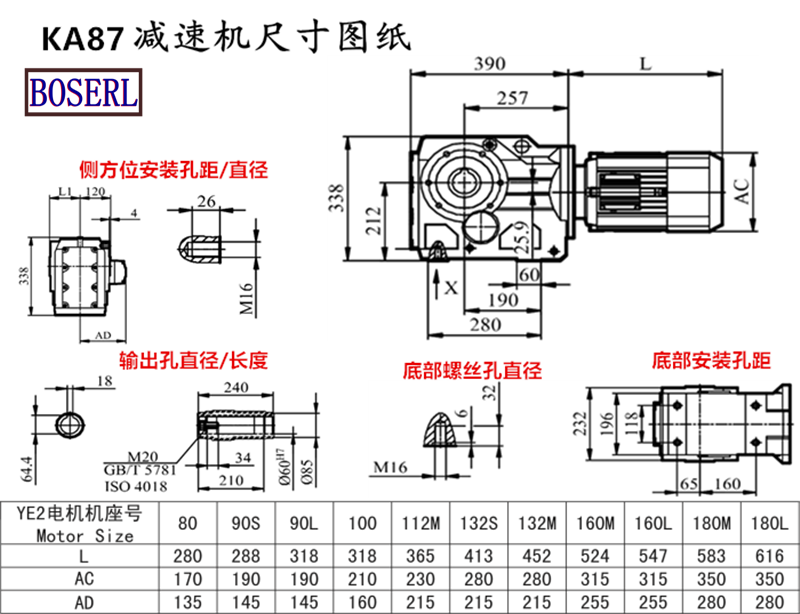

Ka87 gear-reducing motors installed size drawings:
Ka87 depressor motor plant display: three days' appointment at the factory
Through-hole shaft reducerPresentation of application cases:
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
