KA87DRE132M4Detailed Information

prevnext

KA87DRE132M4

TEL：Email:[email protected]

详细信息

Keyword: transport 89 tons of loader reduction machine_ka87dre132m4_ka87dm132m4

KA87DRE132M4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA87DRE132M4	63	7.5KW	23rpm	3120N.m	145Kg	24100N	0.85
KA87DRE132M4	56.64	7.5KW	26rpm	2800N.m	145Kg	24200N	0.95
KA87DRE132M4	49.16	7.5KW	29rpm	2430N.m	145Kg	24200N	1.1
KA87DRE132M4	44.02	7.5KW	33rpm	2180N.m	145Kg	24100N	1.2
KA87DRE132M4	36.52	7.5KW	40rpm	1810N.m	145Kg	23800N	1.4
KA87DRE132M4	31.39	7.5KW	46rpm	1550N.m	145Kg	23500N	1.75
KA87DRE132M4	27.88	7.5KW	52rpm	1380N.m	145Kg	23100N	1.9
KA87DRE132M4	24.92	7.5KW	58rpm	1230N.m	145Kg	22800N	2
KA87DRE132M4	22.41	7.5KW	64rpm	1110N.m	145Kg	22400N	2.1
KA87DRE132M4	19.45	7.5KW	74rpm	960N.m	145Kg	21900N	2.4
KA87DRE132M4	17.42	7.5KW	83rpm	860N.m	145Kg	21500N	2.6
KA87DRE132M4	16	7.5KW	90rpm	790N.m	145Kg	20600N	2.3
KA87DRE132M4	14.45	7.5KW	100rpm	715N.m	145Kg	20700N	2.9

KA87DM132M4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA87DM132M4	63	7.5KW	23rpm	3120N.m	145Kg	24100N	0.85
KA87DM132M4	56.64	7.5KW	26rpm	2800N.m	145Kg	24200N	0.95
KA87DM132M4	49.16	7.5KW	29rpm	2430N.m	145Kg	24200N	1.1
KA87DM132M4	44.02	7.5KW	33rpm	2180N.m	145Kg	24100N	1.2
KA87DM132M4	36.52	7.5KW	40rpm	1810N.m	145Kg	23800N	1.4
KA87DM132M4	31.39	7.5KW	46rpm	1550N.m	145Kg	23500N	1.75
KA87DM132M4	27.88	7.5KW	52rpm	1380N.m	145Kg	23100N	1.9
KA87DM132M4	24.92	7.5KW	58rpm	1230N.m	145Kg	22800N	2
KA87DM132M4	22.41	7.5KW	64rpm	1110N.m	145Kg	22400N	2.1
KA87DM132M4	19.45	7.5KW	74rpm	960N.m	145Kg	21900N	2.4
KA87DM132M4	17.42	7.5KW	83rpm	860N.m	145Kg	21500N	2.6
KA87DM132M4	16	7.5KW	90rpm	790N.m	145Kg	20600N	2.3
KA87DM132M4	14.45	7.5KW	100rpm	715N.m	145Kg	20700N	2.9

KA87DRE132M4Speeding machine type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

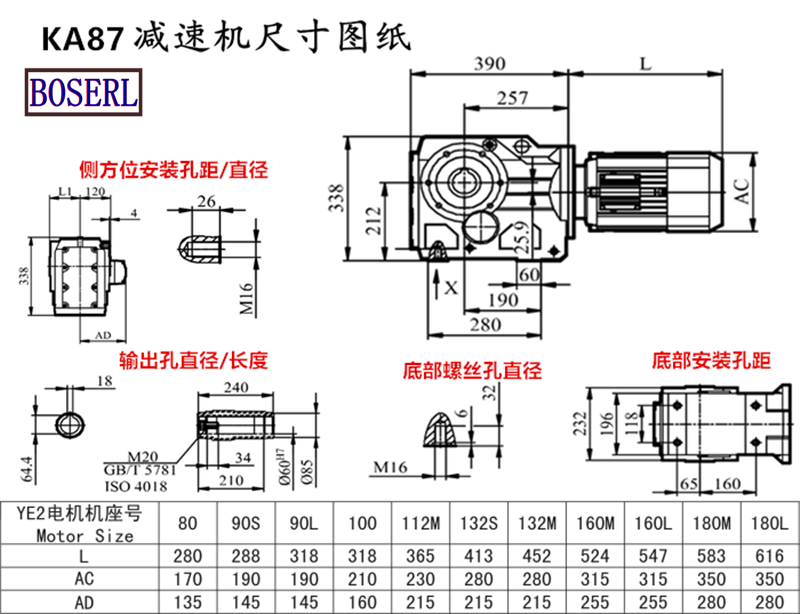

KA87DRE132M4Induction Motor 3Ph motors installed size drawings:

KA87DRE132M4At thereducing plant: three days in advance

Through-hole shaft reducerPresentation of application cases:

Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor

KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox

KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
