KA87/TDRE100LS4Detailed Information

prevnext

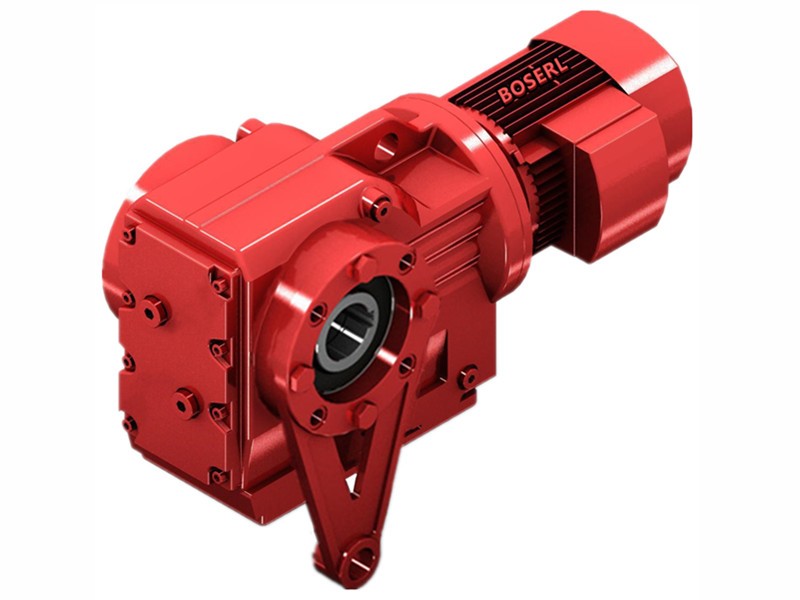

KA87/TDRE100LS4

TEL：Email:[email protected]

详细信息

Keyword: 0. 37 kw power with an umbrella gear decelerator _ka87/tdre100ls4_ka87/tdrn100l4

KA87/TDRE100LS4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA87/TDRE100LS4	147.32	3KW	9.5rpm	3010N.m	115Kg	26900N	0.9
KA87/TDRE100LS4	126.91	3KW	11rpm	2590N.m	115Kg	27400N	1.05
KA87/TDRE100LS4	115.82	3KW	12rpm	2360N.m	115Kg	27700N	1.15
KA87/TDRE100LS4	102.71	3KW	14rpm	2100N.m	115Kg	28000N	1.3
KA87/TDRE100LS4	86.34	3KW	16rpm	1760N.m	115Kg	28300N	1.55
KA87/TDRE100LS4	79.34	3KW	18rpm	1620N.m	115Kg	28400N	1.65
KA87/TDRE100LS4	70.46	3KW	20rpm	1440N.m	115Kg	28500N	1.85
KA87/TDRE100LS4	63	3KW	22rpm	1280N.m	115Kg	28600N	2.1
KA87/TDRE100LS4	56.64	3KW	25rpm	1150N.m	115Kg	28700N	2.3
KA87/TDRE100LS4	49.16	3KW	28rpm	1000N.m	115Kg	28800N	2.7
KA87/TDRE100LS4	44.02	3KW	32rpm	900N.m	115Kg	28800N	2.9
KA87/TDRE100LS4	36.52	3KW	38rpm	745N.m	115Kg	28400N	3.4

Ka87/tdrn100l4 reduction motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA87/TDRN100L4	147.32	3KW	9.5rpm	3010N.m	115Kg	26900N	0.9
KA87/TDRN100L4	126.91	3KW	11rpm	2590N.m	115Kg	27400N	1.05
KA87/TDRN100L4	115.82	3KW	12rpm	2360N.m	115Kg	27700N	1.15
KA87/TDRN100L4	102.71	3KW	14rpm	2100N.m	115Kg	28000N	1.3
KA87/TDRN100L4	86.34	3KW	16rpm	1760N.m	115Kg	28300N	1.55
KA87/TDRN100L4	79.34	3KW	18rpm	1620N.m	115Kg	28400N	1.65
KA87/TDRN100L4	70.46	3KW	20rpm	1440N.m	115Kg	28500N	1.85
KA87/TDRN100L4	63	3KW	22rpm	1280N.m	115Kg	28600N	2.1
KA87/TDRN100L4	56.64	3KW	25rpm	1150N.m	115Kg	28700N	2.3
KA87/TDRN100L4	49.16	3KW	28rpm	1000N.m	115Kg	28800N	2.7
KA87/TDRN100L4	44.02	3KW	32rpm	900N.m	115Kg	28800N	2.9
KA87/TDRN100L4	36.52	3KW	38rpm	745N.m	115Kg	28400N	3.4

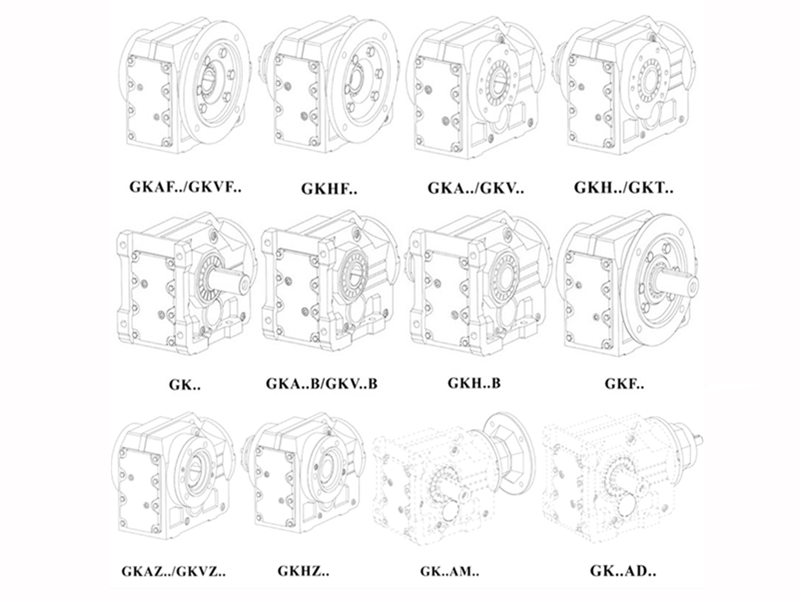

Ka87/tdre100ls4ing type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

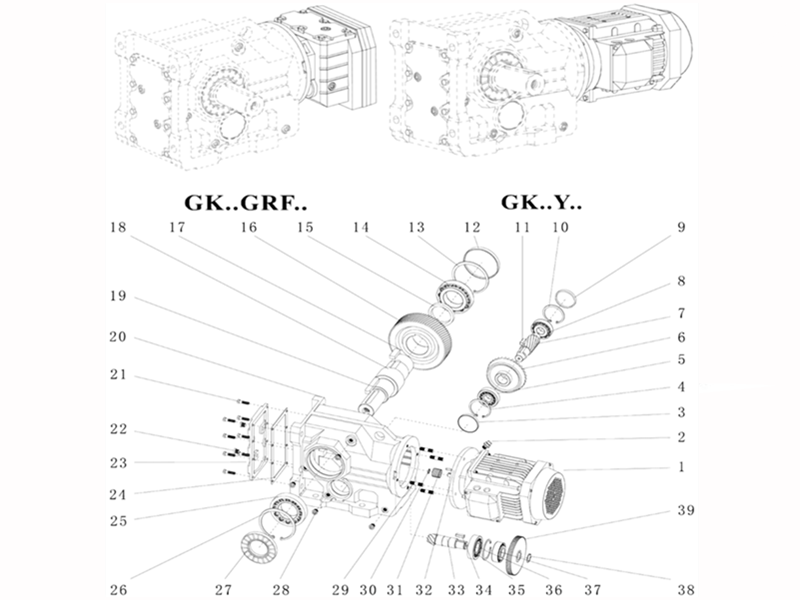

Motor-gear reducer.jpg

Ka87/tdre100ls4reducing motors with size drawings:

Ka87/tdre100ls4 deviation plant show: three days in advance at the plant

Through-hole shaft reducerPresentation of application cases:

Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor

KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox

KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
