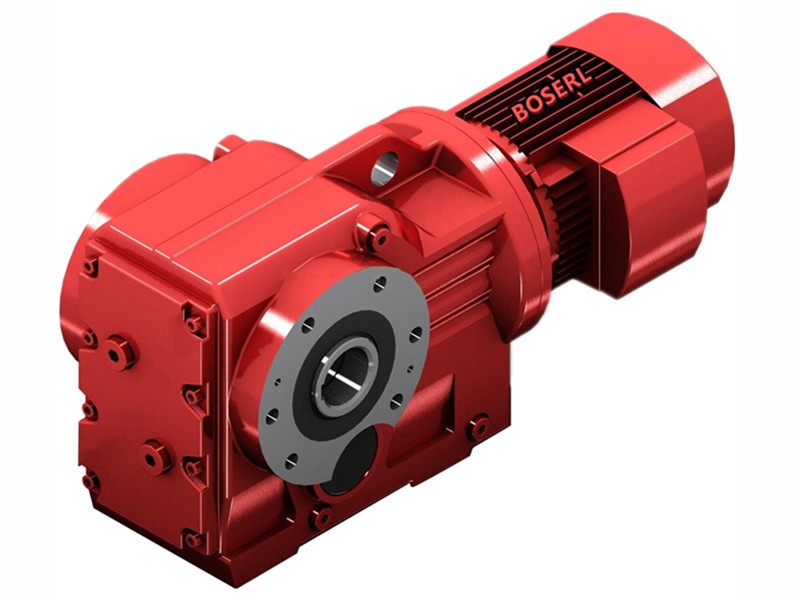

Ka-97 gear-retarderDetailed Information
Keywords: ka97 gear-reducing box electric unit_ ka97y160m4_ka97y180m4_ka97 gear-reducing box_ka97y200m4_ka97 gear-reducing box manufacturer_ka97 gear-reducing box manufacturer
KA97Y160M4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA97Y160M4 | 41.87 | 11KW | 35rpm | 3010N.m | 230Kg | 32200N | 1.45 |
| KA97Y160M4 | 38.3 | 11KW | 38rpm | 2750N.m | 230Kg | 32000N | 1.55 |
| KA97Y160M4 | 34.23 | 11KW | 43rpm | 2460N.m | 230Kg | 31600N | 1.75 |
| KA97Y160M4 | 30.82 | 11KW | 47rpm | 2210N.m | 230Kg | 31200N | 1.95 |
| KA97Y160M4 | 27.91 | 11KW | 52rpm | 2000N.m | 230Kg | 30800N | 2.1 |
| KA97Y160M4 | 24.75 | 11KW | 59rpm | 1780N.m | 230Kg | 30200N | 2.4 |
| KA97Y160M4 | 22.37 | 11KW | 65rpm | 1600N.m | 230Kg | 29700N | 2.7 |
Ka97y180m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA97Y180M4 | 41.87 | 18.5KW | 35rpm | 5260N.m | 280Kg | 25100N | 0.85 |
| KA97Y180M4 | 30.82 | 18.5KW | 47rpm | 3720N.m | 280Kg | 26000N | 1.15 |
| KA97Y180M4 | 27.91 | 18.5KW | 52rpm | 3370N.m | 280Kg | 26000N | 1.25 |
| KA97Y180M4 | 24.75 | 18.5KW | 59rpm | 2990N.m | 280Kg | 26000N | 1.45 |
| KA97Y180M4 | 22.37 | 18.5KW | 65rpm | 2700N.m | 280Kg | 25900N | 1.6 |
| KA97Y180M4 | 18.96 | 18.5KW | 77rpm | 2290N.m | 280Kg | 25700N | 1.85 |
| KA97Y180M4 | 16.56 | 18.5KW | 88rpm | 2000N.m | 280Kg | 25300N | 2.2 |
| KA97Y180M4 | 13.85 | 18.5KW | 105rpm | 1670N.m | 280Kg | 24800N | 2.6 |
| KA97Y180M4 | 11.99 | 18.5KW | 122rpm | 1450N.m | 280Kg | 24300N | 2.7 |
Ka97y200m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA97Y200M4 | 24.75 | 30KW | 60rpm | 4810N.m | 400Kg | 19600N | 0.9 |
| KA97Y200M4 | 22.37 | 30KW | 66rpm | 4340N.m | 400Kg | 20100N | 1 |
| KA97Y200M4 | 18.96 | 30KW | 78rpm | 3680N.m | 400Kg | 20700N | 1.15 |
| KA97Y200M4 | 16.56 | 30KW | 89rpm | 3220N.m | 400Kg | 21000N | 1.35 |
| KA97Y200M4 | 13.85 | 30KW | 107rpm | 2690N.m | 400Kg | 21200N | 1.6 |
| KA97Y200M4 | 11.99 | 30KW | 123rpm | 2330N.m | 400Kg | 21100N | 1.65 |
| KA97Y200M4 | 10.41 | 30KW | 142rpm | 2020N.m | 400Kg | 19500N | 1.4 |
| KA97Y200M4 | 8.71 | 30KW | 169rpm | 1690N.m | 400Kg | 19400N | 1.55 |
KA97 gear-reducing box electricsType:

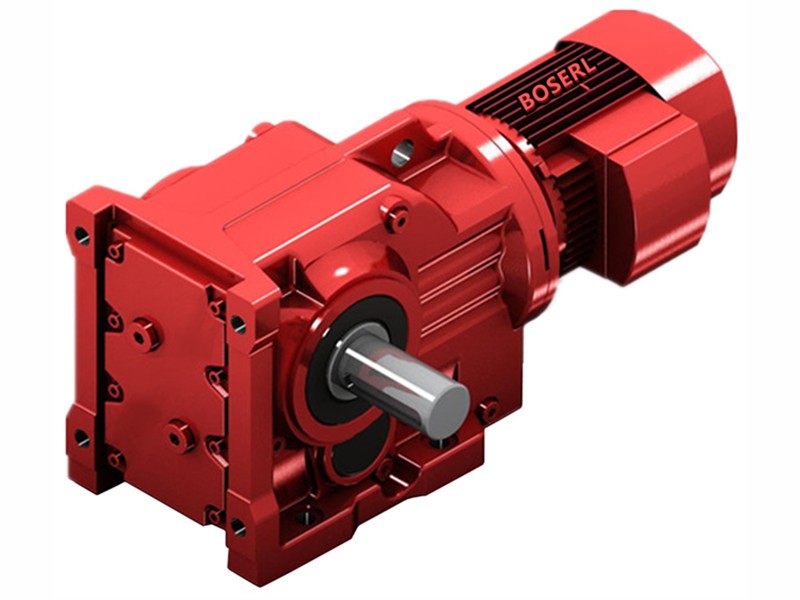

K. Dr. bottom foot slashing gears - umbrella gear reduction
Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power
Kv. B dr. bottom
Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

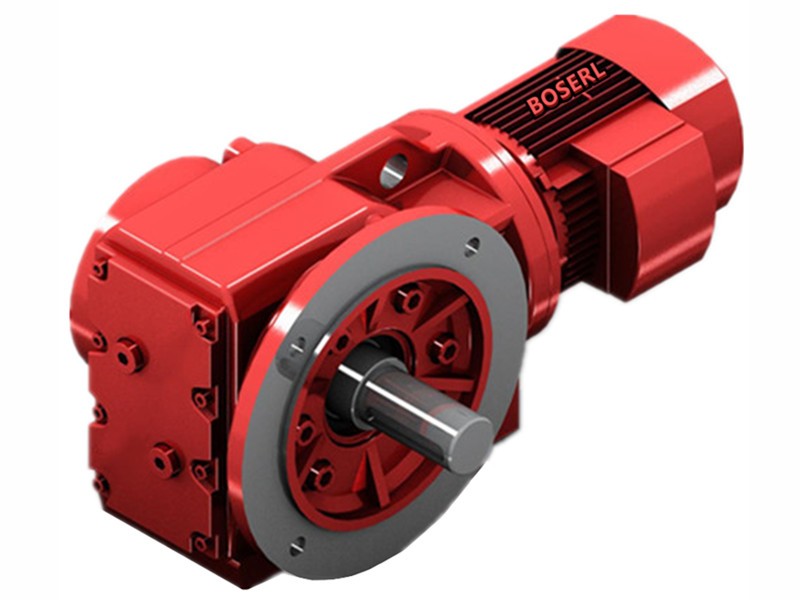

Kf. Dr. B5 francs with slash gears - umbrella gear reduction
Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power
Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power
Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power
Ka. Dr. empty axle tilt gears - umbrella gear reduction power
Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator
Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power
Kt. Dr. hollow gears installed on the hollow axle
Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine
Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant
Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power
Ka-97 gear-retarderInstall size drawings:
Ka-97 gear-retarderProduction plant display: three days' appointment for the factory
Through-hole shaft reducerPresentation of application cases:
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: ka97 gear deviation box ka97y160m4 ka97y180m4齿ka97 gear deviation box ka97y200m4kka97 gear deviation box manufacturer ka97 gang deviation boxer
