KA97R57DM63MS4Detailed Information

prevnext

KA97R57DM63MS4

TEL：Email:[email protected]

详细信息

Keyword: how big a 110kw power is with two-axis brakes_ka97r57dm63ms4_ka97r57drrs71s4

KA97R57DM63MS4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA97R57DM63MS4	8054	0.12KW	0.17r/min	5460N.m	153.5kg	39400N	0.80
KA97R57DM63MS4	6970	0.12KW	0.20r/min	4420N.m	153.5kg	40000N	0.95
KA97R57DM63MS4	6027	0.12KW	0.23r/min	4000N.m	153.5kg	40000N	1.05
KA97R57DM63MS4	5391	0.12KW	0.26r/min	3650N.m	153.5kg	40000N	1.20
KA97R57DM63MS4	4669	0.12KW	0.30r/min	3020N.m	153.5kg	40000N	1.40
KA97R57DM63MS4	4082	0.12KW	0.34r/min	2730N.m	153.5kg	40000N	1.55
KA97R57DM63MS4	3583	0.12KW	0.39r/min	2370N.m	153.5kg	40000N	1.80
KA97R57DM63MS4	3108	0.12KW	0.44r/min	2090N.m	153.5kg	40000N	2.00
KA97R57DM63MS4	2757	0.12KW	0.50r/min	1770N.m	153.5kg	40000N	2.40
KA97R57DM63MS4	2419	0.12KW	0.57r/min	1650N.m	153.5kg	40000N	2.60
KA97R57DM63MS4	2123	0.12KW	0.65r/min	1420N.m	153.5kg	40000N	3.00
KA97R57DM63MS4	1856	0.12KW	0.74r/min	1270N.m	153.5kg	40000N	3.40
KA97R57DM63MS4	1625	0.12KW	0.85r/min	1040N.m	153.5kg	40000N	4.10
KA97R57DM63MS4	1430	0.12KW	0.96r/min	890N.m	153.5kg	40000N	4.80
KA97R57DM63MS4	1261	0.12KW	1.10r/min	860N.m	153.5kg	40000N	5.00
KA97R57DM63MS4	1102	0.12KW	1.20r/min	755N.m	153.5kg	40000N	5.70

Ka97r57drs71s4 reduction motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA97R57DRS71S4	3108	0.25KW	0.42r/min	4980N.m	158kg	39900N	0.85
KA97R57DRS71S4	2757	0.25KW	0.47r/min	4350N.m	158kg	40000N	1.00
KA97R57DRS71S4	2419	0.25KW	0.54r/min	3920N.m	158kg	40000N	1.10
KA97R57DRS71S4	2123	0.25KW	0.61r/min	3420N.m	158kg	40000N	1.25
KA97R57DRS71S4	1856	0.25KW	0.70r/min	3010N.m	158kg	40000N	1.40
KA97R57DRS71S4	1625	0.25KW	0.80r/min	2570N.m	158kg	40000N	1.65
KA97R57DRS71S4	1430	0.25KW	0.91r/min	2240N.m	158kg	40000N	1.90
KA97R57DRS71S4	1261	0.25KW	1.00r/min	2050N.m	158kg	40000N	2.10
KA97R57DRS71S4	1102	0.25KW	1.20r/min	1790N.m	158kg	40000N	2.40
KA97R57DRS71S4	957	0.25KW	1.40r/min	1560N.m	158kg	40000N	2.70
KA97R57DRS71S4	855	0.25KW	1.50r/min	1400N.m	158kg	40000N	3.10

KA97R57DM63MS4Speeding machine type:

K97r57dm63ms4 bottom foot installation of tilt gear - umbrella gear deviation engine

Ka97r57dm63ms4 foot hollow axis with tilt gears - umbrella gear reduction power

The kv97br57dm63ms4 foot larvae axis is equipped with tilt gears - umbrella gear-reducing power

Kh97br57dm63ms4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor

Frf97r57dm63ms4b5 installation of tilt gear - umbrella gear reduction power

Kaf97r57dm63ms4b5 french aerocentric axle is equipped with tilt gears - umbrella gear-reducing power

Kvf97r57dm63ms4b5franco-axis installation of tilt gears - umbrella gear-reducing power

Khf97r57dm63ms4b5farland axial axle locks fitted with tilt gears - umbrella gear-reducing power

Ka97r57dm63ms4 sky axis tilt gear - umbrella gear deviation power

Kv97r57dm63ms4 sky axis installation of tilt gear - umbrella gear deviation engine

Kh97r57dm63ms4 empty axle locks slashing gears - umbrella gear reduction power

Installation of tilt gears on kt97r57dm63ms4 hollow axle - umbrella gear reduction power

Kaz97r57dm63ms4b14 installation of tilt gear - umbrella gear reduction power

Kvz97r57dm63ms4b14 installation of tilt gears - umbrella gear-reducing power

Khz97r57dm63ms4b14 franium axial axle locks fitted with tilt gears - umbrella gear reduction power

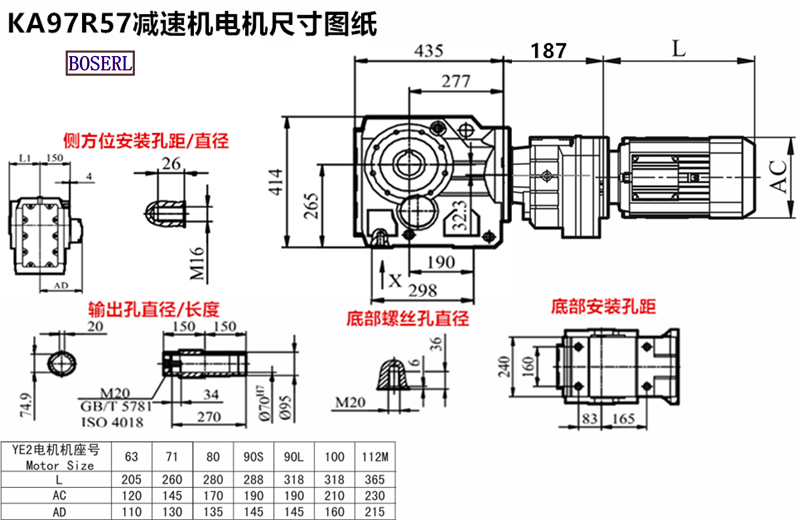

KA97R57DM63MS4Induction Motor 3Ph motors installed size drawings

Ka97r57dm63ms4 deviation electric power plant, three days in advanceThrough-hole shaft reducer

Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor

KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox

KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
