KA97R57DR80N4Detailed Information
Keywords: how much kw power does it have
KA97R57DR80N4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA97R57DR80N4 | 1102 | 0.75KW | 1.30r/min | 5030N.m | 164kg | 39900N | 0.85 |
| KA97R57DR80N4 | 957 | 0.75KW | 1.50r/min | 4410N.m | 164kg | 40000N | 0.95 |
| KA97R57DR80N4 | 855 | 0.75KW | 1.70r/min | 3940N.m | 164kg | 40000N | 1.10 |
| KA97R57DR80N4 | 573 | 0.75KW | 2.50r/min | 2620N.m | 164kg | 40000N | 1.65 |
| KA97R57DR80N4 | 743 | 0.75KW | 1.90r/min | 3320N.m | 164kg | 40000N | 1.30 |
| KA97R57DR80N4 | 652 | 0.75KW | 2.20r/min | 2930N.m | 164kg | 40000N | 1.45 |
| KA97R57DR80N4 | 504 | 0.75KW | 2.80r/min | 2250N.m | 164kg | 40000N | 1.90 |
| KA97R57DR80N4 | 437 | 0.75KW | 3.30r/min | 1940N.m | 164kg | 40000N | 2.20 |
| KA97R57DR80N4 | 382 | 0.75KW | 3.80r/min | 1720N.m | 164kg | 40000N | 2.50 |
| KA97R57DR80N4 | 305 | 0.75KW | 4.70r/min | 1390N.m | 164kg | 40000N | 3.10 |
| KA97R57DR80N4 | 258 | 0.75KW | 5.60r/min | 1170N.m | 164kg | 40000N | 3.70 |
| KA97R57DR80N4 | 232 | 0.75KW | 6.20r/min | 1050N.m | 164kg | 40000N | 4.10 |
| KA97R57DR80N4 | 199 | 0.75KW | 7.20r/min | 890N.m | 164kg | 40000N | 4.80 |
Ka97r57dve100lc4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KA97R57DVE100LC4 | 258 | 3KW | 5.60r/min | 4740N.m | 183kg | 40000N | 0.90 |
| KA97R57DVE100LC4 | 232 | 3KW | 6.30r/min | 4270N.m | 183kg | 40000N | 1.00 |
| KA97R57DVE100LC4 | 199 | 3KW | 7.30r/min | 3660N.m | 183kg | 40000N | 1.15 |
KA97R57DR80N4Speeding machine type:
K97r57dr80n4 bottom foot is equipped with tilt gears - umbrella gear reduction power
Ka97r57dr80n4 bottom foot hollow axis fitted with tilt gears - umbrella gear reduction power
The kv97br57dr80n4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh97br57dr80n4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf97r57dr80n4b5 installation of tilt gear - umbrella gear reduction power
Kaf97r57dr80n4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf97r57dr80n4b5franco-axis installation of tilt gears - umbrella gear-reducing power
Khf97r57dr80n4b5-franish axial axle locks fitted with tilt gears - umbrella gear-reducing motors
Ka97r57dr80n4 hollow axle tilt gear - umbrella gear reduction power
Kv97r57dr80n4 spaced axles with tilt gears - umbrella gear-reducing power
Kh97r57dr80n4 sky axe locked tilt gear - umbrella gear deviation engine
The kt97r57dr80n4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz97r57dr80n4b14 installation of tilt gear - umbrella gear reduction power
Kvz97r57dr80n4b14 flannel axle carvings installed with tilt gears - umbrella gear reduction power
Khz97r57dr80n4b14 franium axial axle locks fitted with tilt gears - umbrella gear reduction power

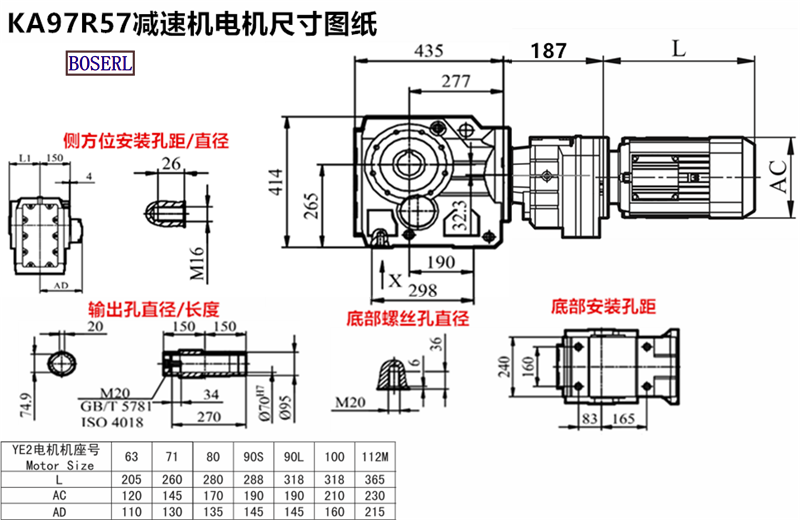

KA97R57DR80N4Induction Motor 3Ph motors installed size drawings
Ka97r57dr80n4 deviation power plant, three days in advanceThrough-hole shaft reducer
Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor
KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox
KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: The size of the 110kw power with the hollow axle brake ka97r57dr80n4kka97r57dve100lc4
- 上一条KA97R57DR71D4
- 下一条KA97R57DR90S4
