75kw power power with two out-axis brakes _ka97r57dt71s4_boserl moving ka97r57dre80mk4 production plant

KA97R57DT71S4Detailed Information

prevnext

KA97R57DT71S4

TEL：Email:[email protected]

详细信息

Keyword: how big a 75kw power is with two-axis brakes _ka97r57dt71s4_ka97r57dre80mk4

KA97R57DT71S4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA97R57DT71S4	3108	0.25KW	0.42r/min	4980N.m	158kg	39900N	0.85
KA97R57DT71S4	2757	0.25KW	0.47r/min	4350N.m	158kg	40000N	1.00
KA97R57DT71S4	2419	0.25KW	0.54r/min	3920N.m	158kg	40000N	1.10
KA97R57DT71S4	2123	0.25KW	0.61r/min	3420N.m	158kg	40000N	1.25
KA97R57DT71S4	1856	0.25KW	0.70r/min	3010N.m	158kg	40000N	1.40
KA97R57DT71S4	1625	0.25KW	0.80r/min	2570N.m	158kg	40000N	1.65
KA97R57DT71S4	1430	0.25KW	0.91r/min	2240N.m	158kg	40000N	1.90
KA97R57DT71S4	1261	0.25KW	1.00r/min	2050N.m	158kg	40000N	2.10
KA97R57DT71S4	1102	0.25KW	1.20r/min	1790N.m	158kg	40000N	2.40
KA97R57DT71S4	957	0.25KW	1.40r/min	1560N.m	158kg	40000N	2.70
KA97R57DT71S4	855	0.25KW	1.50r/min	1400N.m	158kg	40000N	3.10

Ka97r57dre80mk4 reduction motor parameters

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KA97R57DRE80MK4	1430	0.55KW	0.96r/min	4860N.m	163kg	40000N	0.90
KA97R57DRE80MK4	1261	0.55KW	1.10r/min	4360N.m	163kg	40000N	1.00
KA97R57DRE80MK4	1102	0.55KW	1.20r/min	3810N.m	163kg	40000N	1.15
KA97R57DRE80MK4	957	0.55KW	1.40r/min	3340N.m	163kg	40000N	1.30
KA97R57DRE80MK4	855	0.55KW	1.60r/min	2990N.m	163kg	40000N	1.45
KA97R57DRE80MK4	573	0.55KW	2.40r/min	1980N.m	163kg	40000N	2.20
KA97R57DRE80MK4	743	0.55KW	1.90r/min	2500N.m	163kg	40000N	1.70
KA97R57DRE80MK4	652	0.55KW	2.10r/min	2210N.m	163kg	40000N	1.95
KA97R57DRE80MK4	504	0.55KW	2.70r/min	1690N.m	163kg	40000N	2.50
KA97R57DRE80MK4	437	0.55KW	3.20r/min	1450N.m	163kg	40000N	3.00
KA97R57DRE80MK4	382	0.55KW	3.60r/min	1300N.m	163kg	40000N	3.30
KA97R57DRE80MK4	305	0.55KW	4.50r/min	1040N.m	163kg	40000N	4.10

KA97R57DT71S4Speeding machine type:

K97r57dt71s4 bottom foot is fitted with tilt gears - umbrella gear reduction power

Ka97r57dt71s4 foot hollow axis with tilt gears - umbrella gear reduction power

The kv97br57dt71s4 bottom foot larvae axis is equipped with tilt gears - umbrella gear-reducing power

Kh97br57dt71s4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor

Frf97r57dt71s4b5 installation of tilt gears - umbrella gear deceleration power

Kaf97r57dt71s4b5 french aerocardial axle is equipped with tilt gears - an umbrella gear reduction power

Kvf97r57dt71s4b5francocardiograms installed with tilt gears - umbrella gear-reducing motors

Khf97r57dt71s4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power

Ka97r57dt71s4 hollow axle tilt gears - umbrella gear reduction power

Kv97r57dt71s4 space cores fitted with tilt gears - umbrella gear reduction power

Kh97r57dt71s4 sky axes locked tilt gears - umbrella gear deviation engine

The kt97r57dt71s4 hollow axle is equipped with tilt gears - an umbrella gear decelerator

Kaz97r57dt71s4b14 installation of tilt gear - umbrella gear reduction power

Kvz97r57dt71s4b14francian cardiac axes installation of tilt gears - umbrella gear deviation engine

Khz97r57dt71s4b14 french axle locks with tilt gears - umbrella gear reduction power

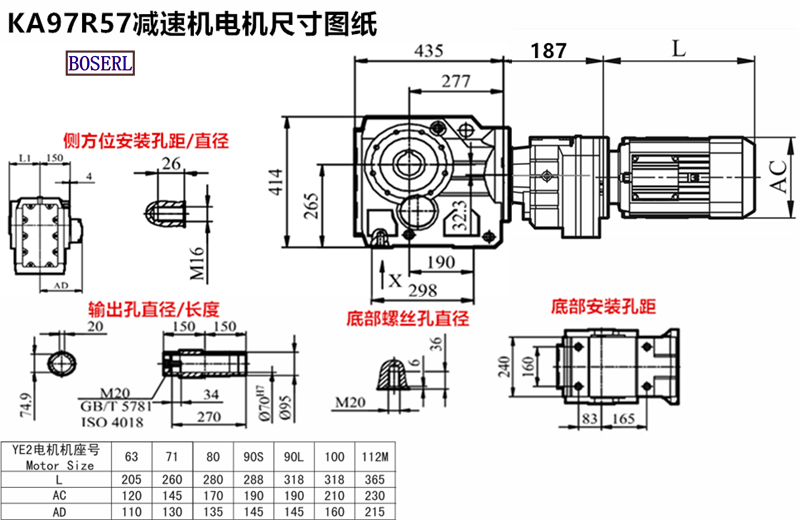

KA97R57DT71S4Induction Motor 3Ph motors installed size drawings

Ka97r57dt71s4 deviation electric power plant. please make an appointment three days in advanceThrough-hole shaft reducer

Through-hole shaft reducer,Hollow shaft reducer,Double output hole reducer Geared motor

KA37 Reducer, KA47 Reducer, KA57 Reducer, KA67 Reducer, KA77 Reducer, KA87 Reducer, KA97 Gear Reducer, KA107 Gear Reducer, KA127 Gear Reducer, KA157 Gear Reducer, KA167 Gear Reducer, KA187 Gear Reducer Helical bewel gearbox

KA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW

标签: 75kw power power with two out-axis brakes ka97r57dt71s4 ka97r57dre80mk4

上一条KA97R57DT80N4
下一条KA97R57DT63L4

Documentation related to this product / Related DownLoad

Product Document Name	Click to download
KA97R57DT71S4减速机样本
KA97R57DT71S4减速机三维图纸
