KAF107R77DM100L4Detailed Information
Keyword: what kind of screwdriver is 4kw
KAF107R77DM100L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF107R77DM100L4 | 461 | 3KW | 3.20r/min | 8320N.m | 321kg | 65000N | 0.95 |
| KAF107R77DM100L4 | 408 | 3KW | 3.60r/min | 7360N.m | 321kg | 65000N | 1.10 |
| KAF107R77DM100L4 | 364 | 3KW | 4.00r/min | 6600N.m | 321kg | 65000N | 1.20 |
| KAF107R77DM100L4 | 318 | 3KW | 4.60r/min | 5770N.m | 321kg | 65000N | 1.40 |
| KAF107R77DM100L4 | 286 | 3KW | 5.10r/min | 5190N.m | 321kg | 65000N | 1.55 |
| KAF107R77DM100L4 | 251 | 3KW | 5.80r/min | 4550N.m | 321kg | 65000N | 1.75 |
| KAF107R77DM100L4 | 222 | 3KW | 6.60r/min | 4000N.m | 321kg | 65000N | 2.00 |
| KAF107R77DM100L4 | 196 | 3KW | 7.40r/min | 3540N.m | 321kg | 65000N | 2.20 |
| KAF107R77DM100L4 | 174 | 3KW | 8.40r/min | 3170N.m | 321kg | 65000N | 2.30 |
| KAF107R77DM100L4 | 154 | 3KW | 9.40r/min | 2800N.m | 321kg | 65000N | 2.60 |
| KAF107R77DM100L4 | 140 | 3KW | 10.0r/min | 2540N.m | 321kg | 65000N | 2.80 |
Kaf107r77drs71ms4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF107R77DRS71MS4 | 6184 | 0.25KW | 0.21r/min | 9460N.m | 296kg | 65000N | 0.85 |
| KAF107R77DRS71MS4 | 5662 | 0.25KW | 0.23r/min | 8480N.m | 296kg | 65000N | 0.95 |
| KAF107R77DRS71MS4 | 5138 | 0.25KW | 0.25r/min | 7690N.m | 296kg | 65000N | 1.05 |
| KAF107R77DRS71MS4 | 4359 | 0.25KW | 0.30r/min | 6730N.m | 296kg | 65000N | 1.20 |
| KAF107R77DRS71MS4 | 3810 | 0.25KW | 0.34r/min | 5880N.m | 296kg | 65000N | 1.35 |
| KAF107R77DRS71MS4 | 3358 | 0.25KW | 0.39r/min | 5060N.m | 296kg | 65000N | 1.60 |
| KAF107R77DRS71MS4 | 2977 | 0.25KW | 0.44r/min | 4550N.m | 296kg | 65000N | 1.75 |
| KAF107R77DRS71MS4 | 2599 | 0.25KW | 0.50r/min | 3970N.m | 296kg | 65000N | 2.00 |
| KAF107R77DRS71MS4 | 2286 | 0.25KW | 0.57r/min | 3440N.m | 296kg | 65000N | 2.30 |
| KAF107R77DRS71MS4 | 1939 | 0.25KW | 0.67r/min | 2920N.m | 296kg | 65000N | 2.70 |
| KAF107R77DRS71MS4 | 1713 | 0.25KW | 0.76r/min | 2670N.m | 296kg | 65000N | 3.00 |
| KAF107R77DRS71MS4 | 1554 | 0.25KW | 0.84r/min | 2430N.m | 296kg | 65000N | 3.30 |
| KAF107R77DRS71MS4 | 1336 | 0.25KW | 0.97r/min | 2080N.m | 296kg | 65000N | 3.80 |
KAF107R77DM100L4Speeding machine type:
K107r77dm100l4 bottom foot fitted with tilt gears - umbrella gear reduction power
Ka107br77dm100l4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv107br77dm100l4 foot larvae axis is equipped with tilt gears - umbrella gear reduction power
Kh107 br77dm100l4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf 107r77dm 100l4b5 installation of tilt gears - umbrella gear reduction power
Kaf107r77dm100l4b5 installation of tilt gears - umbrella gear reduction power
Kvf107r77dm100l4b5franco-axis installation of tilt gear - umbrella gear deviation engine
Khf107r77dm100l4b5farland axle locks with tilt gears - umbrella gear-reducing power
Ka107r77dm100l4 hollow axle tilt gears - an umbrella gear deceleration power
The kv107r77dm100l4 spaced axle is equipped with tilt gears - umbrella gear reduction power
Kh107r77dm100l4 empty axle locks slashing gears - umbrella gear reduction power
Installation of tilt gears on kt107r77dm100l4 hollow axle - umbrella gear reduction power
Kaz107r77dm100l4b14 installation of tilt gears - umbrella gear reduction power
Kvz107r77dm100l4b14francocardial axis installation of tilt gears - umbrella gear reduction power
Dhz107r77dm100l4b14 french axle locks with tilt gears - umbrella gear reduction power

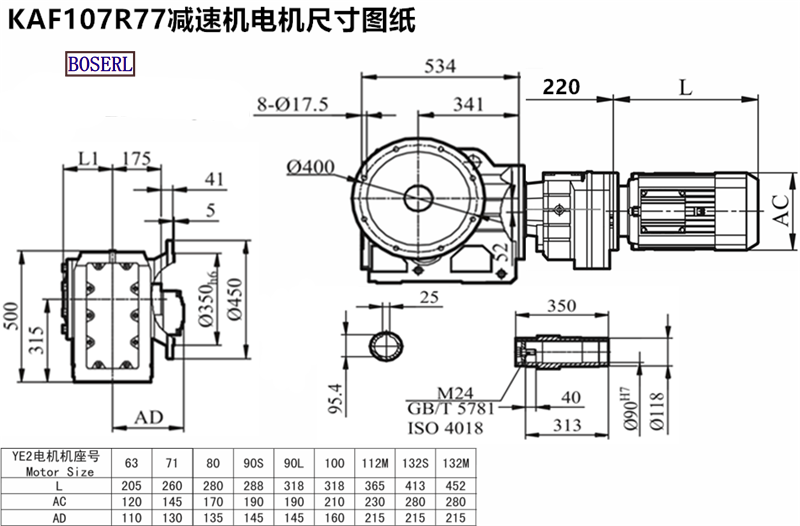

KAF107R77DM100L4Induction Motor 3Ph motors installed size drawings
Kaf107r77dm100l4 power plant, three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: What's the 4kw screwdriver speed-reducing machine? kaf107r77dm100l4kaf107r77drrs71ms4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF107R77DM100L4减速机样本 |
|
| KAF107R77DM100L4减速机三维图纸 |
|
