KAF107R77DM80MK4Detailed Information
Keyword: what kind of screwdriver is 3kw
KAF107R77DM80MK4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF107R77DM80MK4 | 2977 | 0.55KW | 0.46r/min | 9950N.m | 301kg | 65000N | 0.80 |
| KAF107R77DM80MK4 | 2599 | 0.55KW | 0.53r/min | 8690N.m | 301kg | 65000N | 0.90 |
| KAF107R77DM80MK4 | 2286 | 0.55KW | 0.60r/min | 7590N.m | 301kg | 65000N | 1.05 |
| KAF107R77DM80MK4 | 1939 | 0.55KW | 0.71r/min | 6440N.m | 301kg | 65000N | 1.25 |
| KAF107R77DM80MK4 | 1713 | 0.55KW | 0.81r/min | 5820N.m | 301kg | 65000N | 1.35 |
| KAF107R77DM80MK4 | 1554 | 0.55KW | 0.89r/min | 5280N.m | 301kg | 65000N | 1.50 |
| KAF107R77DM80MK4 | 1336 | 0.55KW | 1.00r/min | 4540N.m | 301kg | 65000N | 1.75 |
| KAF107R77DM80MK4 | 1166 | 0.55KW | 1.20r/min | 3960N.m | 301kg | 65000N | 2.00 |
| KAF107R77DM80MK4 | 1030 | 0.55KW | 1.30r/min | 3400N.m | 301kg | 65000N | 2.40 |
| KAF107R77DM80MK4 | 904 | 0.55KW | 1.50r/min | 2960N.m | 301kg | 65000N | 2.70 |
| KAF107R77DM80MK4 | 793 | 0.55KW | 1.70r/min | 2680N.m | 301kg | 65000N | 3.00 |
| KAF107R77DM80MK4 | 696 | 0.55KW | 2.00r/min | 2330N.m | 301kg | 65000N | 3.40 |
| KAF107R77DM80MK4 | 615 | 0.55KW | 2.20r/min | 2010N.m | 301kg | 65000N | 4.00 |
Kaf107r77drrs63ms4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF107R77DRS63MS4 | 14311 | 0.12KW | 0.10r/min | 8850N.m | 291.5kg | 65000N | 0.90 |
| KAF107R77DRS63MS4 | 12211 | 0.12KW | 0.11r/min | 7550N.m | 291.5kg | 65000N | 1.05 |
| KAF107R77DRS63MS4 | 10677 | 0.12KW | 0.13r/min | 6600N.m | 291.5kg | 65000N | 1.20 |
| KAF107R77DRS63MS4 | 9524 | 0.12KW | 0.14r/min | 5890N.m | 291.5kg | 65000N | 1.35 |
| KAF107R77DRS63MS4 | 8328 | 0.12KW | 0.17r/min | 5150N.m | 291.5kg | 65000N | 1.55 |
| KAF107R77DRS63MS4 | 7270 | 0.12KW | 0.19r/min | 4490N.m | 291.5kg | 65000N | 1.80 |
| KAF107R77DRS63MS4 | 6184 | 0.12KW | 0.22r/min | 3700N.m | 291.5kg | 65000N | 2.20 |
| KAF107R77DRS63MS4 | 5662 | 0.12KW | 0.24r/min | 3210N.m | 291.5kg | 65000N | 2.50 |
| KAF107R77DRS63MS4 | 5138 | 0.12KW | 0.27r/min | 2910N.m | 291.5kg | 65000N | 2.70 |
| KAF107R77DRS63MS4 | 4359 | 0.12KW | 0.32r/min | 2670N.m | 291.5kg | 65000N | 3.00 |
KAF107R77DM80MK4Speeding machine type:
K107r77dm80mk4 bottom foot installation of tilt gear - umbrella gear deviation engine
Ka107br77dm80mk4 foot hollow axle is fitted with tilt gears - umbrella gear reduction power
Kv107br77dm80mk4 bottom feet sky axes installation of tilt gear - umbrella gear deviation electric
Kh107br77dm80mk 4 bottom feet hole axle locked with tilt gear.Right-angle shaft reducer motor
Frf107r77dm80mk4b5 installation of tilt gears - umbrella gear reduction power
Kaf107r77dm80mk4b5 installation of tilt gears - umbrella gear reduction power
Frf 107r77dm80mk4b5 installation of tilt gears - umbrella gear reduction power
Khf107r77dm80mk4b5 franium axle locks fitted with tilt gears - umbrella gear reduction power
Ka107r77dm80mk4 hollow axle tilt gears - an umbrella gear reduction power
Kv107r77dm80mk4 space cores fitted with tilt gears - umbrella gear reduction power
Kh107r77dm80mk4 hollow axle locks the slant gears - the umbrella gear reduction power
The kt107r77dm80mk4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant
Kaz107r77dm80mk4b14 installation of tilt gear - umbrella gear-reducing power
Installation of tilt gear - umbrella gear deviation electrics on the franze space axis
Khz107r77dm80mk4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

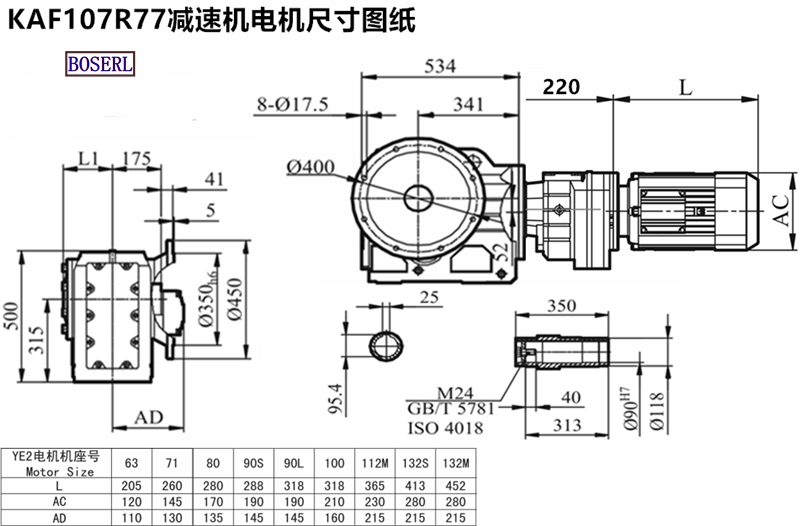

KAF107R77DM80MK4Induction Motor 3Ph motors installed size drawings
Kaf107r77dm80mk4 deviation power plant, three days' advance appointmentGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
