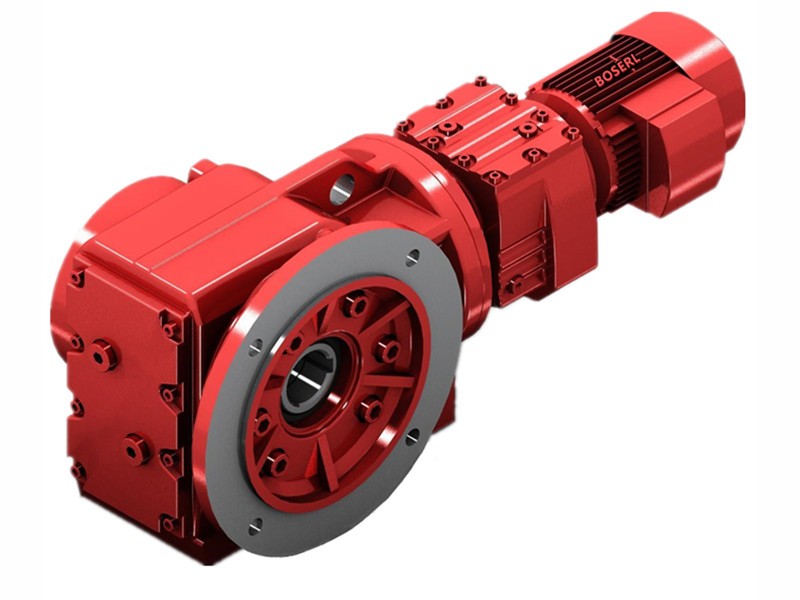

KAF107R77DM80N4Detailed Information
Keyword: 22kw's double-axis decelerator_kaf107r77dm80n4_kaf107r77drrs63l4
KAF107R77DM80N4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF107R77DM80N4 | 1713 | 0.75KW | 0.84r/min | 7710N.m | 302kg | 65000N | 1.05 |
| KAF107R77DM80N4 | 1554 | 0.75KW | 0.92r/min | 7000N.m | 302kg | 65000N | 1.15 |
| KAF107R77DM80N4 | 1336 | 0.75KW | 1.10r/min | 6020N.m | 302kg | 65000N | 1.35 |
| KAF107R77DM80N4 | 1166 | 0.75KW | 1.20r/min | 5250N.m | 302kg | 65000N | 1.50 |
| KAF107R77DM80N4 | 1030 | 0.75KW | 1.40r/min | 4540N.m | 302kg | 65000N | 1.75 |
| KAF107R77DM80N4 | 904 | 0.75KW | 1.60r/min | 3960N.m | 302kg | 65000N | 2.00 |
| KAF107R77DM80N4 | 793 | 0.75KW | 1.80r/min | 3560N.m | 302kg | 65000N | 2.20 |
| KAF107R77DM80N4 | 696 | 0.75KW | 2.10r/min | 3100N.m | 302kg | 65000N | 2.60 |
| KAF107R77DM80N4 | 615 | 0.75KW | 2.30r/min | 2690N.m | 302kg | 65000N | 3.00 |
KAF107R77DRS63L4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF107R77DRS63L4 | 8328 | 0.18KW | 0.16r/min | 8770N.m | 292kg | 65000N | 0.90 |
| KAF107R77DRS63L4 | 7270 | 0.18KW | 0.18r/min | 7660N.m | 292kg | 65000N | 1.05 |
| KAF107R77DRS63L4 | 6184 | 0.18KW | 0.21r/min | 6410N.m | 292kg | 65000N | 1.25 |
| KAF107R77DRS63L4 | 5662 | 0.18KW | 0.23r/min | 5690N.m | 292kg | 65000N | 1.40 |
| KAF107R77DRS63L4 | 5138 | 0.18KW | 0.26r/min | 5160N.m | 292kg | 65000N | 1.55 |
| KAF107R77DRS63L4 | 4359 | 0.18KW | 0.30r/min | 4580N.m | 292kg | 65000N | 1.75 |
| KAF107R77DRS63L4 | 3810 | 0.18KW | 0.35r/min | 4000N.m | 292kg | 65000N | 2.00 |
| KAF107R77DRS63L4 | 3358 | 0.18KW | 0.39r/min | 3400N.m | 292kg | 65000N | 2.40 |
| KAF107R77DRS63L4 | 2977 | 0.18KW | 0.44r/min | 3080N.m | 292kg | 65000N | 2.60 |
| KAF107R77DRS63L4 | 2599 | 0.18KW | 0.51r/min | 2690N.m | 292kg | 65000N | 3.00 |
| KAF107R77DRS63L4 | 2286 | 0.18KW | 0.58r/min | 2310N.m | 292kg | 65000N | 3.40 |
KAF107R77DM80N4Speeding machine type:
K107r77dm80n4 bottom foot was fitted with tilt gears - an umbrella gear decelerator
Ka107r77dm80n4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv107br77dm80n4 foot larvae axis fitted with tilt gears - umbrella gear-reducing power
Kh107 br77dm80n4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf107r77dm80n4b5 installation of tilt gears - umbrella gear reduction power
Kaf107r77dm80n4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf107r77dm80n4b5-franco-axes installation of tilt gears - umbrella gear-reducing power
Khf107r77dm80n4b5 french axle locks fitted with tilt gears - umbrella gear reduction power
Ka107r77dm80n4 hollow axial tilt gears - an umbrella gear deceleration power
Kv107r77dm80n4 space cores equipped with tilt gears - umbrella gear reduction power
Kh107r77dm80n4 empty axle locks slashing gears - umbrella gear reduction power
The kt107r77dm80n4 hollow axle is equipped with tilt gears - an umbrella gear reduction power
Kaz107r77dm80n4b14 installation of tilt gear - umbrella gear reduction power
Kvz107r77dm80n4b14 installation of tilt gears - umbrella gear deviation engine
Dhz107r77dm80n4b14 french axle locks fitted with tilt gears - umbrella gear reduction power
KAF107R77DM80N4Induction Motor 3Ph motors installed size drawings
Kaf107r77dm80n4 power deviation plant, three days' advance appointmentGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
