KAF107R77DR71D4Detailed Information
Keyword: what kind of screwdriver is 90kw
KAF107R77DR71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF107R77DR71D4 | 3810 | 0.37KW | 0.36r/min | 8420N.m | 296.5kg | 65000N | 0.95 |
| KAF107R77DR71D4 | 3358 | 0.37KW | 0.41r/min | 7290N.m | 296.5kg | 65000N | 1.10 |
| KAF107R77DR71D4 | 2977 | 0.37KW | 0.46r/min | 6530N.m | 296.5kg | 65000N | 1.20 |
| KAF107R77DR71D4 | 2599 | 0.37KW | 0.53r/min | 5700N.m | 296.5kg | 65000N | 1.40 |
| KAF107R77DR71D4 | 2286 | 0.37KW | 0.60r/min | 4960N.m | 296.5kg | 65000N | 1.60 |
| KAF107R77DR71D4 | 1939 | 0.37KW | 0.71r/min | 4210N.m | 296.5kg | 65000N | 1.90 |
| KAF107R77DR71D4 | 1713 | 0.37KW | 0.81r/min | 3830N.m | 296.5kg | 65000N | 2.10 |
| KAF107R77DR71D4 | 1554 | 0.37KW | 0.89r/min | 3470N.m | 296.5kg | 65000N | 2.30 |
| KAF107R77DR71D4 | 1336 | 0.37KW | 1.00r/min | 2990N.m | 296.5kg | 65000N | 2.70 |
| KAF107R77DR71D4 | 1166 | 0.37KW | 1.20r/min | 2600N.m | 296.5kg | 65000N | 3.10 |
Kaf107r77dve63ms4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF107R77DVE63MS4 | 14311 | 0.12KW | 0.10r/min | 8850N.m | 291.5kg | 65000N | 0.90 |
| KAF107R77DVE63MS4 | 12211 | 0.12KW | 0.11r/min | 7550N.m | 291.5kg | 65000N | 1.05 |
| KAF107R77DVE63MS4 | 10677 | 0.12KW | 0.13r/min | 6600N.m | 291.5kg | 65000N | 1.20 |
| KAF107R77DVE63MS4 | 9524 | 0.12KW | 0.14r/min | 5890N.m | 291.5kg | 65000N | 1.35 |
| KAF107R77DVE63MS4 | 8328 | 0.12KW | 0.17r/min | 5150N.m | 291.5kg | 65000N | 1.55 |
| KAF107R77DVE63MS4 | 7270 | 0.12KW | 0.19r/min | 4490N.m | 291.5kg | 65000N | 1.80 |
| KAF107R77DVE63MS4 | 6184 | 0.12KW | 0.22r/min | 3700N.m | 291.5kg | 65000N | 2.20 |
| KAF107R77DVE63MS4 | 5662 | 0.12KW | 0.24r/min | 3210N.m | 291.5kg | 65000N | 2.50 |
| KAF107R77DVE63MS4 | 5138 | 0.12KW | 0.27r/min | 2910N.m | 291.5kg | 65000N | 2.70 |
| KAF107R77DVE63MS4 | 4359 | 0.12KW | 0.32r/min | 2670N.m | 291.5kg | 65000N | 3.00 |
KAF107R77DR71D4Speeding machine type:
K107r77dr71d4 bottom foot fitted with tilt gears - umbrella gear reduction power
Ka107br77dr71d4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv107br77dr71d4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh107br77dr71d4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf 107r77dr71d4b5 installation of tilt gear - umbrella gear deceleration power
Kaf107r77dr71d4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf107r77dr71d4b5francocardiograms fitted with tilt gears - umbrella gear reduction power
Khf107r77dr71d4b5farland axial axle locks fitted with tilt gears - umbrella gear-reducing motors
Ka107r77dr71d4 hollow axle tilt gears - umbrella gear reduction power
The kv107r77dr71d4 cardiac axle is equipped with tilt gears - an umbrella gear decelerator
Kh107r77dr71d4 empty axle locks the wheel slashing gears - the umbrella gear reduction power
Installation of tilt gears on kt107r77dr71d4 hollow axle - umbrella gear reduction power
Kaz107r77dr71d4b14 installation of tilt gear - umbrella gear reduction power
Kvz107r77dr77d4d4b14 franco-key installation of tilt gear - umbrella gear deviation engine
Khz107r77dr71d4b14 french axle locks with tilt gears - umbrella gear reduction power

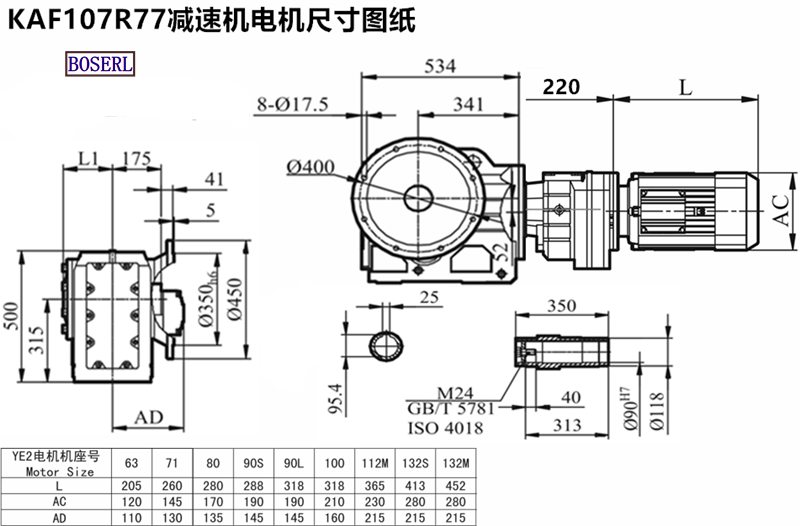

KAF107R77DR71D4Induction Motor 3Ph motors installed size drawings
Kaf107r77dr71d4 deviation power plant. please make an appointment three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: What kind of screwdriver is kaf107r77d1d4kaf107r77dve63ms4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF107R77DR71D4减速机样本 |
|
| KAF107R77DR71D4减速机三维图纸 |
|
