KAF107R77DR80MK4Detailed Information
Keyword: 3kw's arctic axle decelerator_kaf107r77dr80mk4_kaf107r77dve100ls4
KAF107R77DR80MK4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF107R77DR80K4 | 2977 | 0.55KW | 0.46r/min | 9950N.m | 301kg | 65000N | 0.80 |
| KAF107R77DR80K4 | 2599 | 0.55KW | 0.53r/min | 8690N.m | 301kg | 65000N | 0.90 |
| KAF107R77DR80K4 | 2286 | 0.55KW | 0.60r/min | 7590N.m | 301kg | 65000N | 1.05 |
| KAF107R77DR80K4 | 1939 | 0.55KW | 0.71r/min | 6440N.m | 301kg | 65000N | 1.25 |
| KAF107R77DR80K4 | 1713 | 0.55KW | 0.81r/min | 5820N.m | 301kg | 65000N | 1.35 |
| KAF107R77DR80K4 | 1554 | 0.55KW | 0.89r/min | 5280N.m | 301kg | 65000N | 1.50 |
| KAF107R77DR80K4 | 1336 | 0.55KW | 1.00r/min | 4540N.m | 301kg | 65000N | 1.75 |
| KAF107R77DR80K4 | 1166 | 0.55KW | 1.20r/min | 3960N.m | 301kg | 65000N | 2.00 |
| KAF107R77DR80K4 | 1030 | 0.55KW | 1.30r/min | 3400N.m | 301kg | 65000N | 2.40 |
| KAF107R77DR80K4 | 904 | 0.55KW | 1.50r/min | 2960N.m | 301kg | 65000N | 2.70 |
| KAF107R77DR80K4 | 793 | 0.55KW | 1.70r/min | 2680N.m | 301kg | 65000N | 3.00 |
| KAF107R77DR80K4 | 696 | 0.55KW | 2.00r/min | 2330N.m | 301kg | 65000N | 3.40 |
| KAF107R77DR80K4 | 615 | 0.55KW | 2.20r/min | 2010N.m | 301kg | 65000N | 4.00 |
Kaf107r77dve100ls4 deviation electric parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF107R77DVE100LS4 | 615 | 2.2KW | 2.30r/min | 8300N.m | 318kg | 65000N | 0.95 |
| KAF107R77DVE100LS4 | 522 | 2.2KW | 2.70r/min | 7040N.m | 318kg | 65000N | 1.15 |
| KAF107R77DVE100LS4 | 461 | 2.2KW | 3.10r/min | 6190N.m | 318kg | 65000N | 1.30 |
| KAF107R77DVE100LS4 | 408 | 2.2KW | 3.50r/min | 5480N.m | 318kg | 65000N | 1.45 |
| KAF107R77DVE100LS4 | 364 | 2.2KW | 3.90r/min | 4920N.m | 318kg | 65000N | 1.60 |
| KAF107R77DVE100LS4 | 318 | 2.2KW | 4.50r/min | 4300N.m | 318kg | 65000N | 1.85 |
| KAF107R77DVE100LS4 | 286 | 2.2KW | 5.00r/min | 3870N.m | 318kg | 65000N | 2.10 |
| KAF107R77DVE100LS4 | 251 | 2.2KW | 5.70r/min | 3390N.m | 318kg | 65000N | 2.40 |

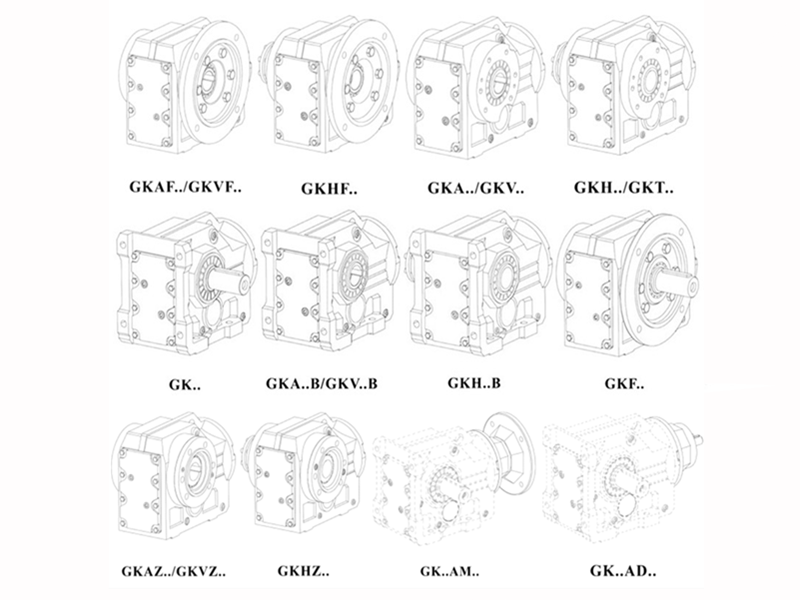

KAF107R77DR80MK4Speeding machine type:
K107r77dr80mk4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka107br77dr80mk4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv107br77dr80mk4 bottom foot larvae axis fitted with tilt gears - umbrella gear reduction power
Kh107 br77dr80mk 4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf107r77dr80mk4b5 installation of tilt gears - umbrella gear reduction power
Kaf107r77dr80mk4b5 installation of tilt gear - umbrella gear reduction power
Frf 107r 77dr80mk4b5 installation of tilt gears - umbrella gear reduction power
Khf107r77dr80mk4b5farland axial axle locks fitted with tilt gears - umbrella gear-reducing motors
Ka107r77dr80mk4 hollow axle tilt gears - umbrella gear deceleration power
Kv107r77dr80mk4 spaced axles with tilt gears - umbrella gear reduction power
Kh107r77dr80mk4 empty axle locks the slant gears - an umbrella gear-reducing motor
Installation of tilt gears on kt107r77dr80mk4 empty-centre axis - umbrella gear reduction power
Kaz107r77dr80mk4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear deviation electrics on the frf z107r77dr80mk4b14
Khz107r77dr80mk4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

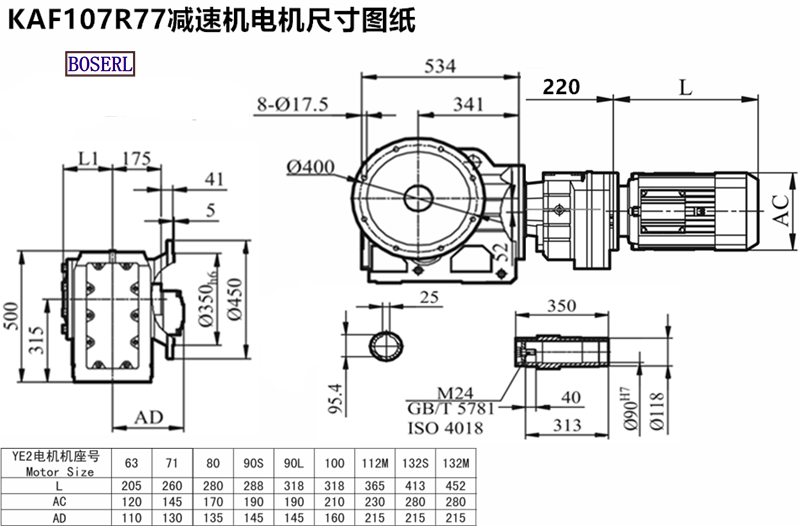

KAF107R77DR80MK4Induction Motor 3Ph motors installed size drawings
Kaf107r77dr80mk4 deviation power plant, three days' appointmentGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
