KAF127R77DM80K4Detailed Information
Keyword: 7. 5 kw's parasol gear-reducing machine_kaf127r77dm80k4_kaf127r77drrs100ls4
KAF127R77DM80K4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DM80K4 | 4423 | 0.55KW | 0.31r/min | 14600N.m | 431kg | 76600N | 0.90 |
| KAF127R77DM80K4 | 3889 | 0.55KW | 0.35r/min | 12800N.m | 431kg | 79200N | 1.00 |
| KAF127R77DM80K4 | 3311 | 0.55KW | 0.42r/min | 10800N.m | 431kg | 80300N | 1.20 |
| KAF127R77DM80K4 | 3009 | 0.55KW | 0.46r/min | 9840N.m | 431kg | 80700N | 1.30 |
| KAF127R77DM80K4 | 2607 | 0.55KW | 0.53r/min | 8450N.m | 431kg | 81300N | 1.55 |
| KAF127R77DM80K4 | 1926 | 0.55KW | 0.72r/min | 6520N.m | 431kg | 81900N | 2.00 |
| KAF127R77DM80K4 | 1757 | 0.55KW | 0.79r/min | 5940N.m | 431kg | 82100N | 2.20 |
| KAF127R77DM80K4 | 1541 | 0.55KW | 0.90r/min | 5180N.m | 431kg | 82300N | 2.50 |
| KAF127R77DM80K4 | 1342 | 0.55KW | 1.00r/min | 4540N.m | 431kg | 82400N | 2.90 |
| KAF127R77DM80K4 | 1177 | 0.55KW | 1.20r/min | 3950N.m | 431kg | 82500N | 3.30 |
| KAF127R77DM80K4 | 1025 | 0.55KW | 1.40r/min | 3460N.m | 431kg | 82600N | 3.80 |
Kaf127r77drrs100ls4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DRS100LS4 | 1025 | 2.2KW | 1.40r/min | 13900N.m | 448kg | 78100N | 0.95 |
| KAF127R77DRS100LS4 | 899 | 2.2KW | 1.60r/min | 12200N.m | 448kg | 79600N | 1.05 |
| KAF127R77DRS100LS4 | 790 | 2.2KW | 1.80r/min | 10600N.m | 448kg | 80400N | 1.20 |
| KAF127R77DRS100LS4 | 704 | 2.2KW | 2.00r/min | 9530N.m | 448kg | 80900N | 1.35 |
| KAF127R77DRS100LS4 | 610 | 2.2KW | 2.30r/min | 8230N.m | 448kg | 81400N | 1.60 |
| KAF127R77DRS100LS4 | 549 | 2.2KW | 2.60r/min | 7420N.m | 448kg | 81600N | 1.75 |
| KAF127R77DRS100LS4 | 477 | 2.2KW | 3.00r/min | 6410N.m | 448kg | 81900N | 2.00 |
| KAF127R77DRS100LS4 | 418 | 2.2KW | 3.40r/min | 5650N.m | 448kg | 82100N | 2.30 |
KAF127R77DM80K4Speeding machine type:
K127r77dm80k4 bottom foot installation of tilt gear - umbrella gear deviation engine
Ka127br77dm80k bottom-foot hollow axis fitted with tilt gears - umbrella gear reduction power
Kv127 br77dm80k4 foot larvae axis installed with tilt gears - umbrella gear reduction power
The kh127 br77dm80k bottom foot cortex locks with tilt gears.Right-angle shaft reducer motor
Frf127r77dm80k4b5 is equipped with tilt gears - an umbrella gear reduction power
Kaf127r77dm80k4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf127r77dm80k4b5franco-axis installation of tilt gear - umbrella gear deviation engine
Khf127r77dm80k4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka127r77dm80k4 hollow axle tilt gears - umbrella gear reduction power
Kv127r77dm80k4 space cores fitted with tilt gears - umbrella gear-reducing power
Kh127r77dm80k4 sky axes locked tilt gears - umbrella gear deviation engine
Installation of tilt gears on the kt127r77dm80k4 hollow axle - an umbrella gear reduction power
Kaz127r77dm80k4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors on the flannel axis kvz127r77dm80k4b14
Khz127r77dm80k4b14 french axle locks with tilt gears - umbrella gear-reducing power

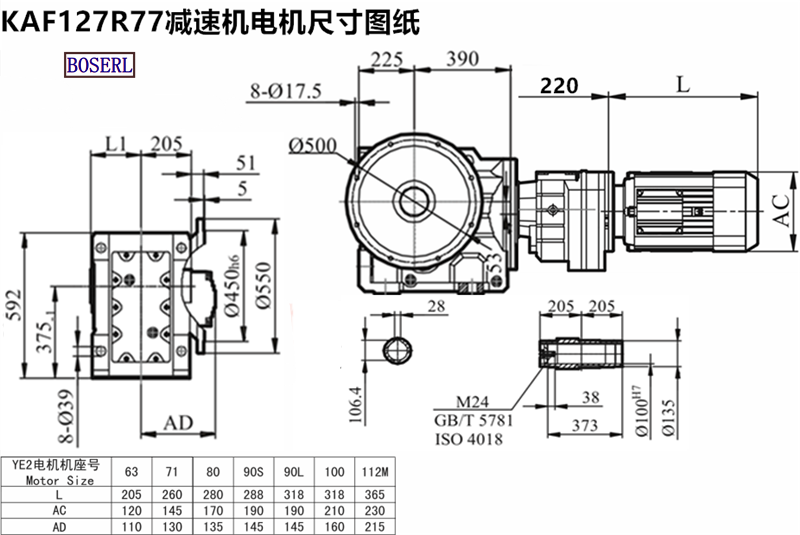

KAF127R77DM80K4Induction Motor 3Ph motors installed size drawings
Kaf127r77dm80k4 power deviation plant. please make an appointment three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
