KAF127R77DR63M4Detailed Information
Keywords: what kind of propeller gear brakes is 55kw
KAF127R77DR63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DR63M4 | 17550 | 0.12KW | 0.08r/min | 10800N.m | 421.5kg | 80300N | 1.20 |
| KAF127R77DR63M4 | 16006 | 0.12KW | 0.09r/min | 9890N.m | 421.5kg | 80700N | 1.30 |
| KAF127R77DR63M4 | 14975 | 0.12KW | 0.09r/min | 9260N.m | 421.5kg | 81000N | 1 .40 |
| KAF127R77DR63M4 | 12440 | 0.12KW | 0.11r/min | 7690N.m | 421.5kg | 81600N | 1.70 |
| KAF127R77DR63M4 | 10915 | 0.12KW | 0.13r/min | 6750N.m | 421.5kg | 81900N | 1.95 |
| KAF127R77DR63M4 | 9819 | 0.12KW | 0.14r/min | 6070N.m | 421.5kg | 82000N | 2.10 |
| KAF127R77DR63M4 | 8443 | 0.12KW | 0.16r/min | 5180N.m | 421.5kg | 82300N | 2.50 |
| KAF127R77DR63M4 | 7482 | 0.12KW | 0.18r/min | 4620N.m | 421.5kg | 82400N | 2.80 |
KAF127R77DVE80M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DVE80M4 | 3311 | 0.75KW | 0.43r/min | 14500N.m | 432kg | 77000N | 0.90 |
| KAF127R77DVE80M4 | 3009 | 0.75KW | 0.48r/min | 13100N.m | 432kg | 79100N | 1.00 |
| KAF127R77DVE80M4 | 2607 | 0.75KW | 0.55r/min | 11200N.m | 432kg | 80100N | 1.15 |
| KAF127R77DVE80M4 | 1926 | 0.75KW | 0.74r/min | 8650N.m | 432kg | 81200N | 1.50 |
| KAF127R77DVE80M4 | 1757 | 0.75KW | 0.82r/min | 7880N.m | 432kg | 81500N | 1.65 |
| KAF127R77DVE80M4 | 1541 | 0.75KW | 0.93r/min | 6880N.m | 432kg | 81800N | 1.90 |
| KAF127R77DVE80M4 | 1342 | 0.75KW | 1.10r/min | 6020N.m | 432kg | 82100N | 2.20 |
| KAF127R77DVE80M4 | 1177 | 0.75KW | 1.20r/min | 5250N.m | 432kg | 82200N | 2.50 |
| KAF127R77DVE80M4 | 1025 | 0.75KW | 1.40r/min | 4600N.m | 432kg | 82400N | 2.80 |
| KAF127R77DVE80M4 | 899 | 0.75KW | 1.60r/min | 4010N.m | 432kg | 82500N | 3.20 |
KAF127R77DR63M4Speeding machine type:
K127r77dr63m4 bottom foot fitted with tilt gears - umbrella gear reduction power
Ka127br77dr63m4 foot hollow axis fitted with tilt gears - umbrella gear-reducing power
Kv127br77dr63m4 bottom foot larvae axis fitted with tilt gears - umbrella gear reduction power
Kh127 br77dr63m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf 127r77dr63m4b5 installation of tilt gears - umbrella gear reduction power
Kaf127r77dr63m4b5 french aerocardial axis installation of tilt gears - umbrella gear reduction power
Kvf127r77dr63m4b5-franco cardiac axe installation of tilt gears - umbrella gear deviation engine
Khf127r77dr63m4b5-franish axle locks fitted with tilt gears - umbrella gear-reducing power
Ka127r77dr63m4 hollow axle tilt gears - an umbrella gear reduction power
Kv127r77dr63m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh127r77dr63m4 hollow axle locks slashing gears - umbrella gear deceleration power
The kt127r77dr63m4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz127r77dr63m4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r77dr63m4b14 installation of slashing gears - umbrella gear reduction power
Khz127r77dr63m4b14 franium axial axle locks fitted with tilt gears - umbrella gear reduction power

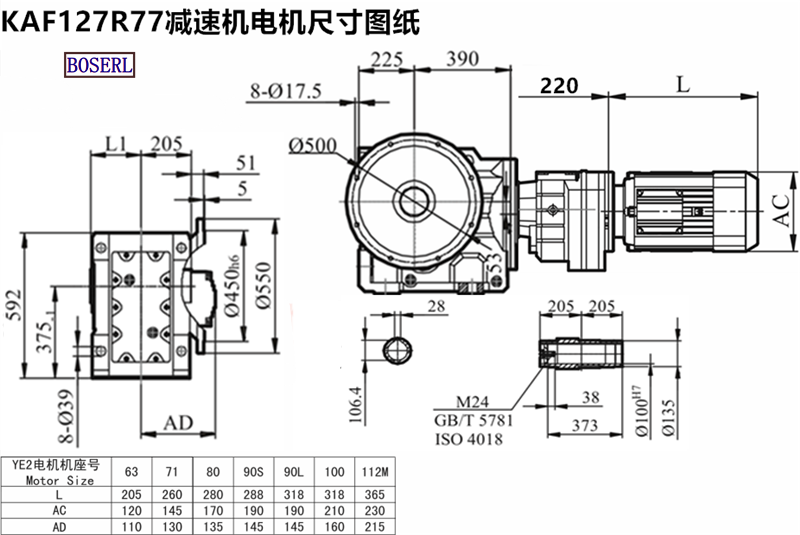

KAF127R77DR63M4Induction Motor 3Ph motors installed size drawings
Kaf127r77dr63m4 deviation power plant, three days' appointmentGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 55kw. What's an umbrella gear-reducing machine? kaf127r77dr63m4kaf127r77dve80m4
