KAF127R77DR71M4Detailed Information
Keyword: what kind of propeller gear-retarder is 3kw
KAF127R77DR71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DR71M4 | 7482 | 0.37KW | 0.18r/min | 16500N.m | 426.5kg | 72700N | 0.80 |
| KAF127R77DR71M4 | 6565 | 0.37KW | 0.21r/min | 14500N.m | 426.5kg | 76900N | 0.90 |
| KAF127R77DR71M4 | 5804 | 0.37KW | 0.24r/min | 12600N.m | 426.5kg | 79400N | 1.05 |
| KAF127R77DR71M4 | 5027 | 0.37KW | 0.27r/min | 11000N.m | 426.5kg | 80200N | 1.20 |
| KAF127R77DR71M4 | 4423 | 0.37KW | 0.31r/min | 9610N.m | 426.5kg | 80800N | 1.35 |
| KAF127R77DR71M4 | 3889 | 0.37KW | 0.35r/min | 8410N.m | 426.5kg | 81300N | 1.55 |
| KAF127R77DR71M4 | 3311 | 0.37KW | 0.42r/min | 7080N.m | 426.5kg | 81800N | 1.85 |
| KAF127R77DR71M4 | 1926 | 0.37KW | 0.72r/min | 4280N.m | 426.5kg | 82400N | 3.00 |
| KAF127R77DR71M4 | 1757 | 0.37KW | 0.79r/min | 3900N.m | 426.5kg | 82500N | 3.30 |
| KAF127R77DR71M4 | 1541 | 0.37KW | 0.90r/min | 3390N.m | 426.5kg | 82600N | 3.80 |
Kaf127r77dve90m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DVE90M4 | 1926 | 1.1KW | 0.74r/min | 12900N.m | 436kg | 79200N | 1.00 |
| KAF127R77DVE90M4 | 1757 | 1.1KW | 0.81r/min | 11800N.m | 436kg | 79800N | 1.10 |
| KAF127R77DVE90M4 | 1541 | 1.1KW | 0.92r/min | 10300N.m | 436kg | 80500N | 1.25 |
| KAF127R77DVE90M4 | 1342 | 1.1KW | 1.10r/min | 9030N.m | 436kg | 81100N | 1.45 |
| KAF127R77DVE90M4 | 1177 | 1.1KW | 1.20r/min | 7900N.m | 436kg | 81500N | 1.65 |
| KAF127R77DVE90M4 | 1025 | 1.1KW | 1.40r/min | 6900N.m | 436kg | 81800N | 1.90 |
| KAF127R77DVE90M4 | 899 | 1.1KW | 1.60r/min | 6030N.m | 436kg | 82000N | 2.20 |
| KAF127R77DVE90M4 | 790 | 1.1KW | 1.80r/min | 5190N.m | 436kg | 82300N | 2.50 |
| KAF127R77DVE90M4 | 704 | 1.1KW | 2.00r/min | 4700N.m | 436kg | 82400N | 2.80 |
| KAF127R77DVE90M4 | 610 | 1.1KW | 2.30r/min | 4040N.m | 436kg | 82500N | 3.20 |
| KAF127R77DVE90M4 | 549 | 1.1KW | 2.60r/min | 3650N.m | 436kg | 82600N | 3.60 |
| KAF127R77DVE90M4 | 477 | 1.1KW | 3.00r/min | 3140N.m | 436kg | 82600N | 4.10 |
KAF127R77DR71M4Speeding machine type:
K127r77dr71m4 bottom foot fitted with tilt gears - umbrella gear reduction power
Ka127br77dr71m4 bottom foot hollow axis fitted with tilt gears - umbrella gear-reducing power
Kv127 br77dr71m4 bottom feet axis installation of tilt gear - umbrella gear deviation engine
Kh127 br77dr71m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf127r77dr71m4b5 installation of tilt gear - umbrella gear reduction power
Kaf127r77dr71m4b5 french aerocentric axles installation of tilt gears - umbrella gear-reducing electric power
Kvf127r77dr71m4b5francocardimetric axis installed with tilt gears - umbrella gear-reducing power
Khf127r77dr71m4b5franish axle locks fitted with tilt gears - umbrella gear-reducing power
Ka127r77dr71m4 hollow axle tilt gears - an umbrella gear decelerator power plant
Kv127r77dr71m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh127r77dr71m4 hollow axle locks slashing gears - umbrella gear reduction power
The kt127r77dr71m4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant
Kaz127r77dr71m4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r77dr71m4b14 francoons installed slash gears - umbrella gear-reducing electric power
Dhz127r77dr71m4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

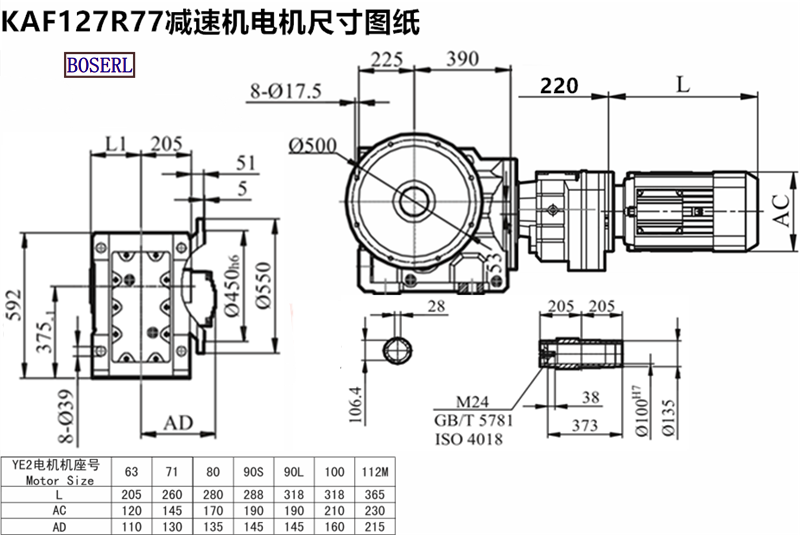

KAF127R77DR71M4Induction Motor 3Ph motors installed size drawings
Kaf127r77dr71m4 deviation power plant, three days' reservationGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: What's a 3kw screwdriver gear-reducing machine
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF127R77DR71M4减速机样本 |
|
| KAF127R77DR71M4减速机三维图纸 |
|
