KAF127R77DR90M4Detailed Information
Keyword: 75kw using an umbrella gear brake _kaf127r77dr90m4_kaf127r77dve112m4
KAF127R77DR90M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DR90M4 | 1926 | 1.1KW | 0.74r/min | 12900N.m | 436kg | 79200N | 1.00 |
| KAF127R77DR90M4 | 1757 | 1.1KW | 0.81r/min | 11800N.m | 436kg | 79800N | 1.10 |
| KAF127R77DR90M4 | 1541 | 1.1KW | 0.92r/min | 10300N.m | 436kg | 80500N | 1.25 |
| KAF127R77DR90M4 | 1342 | 1.1KW | 1.10r/min | 9030N.m | 436kg | 81100N | 1.45 |
| KAF127R77DR90M4 | 1177 | 1.1KW | 1.20r/min | 7900N.m | 436kg | 81500N | 1.65 |
| KAF127R77DR90M4 | 1025 | 1.1KW | 1.40r/min | 6900N.m | 436kg | 81800N | 1.90 |
| KAF127R77DR90M4 | 899 | 1.1KW | 1.60r/min | 6030N.m | 436kg | 82000N | 2.20 |
| KAF127R77DR90M4 | 790 | 1.1KW | 1.80r/min | 5190N.m | 436kg | 82300N | 2.50 |
| KAF127R77DR90M4 | 704 | 1.1KW | 2.00r/min | 4700N.m | 436kg | 82400N | 2.80 |
| KAF127R77DR90M4 | 610 | 1.1KW | 2.30r/min | 4040N.m | 436kg | 82500N | 3.20 |
| KAF127R77DR90M4 | 549 | 1.1KW | 2.60r/min | 3650N.m | 436kg | 82600N | 3.60 |
| KAF127R77DR90M4 | 477 | 1.1KW | 3.00r/min | 3140N.m | 436kg | 82600N | 4.10 |
Kaf127r77dve112m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DVE112M4 | 610 | 4KW | 2.40r/min | 14700N.m | 462kg | 76500N | 0.90 |
| KAF127R77DVE112M4 | 549 | 4KW | 2.70r/min | 13200N.m | 462kg | 79000N | 1.00 |
| KAF127R77DVE112M4 | 477 | 4KW | 3.10r/min | 11500N.m | 462kg | 80000N | 1.15 |
| KAF127R77DVE112M4 | 418 | 4KW | 3.50r/min | 10100N.m | 462kg | 80600N | 1.30 |
KAF127R77DR90M4Speeding machine type:
K127r77dr90m4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka127br77dr90m4 foot hollow axis with tilt gear - umbrella gear-reducing power
The kv127 br77dr90m4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh127 br77dr90m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf127r77dr90m4b5 installation of tilt gears - umbrella gear reduction power
Kaf127r77dr90m4b5 franium air heart axes installation of tilt gear - umbrella gear deviation power
Kvf127r77dr90m4b5-franco cardiac axe installation of tilt gears - umbrella gear deviation engine
Khf127r77dr90m4b5farland axle locks equipped with tilt gears - umbrella gear-reducing power
Ka127r77dr90m4 hollow axle tilt gears - umbrella gear reduction power
Kv127r77dr90m4 spaced axles with tilt gears - an umbrella gear decelerator
Kh127r77dr90m4 empty axle locks slashing gears - umbrella gear decelerators
Installation of tilt gears on the kt127r77dr90m4 hollow axle - an umbrella gear decelerator
Kaz127r77dr90m4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r77dr90m4b14 installation of tilt gears - umbrella gear deviation electrics
Khz127r77dr90m4b14 franium axial axle locks fitted with tilt gears - umbrella gear reduction power

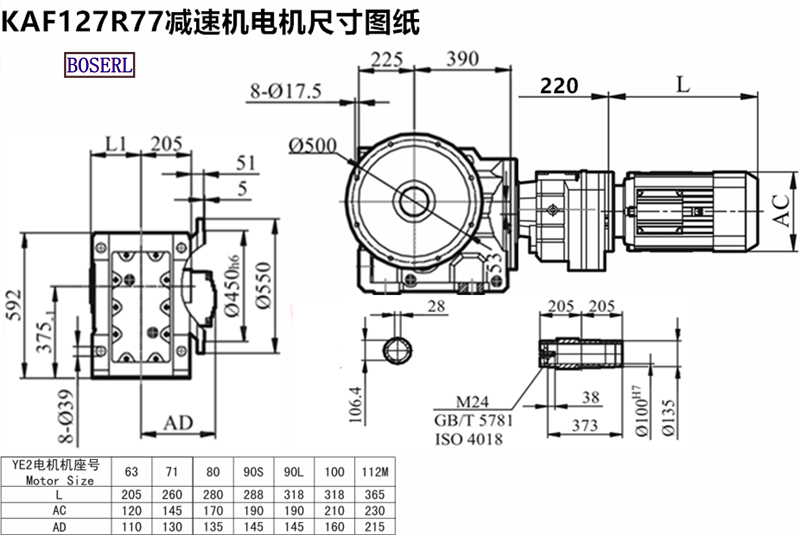

KAF127R77DR90M4Induction Motor 3Ph motors installed size drawings
Kaf127r77dr90m4 deviation power plant, three days' appointmentGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
