KAF127R77DT112M4Detailed Information
Keyword: 45kw with what turret gear brake _kaf127r77dt112m4_kaf127r77dre63m4
KAF127R77DT112M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DT112M4 | 610 | 4KW | 2.40r/min | 14700N.m | 462kg | 76500N | 0.90 |
| KAF127R77DT112M4 | 549 | 4KW | 2.70r/min | 13200N.m | 462kg | 79000N | 1.00 |
| KAF127R77DT112M4 | 477 | 4KW | 3.10r/min | 11500N.m | 462kg | 80000N | 1.15 |
| KAF127R77DT112M4 | 418 | 4KW | 3.50r/min | 10100N.m | 462kg | 80600N | 1.30 |
KAF127R77DRE63M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DRE63M4 | 17550 | 0.12KW | 0.08r/min | 10800N.m | 421.5kg | 80300N | 1.20 |
| KAF127R77DRE63M4 | 16006 | 0.12KW | 0.09r/min | 9890N.m | 421.5kg | 80700N | 1.30 |
| KAF127R77DRE63M4 | 14975 | 0.12KW | 0.09r/min | 9260N.m | 421.5kg | 81000N | 1 .40 |
| KAF127R77DRE63M4 | 12440 | 0.12KW | 0.11r/min | 7690N.m | 421.5kg | 81600N | 1.70 |
| KAF127R77DRE63M4 | 10915 | 0.12KW | 0.13r/min | 6750N.m | 421.5kg | 81900N | 1.95 |
| KAF127R77DRE63M4 | 9819 | 0.12KW | 0.14r/min | 6070N.m | 421.5kg | 82000N | 2.10 |
| KAF127R77DRE63M4 | 8443 | 0.12KW | 0.16r/min | 5180N.m | 421.5kg | 82300N | 2.50 |
| KAF127R77DRE63M4 | 7482 | 0.12KW | 0.18r/min | 4620N.m | 421.5kg | 82400N | 2.80 |
KAF127R77DT112M4Speeding machine type:
K127r77dt112m4 bottom foot is fitted with tilt gears - umbrella gear-reducing power
Ka127br77dt112m4 foot hollow axis fitted with tilt gears - umbrella gear reduction power
Kv127br77dt112m4 foot larvae axis with tilt gears - umbrella gear reduction power
Kh127 br77dt112m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf127r77dt112m4b5 installation of tilt gear - umbrella gear reduction power
Kaf127r77dt112m4b5farland aerocentric axle is equipped with tilt gears - an umbrella gear reduction power
Kvf127r77dt112m4b5franco-axis installation of tilt gear - umbrella gear-reducing power
Khf127r77dt112m4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka127r77dt112m4 hollow axle tilt gears - umbrella gear reduction power
The kv127r77dt112m4 space cores are equipped with tilt gears - an umbrella gear reduction power
Kh127r77dt112m4 sky axe locked tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt127r77dt112m4 hollow axle - umbrella gear reduction power
Kaz127r77dt112m4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r77dt112m4b14 installation of slashing gears - umbrella gear reduction power
Khz127r77dt112m4b14faran axle locks fitted with tilt gears - umbrella gear-reducing power

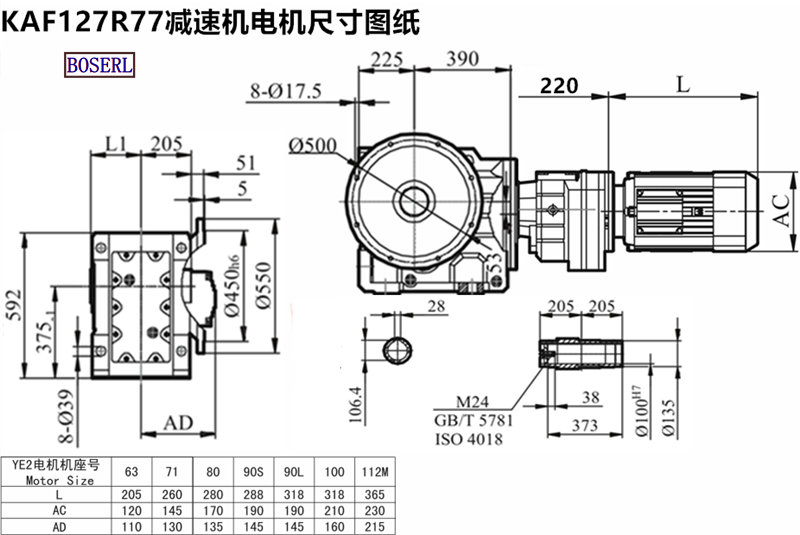

KAF127R77DT112M4Induction Motor 3Ph motors installed size drawings
Kaf127r77dt112m4 deviation power plant. please make an appointment three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: What's the 45kw propeller gear-reducing machine kaf127r77d12m4kaf127r77dre63m4
