KAF127R77DT71S4Detailed Information
Keyword: what kind of propeller gear is 4kw
KAF127R77DT71S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DT71S4 | 9819 | 0.25KW | 0.13r/min | 15100N.m | 426kg | 75600N | 0.85 |
| KAF127R77DT71S4 | 8443 | 0.25KW | 0.15r/min | 13000N.m | 426kg | 79200N | 1.00 |
| KAF127R77DT71S4 | 7482 | 0.25KW | 0.17r/min | 11500N.m | 426kg | 79900N | 1.10 |
| KAF127R77DT71S4 | 6565 | 0.25KW | 0.20r/min | 10100N.m | 426kg | 80600N | 1.30 |
| KAF127R77DT71S4 | 5804 | 0.25KW | 0.22r/min | 8750N.m | 426kg | 81200N | 1.50 |
| KAF127R77DT71S4 | 5027 | 0.25KW | 0.26r/min | 7690N.m | 426kg | 81600N | 1.70 |
| KAF127R77DT71S4 | 4423 | 0.25KW | 0.29r/min | 6660N.m | 426kg | 81900N | 1.95 |
| KAF127R77DT71S4 | 3889 | 0.25KW | 0.33r/min | 5820N.m | 426kg | 82100N | 2.20 |
| KAF127R77DT71S4 | 3311 | 0.25KW | 0.39r/min | 4870N.m | 426kg | 82300N | 2.70 |
Kaf127r77dre80k4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DRE80K4 | 4423 | 0.55KW | 0.31r/min | 14600N.m | 431kg | 76600N | 0.90 |
| KAF127R77DRE80K4 | 3889 | 0.55KW | 0.35r/min | 12800N.m | 431kg | 79200N | 1.00 |
| KAF127R77DRE80K4 | 3311 | 0.55KW | 0.42r/min | 10800N.m | 431kg | 80300N | 1.20 |
| KAF127R77DRE80K4 | 3009 | 0.55KW | 0.46r/min | 9840N.m | 431kg | 80700N | 1.30 |
| KAF127R77DRE80K4 | 2607 | 0.55KW | 0.53r/min | 8450N.m | 431kg | 81300N | 1.55 |
| KAF127R77DRE80K4 | 1926 | 0.55KW | 0.72r/min | 6520N.m | 431kg | 81900N | 2.00 |
| KAF127R77DRE80K4 | 1757 | 0.55KW | 0.79r/min | 5940N.m | 431kg | 82100N | 2.20 |
| KAF127R77DRE80K4 | 1541 | 0.55KW | 0.90r/min | 5180N.m | 431kg | 82300N | 2.50 |
| KAF127R77DRE80K4 | 1342 | 0.55KW | 1.00r/min | 4540N.m | 431kg | 82400N | 2.90 |
| KAF127R77DRE80K4 | 1177 | 0.55KW | 1.20r/min | 3950N.m | 431kg | 82500N | 3.30 |
| KAF127R77DRE80K4 | 1025 | 0.55KW | 1.40r/min | 3460N.m | 431kg | 82600N | 3.80 |
KAF127R77DT71S4Speeding machine type:
K127r77dt71s4 bottom foot is equipped with tilt gears - an umbrella gear decelerator
Ka127br77dt71s4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv127br77dt71s4 bottom foot larvae axis is equipped with tilt gears - umbrella gear reduction power
Kh127 br77dt71s4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf127r77dt71s4b5 installation of tilt gears - umbrella gear reduction power
Kaf127r77dt71s4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf127r77dt71s4b5francocardiograms fitted with tilt gears - umbrella gear reduction power
Khf127r77dt71s4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka127r77dt71s4 hollow axle tilt gears - umbrella gear reduction power
Kv127r77dt71s4 installation of tilt gears - umbrella gear reduction power
Kh127r77dt71s4 empty axle locks slashing gears - umbrella gear reduction power
Installation of tilt gears on kt127r77dt71s4 hollow axle - umbrella gear reduction power
Kaz127r77dt71s4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r77dt71s4b14francocardiograms fitted with tilt gears - umbrella gear-reducing power
Khz127r77dt71s4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

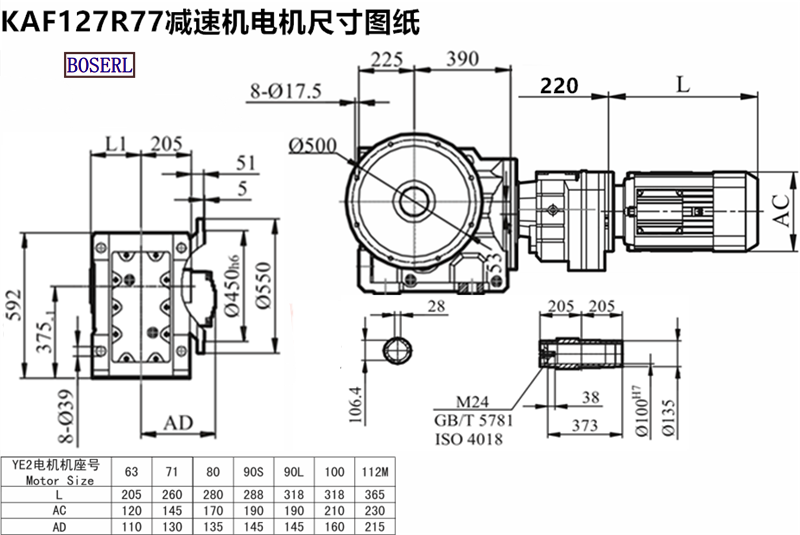

KAF127R77DT71S4Induction Motor 3Ph motors installed size drawings
Kaf127r77dt71s4 deviation power plant, three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: What's the 4kw propeller gear deviator kaf127r77dt71s4kaf127r77dre80k4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF127R77DT71S4减速机样本 |
|
| KAF127R77DT71S4减速机三维图纸 |
|
