KAF127R77DT90M4Detailed Information
Keyword: 30kw's what turret gear brakes_kaf127r77dt90m4_kaf127r77dre100m4
KAF127R77DT90M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DT90M4 | 1926 | 1.1KW | 0.74r/min | 12900N.m | 436kg | 79200N | 1.00 |
| KAF127R77DT90M4 | 1757 | 1.1KW | 0.81r/min | 11800N.m | 436kg | 79800N | 1.10 |
| KAF127R77DT90M4 | 1541 | 1.1KW | 0.92r/min | 10300N.m | 436kg | 80500N | 1.25 |
| KAF127R77DT90M4 | 1342 | 1.1KW | 1.10r/min | 9030N.m | 436kg | 81100N | 1.45 |
| KAF127R77DT90M4 | 1177 | 1.1KW | 1.20r/min | 7900N.m | 436kg | 81500N | 1.65 |
| KAF127R77DT90M4 | 1025 | 1.1KW | 1.40r/min | 6900N.m | 436kg | 81800N | 1.90 |
| KAF127R77DT90M4 | 899 | 1.1KW | 1.60r/min | 6030N.m | 436kg | 82000N | 2.20 |
| KAF127R77DT90M4 | 790 | 1.1KW | 1.80r/min | 5190N.m | 436kg | 82300N | 2.50 |
| KAF127R77DT90M4 | 704 | 1.1KW | 2.00r/min | 4700N.m | 436kg | 82400N | 2.80 |
| KAF127R77DT90M4 | 610 | 1.1KW | 2.30r/min | 4040N.m | 436kg | 82500N | 3.20 |
| KAF127R77DT90M4 | 549 | 1.1KW | 2.60r/min | 3650N.m | 436kg | 82600N | 3.60 |
| KAF127R77DT90M4 | 477 | 1.1KW | 3.00r/min | 3140N.m | 436kg | 82600N | 4.10 |
Kaf127r77dre100m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R77DRE100M4 | 1025 | 2.2KW | 1.40r/min | 13900N.m | 448kg | 78100N | 0.95 |
| KAF127R77DRE100M4 | 899 | 2.2KW | 1.60r/min | 12200N.m | 448kg | 79600N | 1.05 |
| KAF127R77DRE100M4 | 790 | 2.2KW | 1.80r/min | 10600N.m | 448kg | 80400N | 1.20 |
| KAF127R77DRE100M4 | 704 | 2.2KW | 2.00r/min | 9530N.m | 448kg | 80900N | 1.35 |
| KAF127R77DRE100M4 | 610 | 2.2KW | 2.30r/min | 8230N.m | 448kg | 81400N | 1.60 |
| KAF127R77DRE100M4 | 549 | 2.2KW | 2.60r/min | 7420N.m | 448kg | 81600N | 1.75 |
| KAF127R77DRE100M4 | 477 | 2.2KW | 3.00r/min | 6410N.m | 448kg | 81900N | 2.00 |
| KAF127R77DRE100M4 | 418 | 2.2KW | 3.40r/min | 5650N.m | 448kg | 82100N | 2.30 |
KAF127R77DT90M4Speeding machine type:
K127r77dt90m4 bottom foot with tilt gear - umbrella gear deviation engine
Ka127br77dt90m4 foot hollow axis fitted with tilt gears - umbrella gear reduction power
The kv127br77dt90m4 bottom foot larvae axis is equipped with tilt gears - umbrella gear-reducing power
Kh127 br77dt90m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf127r77dt90m4b5 installation of tilt gear - umbrella gear reduction power
Kaf127r77dt90m4b5 french aerocentric axles is equipped with tilt gears - an umbrella gear reduction power
Kvf127r77dt90m4b5 francoons installed slash gears - umbrella gear reduction power
Khf127r77dt90m4b5 french axle locks fitted with tilt gears - umbrella gear reduction power
Ka127r77dt90m4 hollow axle tilt gears - umbrella gear reduction power
Kv127r77dt90m4 space cores fitted with tilt gears - umbrella gear-reducing power
Kh127r77dt90m4 sky axe locked tilt gear - umbrella gear deviation engine
Kt127r77dt90m4 sky axis installation of tilt gear - umbrella gear deviation engine
Kaz127r77dt90m4b14 installation of tilt gears - umbrella gear reduction power
Kvz127r77dt90m4b14 flannel axles installed slash gears - umbrella gear-reducing power
Khz127r77dt90m4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

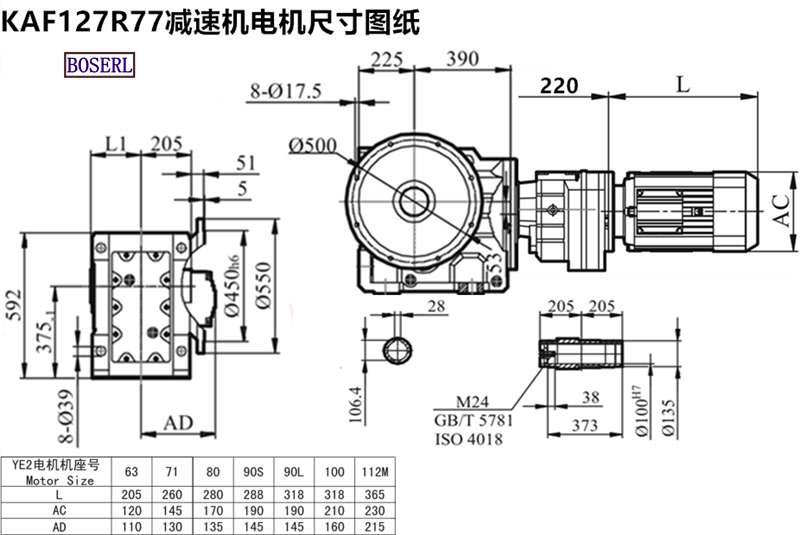

KAF127R77DT90M4Induction Motor 3Ph motors installed size drawings
Kaf127r77dt90m4 deviation power plant. please make an appointment three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 30kw, what kind of propeller gear-reducing machine? kaf127r77dt90m4kaf127r77dre100m4
