KAF127R87DV132L4Detailed Information
Keywords: 1. 5kw's arctic mid-angle brakes_kaf127r87dv132l4_kaf127r87drrn100lc4
KAF127R87DV132L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R87DV132L4 | 330 | 7.5KW | 4.40r/min | 14800N.m | 516kg | 76200N | 0.85 |
| KAF127R87DV132L4 | 287 | 7.5KW | 5.10r/min | 12800N.m | 516kg | 79300N | 1.00 |
| KAF127R87DV132L4 | 253 | 7.5KW | 5.80r/min | 11300N.m | 516kg | 80000N | 1.15 |
| KAF127R87DV132L4 | 213 | 7.5KW | 6.90r/min | 9550N.m | 516kg | 80900N | 1.35 |
| KAF127R87DV132L4 | 200 | 7.5KW | 7.30r/min | 9100N.m | 516kg | 81100N | 1.30 |
| KAF127R87DV132L4 | 166 | 7.5KW | 8.80r/min | 7530N.m | 516kg | 81600N | 1.60 |
| KAF127R87DV132L4 | 147 | 7.5KW | 10.0r/min | 6640N.m | 516kg | 81900N | 1.80 |
Kaf127r87drn100lc4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127R87DRN100LC4 | 536 | 3KW | 2.70r/min | 9580N.m | 478kg | 80900N | 1.35 |
| KAF127R87DRN100LC4 | 473 | 3KW | 3.10r/min | 8410N.m | 478kg | 81300N | 1.55 |
| KAF127R87DRN100LC4 | 418 | 3KW | 3.50r/min | 7560N.m | 478kg | 81600N | 1.70 |
| KAF127R87DRN100LC4 | 367 | 3KW | 4.00r/min | 6610N.m | 478kg | 81900N | 1.95 |
| KAF127R87DRN100LC4 | 330 | 3KW | 4.40r/min | 5930N.m | 478kg | 82100N | 2.20 |
| KAF127R87DRN100LC4 | 287 | 3KW | 5.10r/min | 5090N.m | 478kg | 82300N | 2.60 |
KAF127R87DV132L4Speeding machine type:
K127r87dv132l4 bottom foot is fitted with tilt gear - umbrella gear decelerator
Ka127 br87dv132l4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv127 br87dv132l4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh127 br87dv132l4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf127r87dv132l4b5 installation of tilt gear - umbrella gear reduction power
Kaf127r87dv132l4b5farland aerocentric axles with tilt gears - umbrella gear-reducing power
Kvf127r87dv132l4b5franco-axis installation of tilt gear - umbrella gear-reducing power
Khf127r87dv132l4b5farland axial axle locks fitted with tilt gears - umbrella gear reduction power
Ka127r87dv132l4 hollow axle tilt gear - umbrella gear deceleration power
The kv127r87dv132l4 spaced axle is equipped with tilt gears - an umbrella gear decelerator
Kh127r87dv132l4 empty axle locks slashing gears - umbrella gear reduction power
Installation of tilt gears on kt127r87dv132l4 hollow axle - umbrella gear reduction power
Kaz127r87dv132l4b14 installation of tilt gear - umbrella gear reduction power
Kvz127r87dv132l4b14francocardiograms installed with tilt gears - umbrella gear-reducing power
Khz127r87dv132l4b14franic axle locks fitted with tilt gears - umbrella gear reduction power

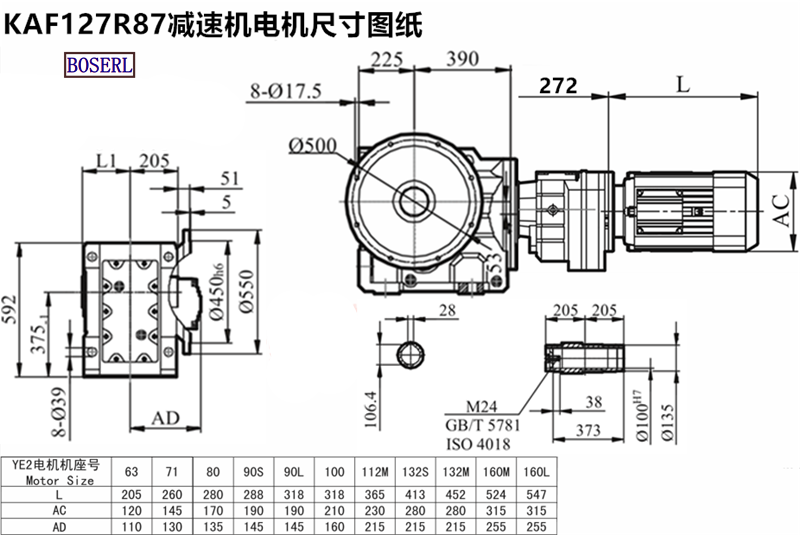

KAF127R87DV132L4Induction Motor 3Ph motors installed size drawings
Kaf127r87dv132l4 power-reducing plant. please make an appointment three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 1. 5kw kaf127r87dv132l4 kaf127r87rn100lc4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF127R87DV132L4减速机样本 |
|
| KAF127R87DV132L4减速机三维图纸 |
|
