KAF127RF87-Y2.2KWDetailed Information
Keywords: 22kw, what is the arctic mid-angle decelerator_kaf127rf87-y2. 2kw_kaf127rf87-y112m4
KAF127RF87-Y2.2KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127RF87-Y2.2KW | 536 | 2.2KW | 2.70r/min | 7110N.m | 475kg | 81700N | 1.85 |
| KAF127RF87-Y2.2KW | 473 | 2.2KW | 3.00r/min | 6220N.m | 475kg | 82000N | 2.10 |
| KAF127RF87-Y2.2KW | 418 | 2.2KW | 3.40r/min | 5610N.m | 475kg | 82200N | 2.30 |
| KAF127RF87-Y2.2KW | 367 | 2.2KW | 3.90r/min | 4910N.m | 475kg | 82300N | 2.60 |
| KAF127RF87-Y2.2KW | 330 | 2.2KW | 4.30r/min | 4400N.m | 475kg | 82400N | 3.00 |
KAF127RF87-Y112M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF127RF87-Y112M4 | 536 | 4KW | 2.70r/min | 12800N.m | 489kg | 79300N | 1.00 |
| KAF127RF87-Y112M4 | 473 | 4KW | 3.10r/min | 11200N.m | 489kg | 80100N | 1.15 |
| KAF127RF87-Y112M4 | 418 | 4KW | 3.50r/min | 10100N.m | 489kg | 80600N | 1.30 |
| KAF127RF87-Y112M4 | 367 | 4KW | 4.00r/min | 8830N.m | 489kg | 81200N | 1.45 |
| KAF127RF87-Y112M4 | 330 | 4KW | 4.40r/min | 7930N.m | 489kg | 81500N | 1.65 |
| KAF127RF87-Y112M4 | 287 | 4KW | 5.10r/min | 6820N.m | 489kg | 81800N | 1.90 |
| KAF127RF87-Y112M4 | 253 | 4KW | 5.80r/min | 6030N.m | 489kg | 82100N | 2.20 |
KAF127RF87-Y2.2KWSpeeding machine type:
K127rf87-y2. 2kw bottom foot installation of tilt gear - umbrella gear deviation engine
Ka127brf87-y2. 2kw foot hollow axis fitted with tilt gears - umbrella gear reduction power
Kv127brf87-y2. 2kw bottom foot flow axes installation of tilt gears - umbrella gear deviation engine
Kh127brf87-y2. 2kw bottom foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf127rf87-y2. 2kwb5 installation of tilt gear - umbrella gear deceleration power
Kaf127rf87-y2. 2kwb5 installation of tilt gears - umbrella gear reduction power
Frf127rf87-y2. 2kwb5 installation of tilt gear - umbrella gear deviation engine
Khf127rf87-y2. 2kwb5 french axle locks fitted with tilt gears - umbrella gear reduction power
Ka127rf87-y2. 2kw hollow axle tilt gears - umbrella gear reduction power
Kv127rf87-y2. 2kw spaced axles with tilt gears - umbrella gear reduction power
Kh127rf87-y2. 2kw sky axes locked tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt127rf87-y2. 2kw hollow axle - umbrella gear deceleration power
Kaz127rf87-y2. 2kwb14 installation of tilt gear - umbrella gear reduction power
Frfz 127rf87-y2. 2kwb14 installation of tilt gear - umbrella gear reduction power
Dhz127rf87-y2. 2kwb14 french axle locks fitted with tilt gears - umbrella gear-reducing power

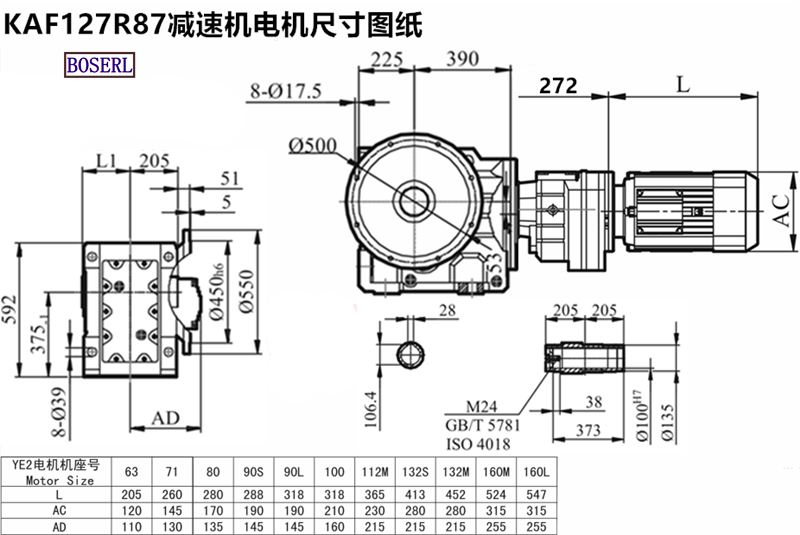

KAF127RF87-Y2.2KWInduction Motor 3Ph motors installed size drawings
Kaf127rf87-y2. 2kw power-reducing plantGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
