KAF157R107DM160M4Detailed Information
Keyword: 30kw with what cone gear-reducing motor_kaf157r107dm160m4_kaf157r107drrs180m4
KAF157R107DM160M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R107DM160M4 | 230 | 15KW | 6.40r/min | 20500N.m | 898kg | 110800N | 0.90 |
| KAF157R107DM160M4 | 213 | 15KW | 6.90r/min | 19300N.m | 898kg | 111500N | 0.95 |
| KAF157R107DM160M4 | 187 | 15KW | 7.80r/min | 16600N.m | 898kg | 112800N | 1.10 |
| KAF157R107DM160M4 | 157 | 15KW | 9.30r/min | 14100N.m | 898kg | 113900N | 1.25 |
| KAF157R107DM160M4 | 122 | 15KW | 12.0r/min | 11000N.m | 898kg | 115000N | 1.60 |
| KAF157R107DM160M4 | 107 | 15KW | 14.0r/min | 9670N.m | 898kg | 115400N | 1.85 |
KAF157R107DRS180M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R107DRS180M4 | 187 | 18.5KW | 7.80r/min | 20600N.m | 935kg | 110700N | 0.85 |
| KAF157R107DRS180M4 | 157 | 18.5KW | 9.30r/min | 17500N.m | 935kg | 112400N | 1.05 |
| KAF157R107DRS180M4 | 122 | 18.5KW | 12.0r/min | 13700N.m | 935kg | 113900N | 1.30 |
| KAF157R107DRS180M4 | 107 | 18.5KW | 14.0r/min | 11900N.m | 935kg | 112000N | 1.50 |
KAF157R107DM160M4Speeding machine type:
K157r107dm160m4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka157br107dm160m4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv157 br107dm160m4 bottom foot larvae axis is fitted with tilt gears - umbrella gear-reducing power
Kh157 br107dm160m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf 157r107dm160m4b5 installation of tilt gear - umbrella gear reduction power
Kaf157r107dm160m4b5 french aerocentric axis installation of tilt gears - umbrella gear reduction power
Kvf157r107dm160m4b5 frandra key cardiac axe installation of tilt gears - umbrella gear deviation engine
Khf157r107dm160m4b5 franium axial axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r107dm160m4 hollow axial tilt gears - an umbrella gear-reducing motor
Kv157r107dm160m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh157r107dm160m4 sky axe locked tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt157r107dm160m4 empty-centre axis - umbrella gear reduction power
Kaz157r107dm160m4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r107dm160m4b14 installation of tilt gear - umbrella gear reduction power
Dhz157r107dm160m4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

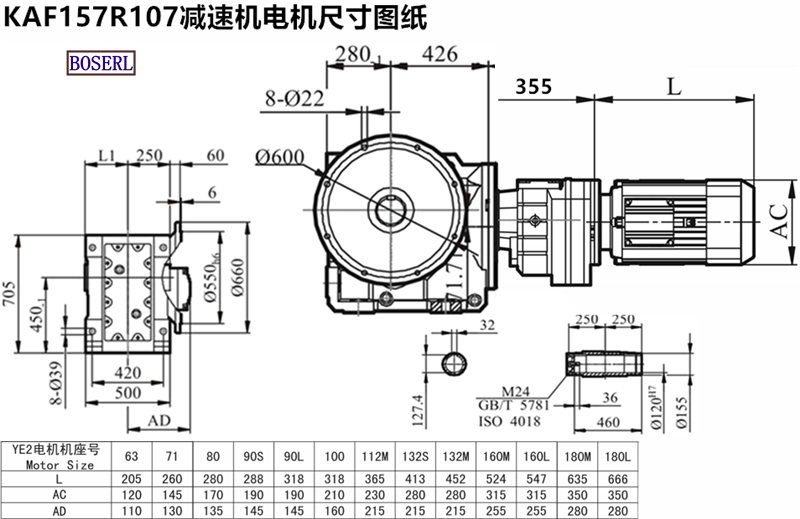

KAF157R107DM160M4Induction Motor 3Ph motors installed size drawings
Kaf157r107dm160m4 deviation power plant, three days' appointmentGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 30kw, what cone gear-reducing powerer kaf157r107dm160m4kaf157r107drrs180m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF157R107DM160M4减速机样本 |
|
| KAF157R107DM160M4减速机三维图纸 |
|
