KAF157R107DM160S4Detailed Information
Keyword: 11kw, what is the arctic hollow axlereducing motor _kaf157r107dm160s4_kaf157r107drrs180lc4
KAF157R107DM160S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R107DM160S4 | 230 | 15KW | 6.40r/min | 20500N.m | 898kg | 110800N | 0.90 |
| KAF157R107DM160S4 | 213 | 15KW | 6.90r/min | 19300N.m | 898kg | 111500N | 0.95 |
| KAF157R107DM160S4 | 187 | 15KW | 7.80r/min | 16600N.m | 898kg | 112800N | 1.10 |
| KAF157R107DM160S4 | 157 | 15KW | 9.30r/min | 14100N.m | 898kg | 113900N | 1.25 |
| KAF157R107DM160S4 | 122 | 15KW | 12.0r/min | 11000N.m | 898kg | 115000N | 1.60 |
| KAF157R107DM160S4 | 107 | 15KW | 14.0r/min | 9670N.m | 898kg | 115400N | 1.85 |
KAF157R107DRS180LC4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R107DRS180LC4 | 157 | 22KW | 9.40r/min | 20700N.m | 948kg | 109400N | 0.85 |
| KAF157R107DRS180LC4 | 122 | 22KW | 12.0r/min | 16200N.m | 948kg | 108100N | 1.10 |
| KAF157R107DRS180LC4 | 107 | 22KW | 14.0r/min | 14100N.m | 948kg | 106900N | 1.25 |
KAF157R107DM160S4Speeding machine type:
K157r107dm160s4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka157br107dm160s4 foot hollow axis with tilt gears - umbrella gear-reducing power
Kv157 br107dm160s4 foot larvae axis installation of tilt gear - umbrella gear reduction power
Kh157 br107dm160s 4-foot hollow-axis locks with tilt gears.Right-angle shaft reducer motor
Frf 157r107dm160s4b5 installation of tilt gears - umbrella gear reduction power
Kaf157r107dm160s4b5 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears on the frf157r107dm160s4b5 cardiac axle - an umbrella gear decelerator
Khf157r107dm160s4b5 french axial axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r107dm160s4 hollow axle tilt gears - an umbrella gear decelerator power plant
Kv157r107dm160s4 installation of tilt gears - umbrella gear reduction power
Kh157r107dm160s4 sky axes locked tilt tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt157r107dm160s4 empty-centre axis - umbrella gear reduction power
Kaz157r107dm160s4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r107dm160s4b14 flannel axles installed with tilt gears - umbrella gear-reducing power
Khz157r107dm160s4b14 french axial axle locks fitted with tilt gears - umbrella gear reduction power

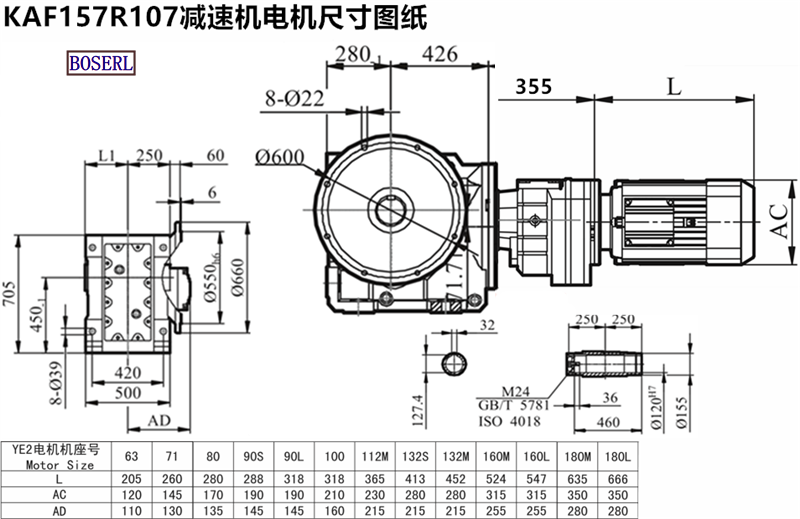

KAF157R107DM160S4Induction Motor 3Ph motors installed size drawings
Kaf157r107dm160s4 power-reducing plantGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 11kw, what is the straight-angle hollow axle speed-reducing motor kaf157r107dm160s4kaf157r107drrs180lc4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF157R107DM160S4减速机样本 |
|
| KAF157R107DM160S4减速机三维图纸 |
|
