KAF157R107DT160M4Detailed Information
Keyword: 75kw with what cone gear reduction power _kaf157r107dt160m4_kaf157r107dre180m4
KAF157R107DT160M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R107DT160M4 | 230 | 15KW | 6.40r/min | 20500N.m | 898kg | 110800N | 0.90 |
| KAF157R107DT160M4 | 213 | 15KW | 6.90r/min | 19300N.m | 898kg | 111500N | 0.95 |
| KAF157R107DT160M4 | 187 | 15KW | 7.80r/min | 16600N.m | 898kg | 112800N | 1.10 |
| KAF157R107DT160M4 | 157 | 15KW | 9.30r/min | 14100N.m | 898kg | 113900N | 1.25 |
| KAF157R107DT160M4 | 122 | 15KW | 12.0r/min | 11000N.m | 898kg | 115000N | 1.60 |
| KAF157R107DT160M4 | 107 | 15KW | 14.0r/min | 9670N.m | 898kg | 115400N | 1.85 |
KAF157R107DRE180M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R107DRE180M4 | 187 | 18.5KW | 7.80r/min | 20600N.m | 935kg | 110700N | 0.85 |
| KAF157R107DRE180M4 | 157 | 18.5KW | 9.30r/min | 17500N.m | 935kg | 112400N | 1.05 |
| KAF157R107DRE180M4 | 122 | 18.5KW | 12.0r/min | 13700N.m | 935kg | 113900N | 1.30 |
| KAF157R107DRE180M4 | 107 | 18.5KW | 14.0r/min | 11900N.m | 935kg | 112000N | 1.50 |
KAF157R107DT160M4Speeding machine type:
K157r107dt160m4 bottom foot is fitted with tilt gears - umbrella gear-reducing power
Ka157br107dt160m4 foot hollow axis with tilt gear - umbrella gear deceleration power
Kv157 br107dt160m4 foot larvae axis installed with tilt gears - umbrella gear reduction power
Kh157 br107dt160m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf157r107dt160m4b5 installation of tilt gear - umbrella gear reduction power
Kaf157r107dt160m4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf157r107dt160m4b5franco-axis installation of tilt gear - umbrella gear deviation engine
Khf157r107dt160m4b5farland axial axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r107dt160m4 hollow axle tilt gears - an umbrella gear reduction power
The kv157r107dt160m4 spaced axle is equipped with tilt gears - an umbrella gear reduction power
Kh157r107dt160m4 empty axle locks slashing gears - umbrella gear reduction power
Installation of tilt gears on kt157r107dt160m4 empty-centre axis - umbrella gear reduction power
Kaz157r107dt160m4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r107dt160m4b14 installation of tilt gears - umbrella gear deviation electric
Khz157r107dt160m4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

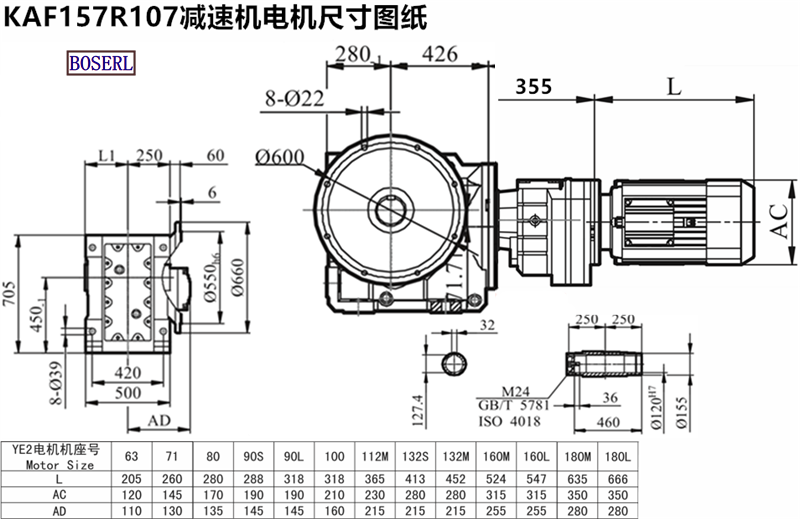

KAF157R107DT160M4Induction Motor 3Ph motors installed size drawings
Kaf157r107dt160m4 deviation power plant. please make an appointment three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 75kw, what cone gear speed-reducing motor kaf157r107dt160m4kaf157r107dre180m4
