KAF157R107DV160S4Detailed Information
Keyword: 90kw, what arctic axlereducing motor _kaf157r107dv160s4_kaf157r107dv180lc4
KAF157R107DV160S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R107DV160S4 | 230 | 15KW | 6.40r/min | 20500N.m | 898kg | 110800N | 0.90 |
| KAF157R107DV160S4 | 213 | 15KW | 6.90r/min | 19300N.m | 898kg | 111500N | 0.95 |
| KAF157R107DV160S4 | 187 | 15KW | 7.80r/min | 16600N.m | 898kg | 112800N | 1.10 |
| KAF157R107DV160S4 | 157 | 15KW | 9.30r/min | 14100N.m | 898kg | 113900N | 1.25 |
| KAF157R107DV160S4 | 122 | 15KW | 12.0r/min | 11000N.m | 898kg | 115000N | 1.60 |
| KAF157R107DV160S4 | 107 | 15KW | 14.0r/min | 9670N.m | 898kg | 115400N | 1.85 |
KAF157R107DV180LC4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R107DV180LC4 | 157 | 22KW | 9.40r/min | 20700N.m | 948kg | 109400N | 0.85 |
| KAF157R107DV180LC4 | 122 | 22KW | 12.0r/min | 16200N.m | 948kg | 108100N | 1.10 |
| KAF157R107DV180LC4 | 107 | 22KW | 14.0r/min | 14100N.m | 948kg | 106900N | 1.25 |
KAF157R107DV160S4Speeding machine type:
K157r107dv160s4 foot is fitted with tilt gears - umbrella gear reduction power
Ka157br107dv160s4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv157 br107dv160s4 foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh157 br107dv160s4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf 157r107dv160s4b5 installation of tilt gears - umbrella gear deceleration power
Kaf157r107dv160s4b5 installation of tilt gear - umbrella gear reduction power
Frf157r107dv160s4b5 installation of tilt gear - umbrella gear-reducing power
Khf157r107dv160s4b5 french axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r107dv160s4 hollow axle tilt gears - an umbrella gear deceleration power
The kv157r107dv160s4 cardiac axis is equipped with an oscillation gear - an umbrella gear decelerator
Kh157r107dv160s4 sky axe locked tilt gear - umbrella gear deviation engine
Installation of tilt gears on the kt157r107dv160s4 hollow axle - an umbrella gear decelerator
Kaz157r107dv160s4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r107dv160s4b14 franco-axis installation of tilt gear - umbrella gear deviation engine
Khz157r107dv160s4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

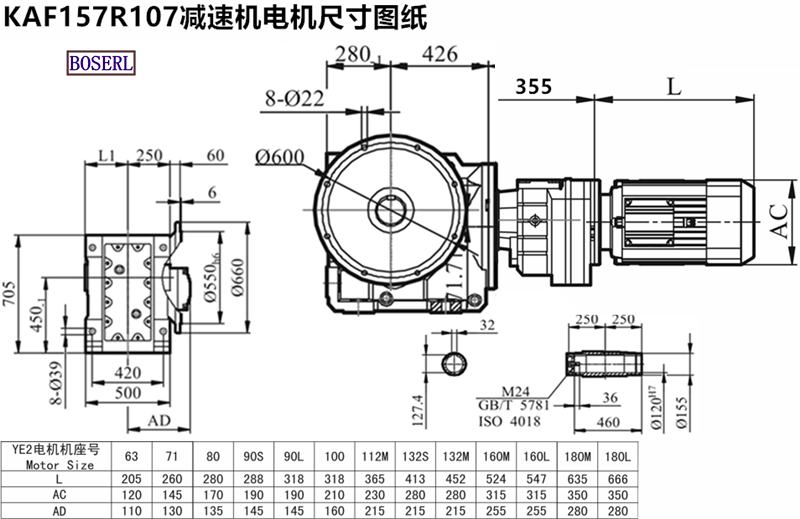

KAF157R107DV160S4Induction Motor 3Ph motors installed size drawings
Kaf157r107dv160s4 deviation power plant, three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 90kw, what straight-angle hollow axle speed-reducing kaf157r107dv160s4 kaf157r107dv180lc4
