KAF157R107DV180M4Detailed Information
Keyword: what cone gearretarding machine is 55kw
KAF157R107DV180M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R107DV180M4 | 187 | 18.5KW | 7.80r/min | 20600N.m | 935kg | 110700N | 0.85 |
| KAF157R107DV180M4 | 157 | 18.5KW | 9.30r/min | 17500N.m | 935kg | 112400N | 1.05 |
| KAF157R107DV180M4 | 122 | 18.5KW | 12.0r/min | 13700N.m | 935kg | 113900N | 1.30 |
| KAF157R107DV180M4 | 107 | 18.5KW | 14.0r/min | 11900N.m | 935kg | 112000N | 1.50 |
KAF157R107DRN160M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R107DRN160M4 | 230 | 15KW | 6.40r/min | 20500N.m | 898kg | 110800N | 0.90 |
| KAF157R107DRN160M4 | 213 | 15KW | 6.90r/min | 19300N.m | 898kg | 111500N | 0.95 |
| KAF157R107DRN160M4 | 187 | 15KW | 7.80r/min | 16600N.m | 898kg | 112800N | 1.10 |
| KAF157R107DRN160M4 | 157 | 15KW | 9.30r/min | 14100N.m | 898kg | 113900N | 1.25 |
| KAF157R107DRN160M4 | 122 | 15KW | 12.0r/min | 11000N.m | 898kg | 115000N | 1.60 |
| KAF157R107DRN160M4 | 107 | 15KW | 14.0r/min | 9670N.m | 898kg | 115400N | 1.85 |
KAF157R107DV180M4Speeding machine type:
K157r107dv180m4 foot is equipped with tilt gears - umbrella gear-reducing power
Ka157br107dv180m4 foot hollow axis with tilt gear - umbrella gear-reducing power
Kv157 br107dv180m4 foot larvae axis installed with tilt gears - umbrella gear-reducing motors
Kh157 br107dv180m4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf 157r107dv180m4b5 installation of tilt gear - umbrella gear reduction power
Kaf157r107dv180m4b5 installation of tilt gear - umbrella gear reduction power
Frf157r107dv180m4b5 installation of tilt gear - umbrella gear-reducing power
Khf157r107dv180m4b5farland axle locks fitted with tilt gears - an umbrella gear-reducing power plant
Ka157r107dv180m4 hollow axial tilt gears - an umbrella gear-reducing power plant
Kv157r107dv180m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh157r107dv180m4 sky axes locked tilt gears - umbrella gear deviation engine
Installation of tilt gears on the kt157r107dv180m4 hollow axle - an umbrella gear decelerator
Kaz157r107dv180m4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors in the franberry axle
Dhz157r107dv180m4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

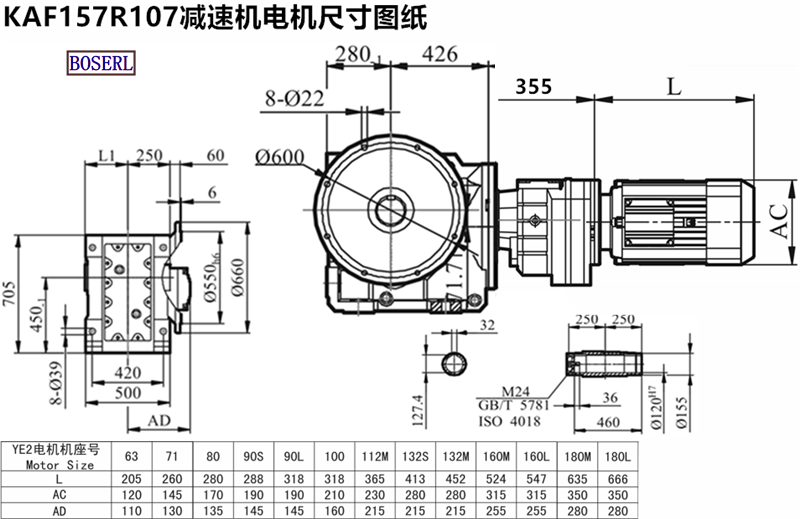

KAF157R107DV180M4Induction Motor 3Ph motors installed size drawings
Kaf157r107dv180m4reducing power plantGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 55kw, what kind of cone gear speed-reducing motor kaf157r107dv180m4kaf157r107drn160m4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF157R107DV180M4减速机样本 |
|
| KAF157R107DV180M4减速机三维图纸 |
|
