KAF157R97DM132L4Detailed Information
Keywords: 132kw with an empty cupretarder_kaf157r97dm132l4_kaf157r97drrs80k4
KAF157R97DM132L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R97DM132L4 | 434 | 7.5KW | 3.40r/min | 19300N.m | 784kg | 111500N | 0.95 |
| KAF157R97DM132L4 | 379 | 7.5KW | 3.90r/min | 16800N.m | 784kg | 112700N | 1.05 |
| KAF157R97DM132L4 | 333 | 7.5KW | 4.40r/min | 14800N.m | 784kg | 113600N | 1.20 |
| KAF157R97DM132L4 | 291 | 7.5KW | 5.00r/min | 12900N.m | 784kg | 114400N | 1.40 |
Kaf157r97drs80k4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R97DRS80K4 | 6881 | 0.55KW | 0.20r/min | 21900N.m | 726kg | 110000N | 0.80 |
| KAF157R97DRS80K4 | 5931 | 0.55KW | 0.23r/min | 18800N.m | 726kg | 111700N | 0.95 |
| KAF157R97DRS80K4 | 3979 | 0.55KW | 0.35r/min | 12600N.m | 726kg | 114500N | 1.40 |
| KAF157R97DRS80K4 | 3051 | 0.55KW | 0.45r/min | 9710N.m | 726kg | 115400N | 1.85 |
KAF157R97DM132L4Speeding machine type:
K157r97dm132l4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka157br97dm132l4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv157 br97dm132l4 foot larvae axis installed with tilt gears - umbrella gear reduction power
Kh157 br97dm132l4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf 157r97dm132l4b5 installation of tilt gear - umbrella gear reduction power
Kaf157r97dm132l4b5 french aerocentric axle is equipped with tilt gears - an umbrella gear reduction power
Kvf157r97dm132l4b5-franco cardiac axis fitted with tilt gears - umbrella gear-reducing power
Khf157r97dm132l4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka157r97dm132l4 hollow axle tilt gears - umbrella gear reduction power
Kv157r97dm132l4 spaced axles with tilt gears - umbrella gear-reducing power
Kh157r97dm132l4 sky axe locked tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt157r97dm132l4 hollow axle - umbrella gear reduction power
Kaz157r97dm132l4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors in the franberry axle
Khz157r97dm132l4b14 french axle locks with tilt gears - umbrella gear reduction power

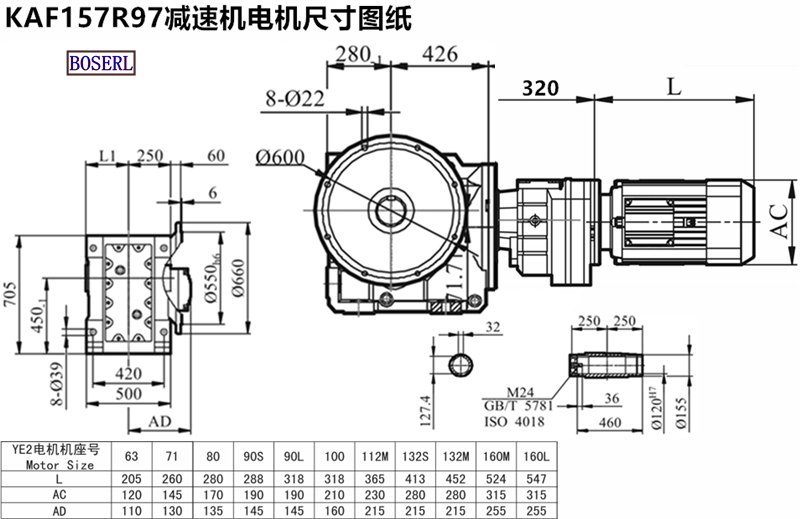

KAF157R97DM132L4Induction Motor 3Ph motors installed size drawings
Kaf157r97dm132l4 power plant. please make an appointment three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: What kind of empty-cup speed reduction machine does 132kw use
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF157R97DM132L4减速机样本 |
|
| KAF157R97DM132L4减速机三维图纸 |
|
