KAF157R97DM160L4Detailed Information
Keyword: 11kw with an empty cupreducing machine _kaf157r97dm160l4_kaf157r97drrs80mk4
KAF157R97DM160L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R97DM160L4 | 333 | 11KW | 4.40r/min | 21800N.m | 826kg | 110000N | 0.80 |
| KAF157R97DM160L4 | 291 | 11KW | 5.10r/min | 19000N.m | 826kg | 111600N | 0.95 |
Kaf157r97drs80mk4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R97DRS80MK4 | 6881 | 0.55KW | 0.20r/min | 21900N.m | 726kg | 110000N | 0.80 |
| KAF157R97DRS80MK4 | 5931 | 0.55KW | 0.23r/min | 18800N.m | 726kg | 111700N | 0.95 |
| KAF157R97DRS80MK4 | 3979 | 0.55KW | 0.35r/min | 12600N.m | 726kg | 114500N | 1.40 |
| KAF157R97DRS80MK4 | 3051 | 0.55KW | 0.45r/min | 9710N.m | 726kg | 115400N | 1.85 |
KAF157R97DM160L4Speeding machine type:
K157r97dm160l4 bottom foot fitted with tilt gears - umbrella gear-reducing power
Ka157br97dm160l4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv157 br97dm160l4 foot cores are equipped with tilt gears - umbrella gear reduction power
Kh157 br97dm160l4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf 157r97dm160l4b5 installation of tilt gears - umbrella gear reduction power
Kaf157r97dm160l4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf157r97dm160l4b5-franco cardiac axe installation of tilt gears - umbrella gear deviation engine
Khf157r97dm160l4b5 franium axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r97dm160l4 hollow axle tilt gears - umbrella gear reduction power
The kv157r97dm160l4 cardiac axle is equipped with tilt gears - an umbrella gear decelerator
Kh157r97dm160l4 sky axes locked tilt gear - umbrella gear deviation engine
Installation of tilt gears on the kt157r97dm160l4 hollow axle - an umbrella gear decelerator
Kaz157r97dm160l4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r97dm160l4b14 flannel axles installation of tilt gears - umbrella gear reduction power
Khz157r97dm160l4b14 franium axle locks fitted with tilt gears - umbrella gear reduction power

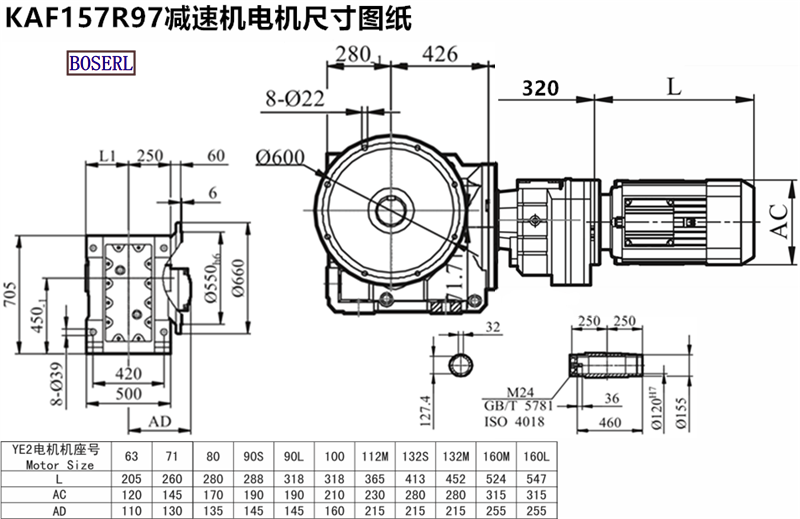

KAF157R97DM160L4Induction Motor 3Ph motors installed size drawings
Kaf157r97dm160l4 power plant. please make an appointment three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
