KAF157R97DR132ML4Detailed Information
Keyword: 3kw with what empty cupreducing machine _kaf157r97dr132ml4_kaf157r97dve80n4
KAF157R97DR132ML4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R97DR132ML4 | 434 | 7.5KW | 3.40r/min | 19300N.m | 784kg | 111500N | 0.95 |
| KAF157R97DR132ML4 | 379 | 7.5KW | 3.90r/min | 16800N.m | 784kg | 112700N | 1.05 |
| KAF157R97DR132ML4 | 333 | 7.5KW | 4.40r/min | 14800N.m | 784kg | 113600N | 1.20 |
| KAF157R97DR132ML4 | 291 | 7.5KW | 5.00r/min | 12900N.m | 784kg | 114400N | 1.40 |
Kaf157r97dve80n4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R97DVE80N4 | 3979 | 0.75KW | 0.36r/min | 16900N.m | 727kg | 112700N | 1.05 |
| KAF157R97DVE80N4 | 3051 | 0.75KW | 0.47r/min | 13000N.m | 727kg | 114300N | 1.40 |
| KAF157R97DVE80N4 | 1659 | 0.75KW | 0.87r/min | 7160N.m | 727kg | 116000N | 2.50 |
| KAF157R97DVE80N4 | 1365 | 0.75KW | 1.00r/min | 5770N.m | 727kg | 116200N | 3.10 |
KAF157R97DR132ML4Speeding machine type:
K157r97dr132ml4 bottom foot fitted with tilt gears - umbrella gear reduction power
Ka157br97dr132ml4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv157 br97dr132ml4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear decelerator
Kh157 br97dr132ml4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf 157r97dr132ml4b5 installation of tilt gear - umbrella gear-reducing power
Kaf157r97dr132ml4b5 installation of tilt gear - umbrella gear reduction power
Frf157r97dr132ml4b5 installation of tilt gears - umbrella gear reduction power
Khf157r97dr132ml4b5 french axle locks fitted with tilt gears - an umbrella gear-reducing power plant
Ka157r97dr132ml4 hollow axle tilt gears - umbrella gear deceleration power
Kv157r97dr132ml4 space cores equipped with tilt gears - umbrella gear-reducing motors
Kh157r97dr132ml4 sky axe locked tilt gear - umbrella gear deviation engine
Installation of tilt gears on kt157r97dr132ml4 hollow axle - an umbrella gear reduction power
Kaz157r97dr132ml4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r97dr132ml4b14 francoons installed slashing gears - umbrella gear reduction power
Khz157r97dr132ml4b14 french axial axle locks fitted with tilt gears - umbrella gear-reducing motors

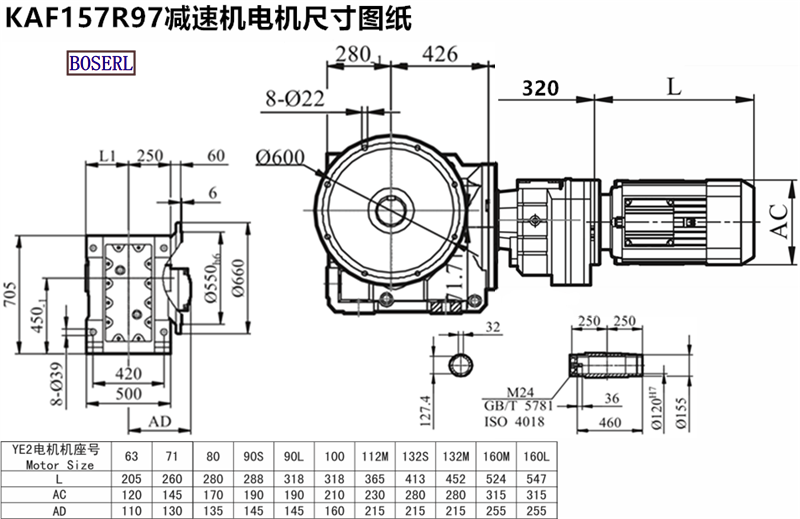

KAF157R97DR132ML4Induction Motor 3Ph motors installed size drawings
Kaf157r97dr132ml4 power-reducing plant. please make an appointment three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
