KAF157R97DT132L4Detailed Information
Keyword: 45kw's auto-reducing motor_kaf157r97dt132l4_kaf157r97dr160mc4
KAF157R97DT132L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R97DT132L4 | 434 | 7.5KW | 3.40r/min | 19300N.m | 784kg | 111500N | 0.95 |
| KAF157R97DT132L4 | 379 | 7.5KW | 3.90r/min | 16800N.m | 784kg | 112700N | 1.05 |
| KAF157R97DT132L4 | 333 | 7.5KW | 4.40r/min | 14800N.m | 784kg | 113600N | 1.20 |
| KAF157R97DT132L4 | 291 | 7.5KW | 5.00r/min | 12900N.m | 784kg | 114400N | 1.40 |
Kaf157r97dre160mc4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R97DRE160MC4 | 333 | 11KW | 4.40r/min | 21800N.m | 826kg | 110000N | 0.80 |
| KAF157R97DRE160MC4 | 291 | 11KW | 5.10r/min | 19000N.m | 826kg | 111600N | 0.95 |
KAF157R97DT132L4Speeding machine type:
K157r97dt132l4 foot is equipped with tilt gears - umbrella gear reduction power
Ka157br97dt132l4 foot hollow axis fitted with tilt gears - umbrella gear reduction power
The kv157 br97dt132l4 foot larvae axis is equipped with tilt gears - umbrella gear reduction power
Kh157 br97dt132l4 foot hollow axle locks with tilt gears -Right-angle shaft reducer motor
Frf157r97dt132l4b5 installation of tilt gear - umbrella gear reduction power
Kaf157r97dt132l4b5 installation of tilt gear - umbrella gear reduction power
Kvf157r97dt132l4b5franco-axis installation of tilt gears - an umbrella gear-reducing generator
Khf157r97dt132l4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka157r97dt132l4 hollow axle tilt gears - umbrella gear reduction power
The kv157r97dt132l4 spaced axle is equipped with tilt gears - an umbrella gear decelerator
Kh157r97dt132l4 sky axe locked tilt gears - umbrella gear deviation engine
The kt157r97dt132l4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz157r97dt132l4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r97dt132l4b14 francoons installed slash gears - umbrella gear reduction power
Khz157r97dt132l4b14 franium axle locks fitted with tilt gears - umbrella gear-reducing power

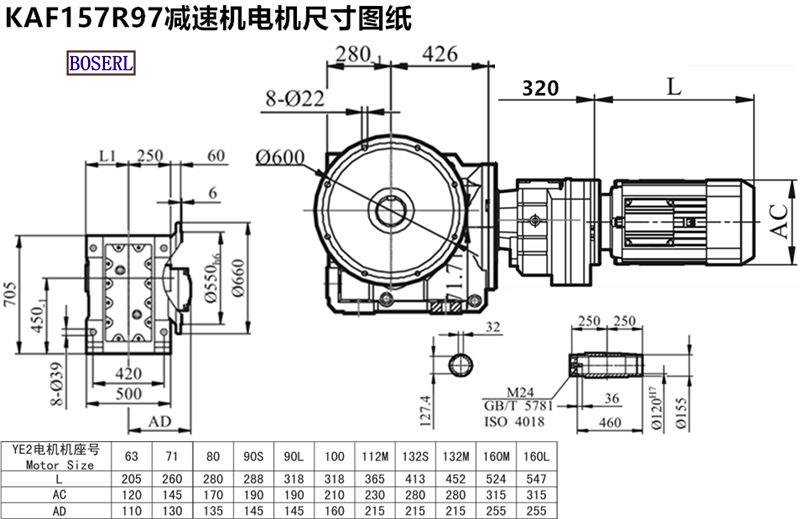

KAF157R97DT132L4Induction Motor 3Ph motors installed size drawings
Kaf157r97dt132l4 power-reducing plantGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: What's the 45kw carnival speed reduction machine kaf157r97dt132l4 kaf157r97dr160mc4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF157R97DT132L4减速机样本 |
|
| KAF157R97DT132L4减速机三维图纸 |
|
