KAF157R97DV90L4Detailed Information
Keyword: what is 3kw using
KAF157R97DV90L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R97DV90L4 | 2322 | 1.5KW | 0.62r/min | 20100N.m | 734kg | 111000N | 0.90 |
| KAF157R97DV90L4 | 1659 | 1.5KW | 0.86r/min | 14900N.m | 734kg | 113600N | 1.20 |
| KAF157R97DV90L4 | 1365 | 1.5KW | 1.00r/min | 12100N.m | 734kg | 114600N | 1.50 |
| KAF157R97DV90L4 | 1229 | 1.5KW | 1.20r/min | 10800N.m | 734kg | 115000N | 1.65 |
| KAF157R97DV90L4 | 1093 | 1.5KW | 1.30r/min | 9680N.m | 734kg | 115400N | 1.85 |
| KAF157R97DV90L4 | 942 | 1.5KW | 1.50r/min | 8350N.m | 734kg | 115700N | 2.20 |
| KAF157R97DV90L4 | 854 | 1.5KW | 1.70r/min | 7500N.m | 734kg | 115900N | 2.40 |
| KAF157R97DV90L4 | 567 | 1.5KW | 2.50r/min | 4930N.m | 734kg | 116300N | 3.60 |
| KAF157R97DV90L4 | 504 | 1.5KW | 2.80r/min | 4380N.m | 734kg | 116400N | 4.10 |
Kaf157r97drn80s4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF157R97DRN80S4 | 6881 | 0.55KW | 0.20r/min | 21900N.m | 726kg | 110000N | 0.80 |
| KAF157R97DRN80S4 | 5931 | 0.55KW | 0.23r/min | 18800N.m | 726kg | 111700N | 0.95 |
| KAF157R97DRN80S4 | 3979 | 0.55KW | 0.35r/min | 12600N.m | 726kg | 114500N | 1.40 |
| KAF157R97DRN80S4 | 3051 | 0.55KW | 0.45r/min | 9710N.m | 726kg | 115400N | 1.85 |
KAF157R97DV90L4Speeding machine type:
K157r97dv90l4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka157 br97dv90l4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv157 br97dv90l4 foot larvae axis installed with tilt gears - umbrella gear reduction power
Kh157 br97dv90l4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf157r97dv90l4b5 installation of tilt gear - umbrella gear reduction power
Kaf157r97dv90l4b5farland axis installation of tilt gear - umbrella gear deviation power
Frf157r97dv90l4b5 installation of tilt gears - umbrella gear-reducing power
Khf157r97dv90l4b5farland axial axle locks fitted with tilt gears - umbrella gear reduction power
Ka157r97dv90l4 tilt gears - an umbrella gear reduction power
Kv157r97dv90l4 spaced axles with tilt gears - umbrella gear decelerators
Kh157r97dv90l4 empty axle locks slashing gears - umbrella gear deceleration power
Installation of tilt gears on kt157r97dv90l4 hollow axle - umbrella gear reduction power
Kaz157r97dv90l4b14 installation of tilt gear - umbrella gear reduction power
Kvz157r97dv90l4b14 flannel axles installed slashing gears - umbrella gear reduction power
Khz157r97dv90l4b14farland axial axle locks fitted with tilt gears - umbrella gear-reducing power

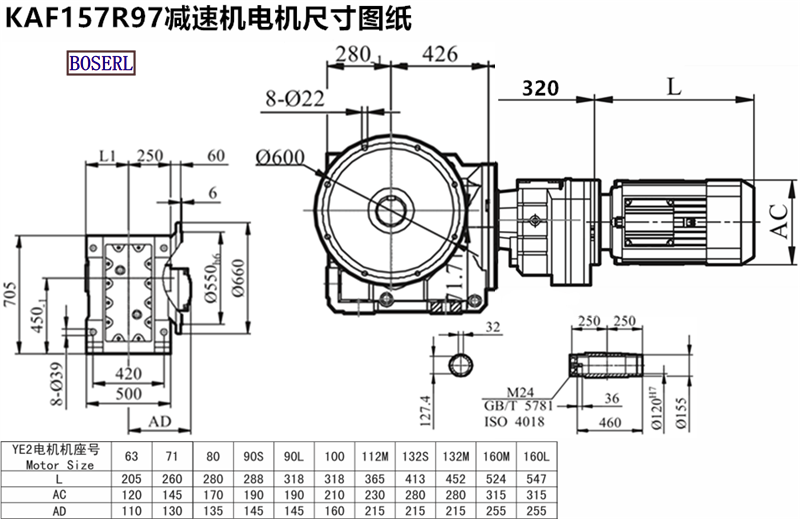

KAF157R97DV90L4Induction Motor 3Ph motors installed size drawings
Kaf157r97dv90l4 power plant, three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: What kind of carnival speed-reducing power 3kw uses
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF157R97DV90L4减速机样本 |
|
| KAF157R97DV90L4减速机三维图纸 |
|
