Forty-three tons of crane speed-reducing machine _kaf57dr100lc4_boserl moving kaf57dr100ls4 speed-reducing plant

KAF57DR100LC4Detailed Information

prevnext

KAF57DR100LC4

TEL：Email:[email protected]

详细信息

Keyword: 43 tonnes of crane-loader retardator_kaf57dr100lc4_kaf57dr100ls4

KAF57DR100LC4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KAF57DR100LC4	30.28	3KW	46rpm	615N.m	49Kg	7180N	0.95
KAF57DR100LC4	27.34	3KW	51rpm	555N.m	49Kg	7190N	1.05
KAF57DR100LC4	24.05	3KW	58rpm	490N.m	49Kg	7180N	1.2
KAF57DR100LC4	22.71	3KW	62rpm	460N.m	49Kg	7160N	1.3
KAF57DR100LC4	19.34	3KW	72rpm	395N.m	49Kg	7080N	1.45
KAF57DR100LC4	17.57	3KW	80rpm	355N.m	49Kg	7020N	1.55
KAF57DR100LC4	15.22	3KW	92rpm	310N.m	49Kg	6890N	1.7
KAF57DR100LC4	13.25	3KW	106rpm	270N.m	49Kg	6750N	1.9
KAF57DR100LC4	11.92	3KW	117rpm	240N.m	49Kg	6420N	1.7
KAF57DR100LC4	11.26	3KW	124rpm	230N.m	49Kg	6360N	1.8
KAF57DR100LC4	9.59	3KW	146rpm	196N.m	49Kg	6200N	2.1
KAF57DR100LC4	8.71	3KW	161rpm	178N.m	49Kg	6090N	2.2
KAF57DR100LC4	7.55	3KW	186rpm	154N.m	49Kg	5920N	2.4
KAF57DR100LC4	6.57	3KW	213rpm	134N.m	49Kg	5750N	2.6
KAF57DR100LC4	4.69	3KW	298rpm	96N.m	49Kg	5320N	3.1

Kaf57dr100ls4reducing motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KAF57DR100LS4	30.28	3KW	46rpm	615N.m	49Kg	7180N	0.95
KAF57DR100LS4	27.34	3KW	51rpm	555N.m	49Kg	7190N	1.05
KAF57DR100LS4	24.05	3KW	58rpm	490N.m	49Kg	7180N	1.2
KAF57DR100LS4	22.71	3KW	62rpm	460N.m	49Kg	7160N	1.3
KAF57DR100LS4	19.34	3KW	72rpm	395N.m	49Kg	7080N	1.45
KAF57DR100LS4	17.57	3KW	80rpm	355N.m	49Kg	7020N	1.55
KAF57DR100LS4	15.22	3KW	92rpm	310N.m	49Kg	6890N	1.7
KAF57DR100LS4	13.25	3KW	106rpm	270N.m	49Kg	6750N	1.9
KAF57DR100LS4	11.92	3KW	117rpm	240N.m	49Kg	6420N	1.7
KAF57DR100LS4	11.26	3KW	124rpm	230N.m	49Kg	6360N	1.8
KAF57DR100LS4	9.59	3KW	146rpm	196N.m	49Kg	6200N	2.1
KAF57DR100LS4	8.71	3KW	161rpm	178N.m	49Kg	6090N	2.2
KAF57DR100LS4	7.55	3KW	186rpm	154N.m	49Kg	5920N	2.4
KAF57DR100LS4	6.57	3KW	213rpm	134N.m	49Kg	5750N	2.6
KAF57DR100LS4	4.69	3KW	298rpm	96N.m	49Kg	5320N	3.1

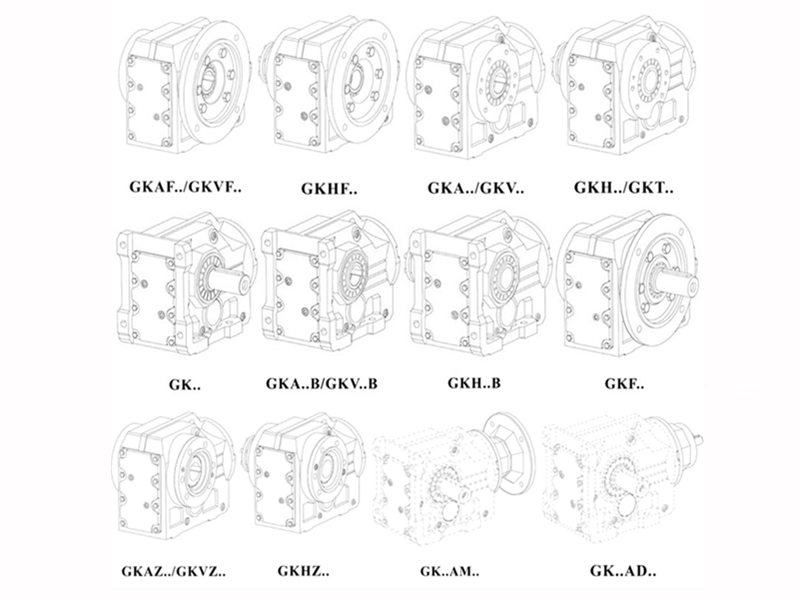

Kaf57dr100lc4ing type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

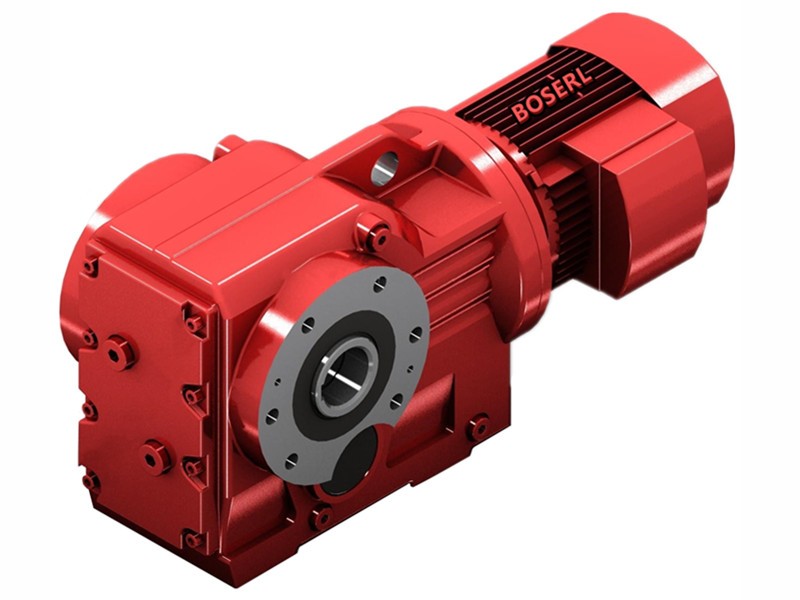

Motor-gear reducer.jpg

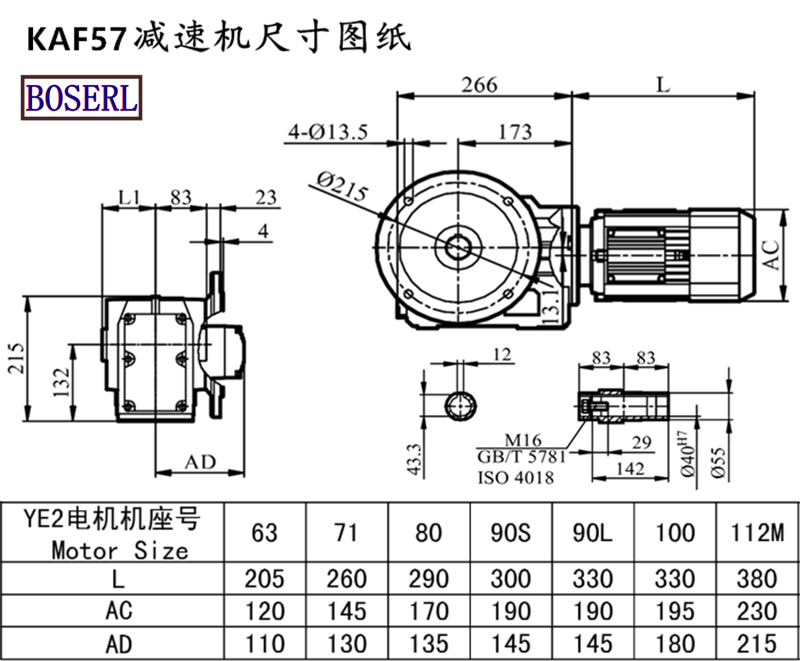

Installation of size drawings for kaf57dr100lc4 reduction motor

Kaf57dr100lc4 deviation plant show: three days in advance

Gear with motorPresentation of application cases:

Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor

KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox

KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
