KAF57R37DT80M4Detailed Information
Keyword: 0. 55 kw electric power to what size of a propeller gear-retarder _ kaf57r37dt80m4_kaf57r37dr71m4
KAF57R37DT80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF57R37DT80M4 | 192 | 0.55KW | 7.20r/min | 655N.m | 50.5kg | 5460N | 0.90 |
| KAF57R37DT80M4 | 166 | 0.55KW | 8.30r/min | 570N.m | 50.5kg | 7870N | 1.05 |
| KAF57R37DT80M4 | 145 | 0.55KW | 9.60r/min | 500N.m | 50.5kg | 8420N | 1.20 |
| KAF57R37DT80M4 | 129 | 0.55KW | 11.0r/min | 445N.m | 50.5kg | 8660N | 1.35 |
| KAF57R37DT80M4 | 111 | 0.55KW | 12.0r/min | 380N.m | 50.5kg | 8960N | 1.55 |
| KAF57R37DT80M4 | 97 | 0.55KW | 14.0r/min | 335N.m | 50.5kg | 9140N | 1.80 |
KAF57R37DR71M4Speed-down electrical parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF57R37DR71M4 | 280 | 0.37KW | 4.90r/min | 630N.m | 46kg | 7350N | 0.95 |
| KAF57R37DR71M4 | 246 | 0.37KW | 5.60r/min | 555N.m | 46kg | 7980N | 1.10 |
| KAF57R37DR71M4 | 215 | 0.37KW | 6.40r/min | 490N.m | 46kg | 8460N | 1.20 |
| KAF57R37DR71M4 | 192 | 0.37KW | 7.20r/min | 435N.m | 46kg | 8720N | 1.40 |
| KAF57R37DR71M4 | 166 | 0.37KW | 8.30r/min | 375N.m | 46kg | 8980N | 1.60 |
| KAF57R37DR71M4 | 129 | 0.37KW | 11.0r/min | 295N.m | 46kg | 9290N | 2.00 |
| KAF57R37DR71M4 | 111 | 0.37KW | 12.0r/min | 250N.m | 46kg | 9460N | 2.40 |
| KAF57R37DR71M4 | 97 | 0.37KW | 14.0r/min | 220N.m | 46kg | 9560N | 2.70 |
KAF57R37DT80M4Speeding machine type:
K57r37dt80m4 bottom foot is fitted with slash gears - umbrella gear reduction power
Ka57br37dt80m4 foot hollow axis with tilt gears - umbrella gear-reducing power
The kv57br37dt80m4 bottom foot larvae axis is equipped with tilt gears - umbrella gear reduction power
Kh57br37dt80m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf57r37dt80m4b5 installation of tilt gear - umbrella gear reduction power
Kaf57r37dt80m4b5 french aerocentric axes fitted with tilt gears - umbrella gear reduction power
Kvf57r37dt80m4b5franco-axis installation of tilt gear - umbrella gear-reducing power
Khf57r37dt80m4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka57r37dt80m4 hollow axle tilt gears - an umbrella gear decelerator
Kv57r37dt80m4 space cores fitted with tilt gears - umbrella gear-reducing power
Kh57r37dt80m4 sky axe locked tilt gear - umbrella gear deviation engine
The kt57r37dt80m4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz57r37dt80m4b14 installation of tilt gear - umbrella gear reduction power
Kvz57r37dt80m4b14 installation of tilt gears - umbrella gear deviation engine
Khz57r37dt80m4b14 french axle locks with tilt gears - umbrella gear reduction power

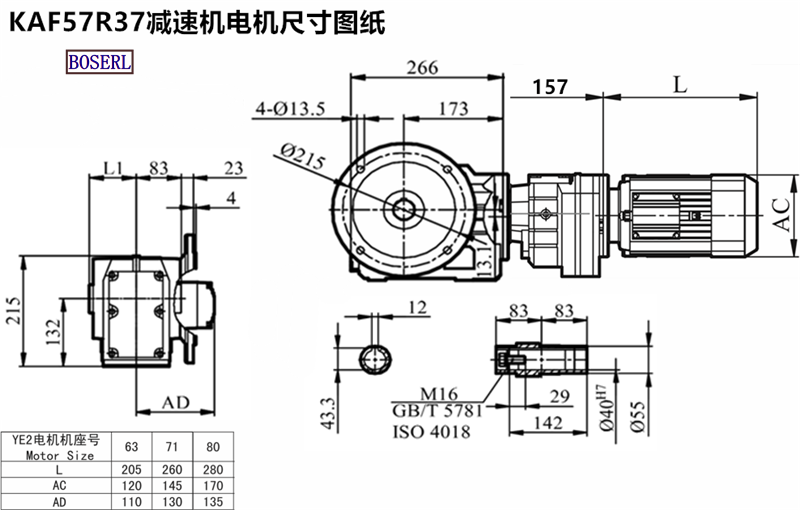

KAF57R37DT80M4Induction Motor 3Ph motors installed size drawings
Kaf57r37dt80m4 deviation power plant, three days' appointmentGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
