KAF57RF37-Y0.18KWDetailed Information
Keywords: 37kw electric power to what extent the straight-angle mid-angle brake _kaf57rf37-y0. 18kw_kaf57rf37-y0. 55kw
KAF57RF37-Y0.18KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF57RF37-Y0.18KW | 544 | 0.18KW | 2.40r/min | 590N.m | 41.5kg | 7690N | 1.00 |
| KAF57RF37-Y0.18KW | 473 | 0.18KW | 2.80r/min | 535N.m | 41.5kg | 8150N | 1.10 |
| KAF57RF37-Y0.18KW | 421 | 0.18KW | 3.10r/min | 455N.m | 41.5kg | 8620N | 1.30 |
| KAF57RF37-Y0.18KW | 362 | 0.18KW | 3.60r/min | 405N.m | 41.5kg | 8840N | 1.45 |
| KAF57RF37-Y0.18KW | 319 | 0.18KW | 4.10r/min | 360N.m | 41.5kg | 9050N | 1.65 |
| KAF57RF37-Y0.18KW | 280 | 0.18KW | 4.70r/min | 300N.m | 41.5kg | 9270N | 1.95 |
| KAF57RF37-Y0.18KW | 246 | 0.18KW | 5.40r/min | 265N.m | 41.5kg | 9400N | 2.20 |
| KAF57RF37-Y0.18KW | 215 | 0.18KW | 6.10r/min | 235N.m | 41.5kg | 9510N | 2.50 |
| KAF57RF37-Y0.18KW | 192 | 0.18KW | 6.90r/min | 210N.m | 41.5kg | 9600N | 2.80 |
| KAF57RF37-Y0.18KW | 166 | 0.18KW | 7.90r/min | 182N.m | 41.5kg | 9690N | 3.30 |
Kaf57rf37-y0. 55kw reduction engine parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF57RF37-Y0.55KW | 192 | 0.55KW | 7.20r/min | 655N.m | 50.5kg | 5460N | 0.90 |
| KAF57RF37-Y0.55KW | 166 | 0.55KW | 8.30r/min | 570N.m | 50.5kg | 7870N | 1.05 |
| KAF57RF37-Y0.55KW | 145 | 0.55KW | 9.60r/min | 500N.m | 50.5kg | 8420N | 1.20 |
| KAF57RF37-Y0.55KW | 129 | 0.55KW | 11.0r/min | 445N.m | 50.5kg | 8660N | 1.35 |
| KAF57RF37-Y0.55KW | 111 | 0.55KW | 12.0r/min | 380N.m | 50.5kg | 8960N | 1.55 |
| KAF57RF37-Y0.55KW | 97 | 0.55KW | 14.0r/min | 335N.m | 50.5kg | 9140N | 1.80 |
KAF57RF37-Y0.18KWSpeeding machine type:
K57rf37-y0. 18kw bottom foot installation of tilt gears - umbrella gear deviation engine
Ka57bf37-y0. 18kw bottom foot hollow axis fitted with tilt gears - umbrella gear reduction power
Kv57brf37-y0. 18kw bottom foot flow axes installation of tilt gears - umbrella gear deviation engine
Kh57brf37-y0. 18kw bottom foot hollow axle locks installed with tilt gears -Right-angle shaft reducer motor
Frf57rf37-y0. 18kwb5 installation of tilt gears - umbrella gear reduction power
Kaf57rf37-y0. 18kwb5 installation of tilt gears - umbrella gear reduction power
Frf57rf37-y0. 18kwb5 installation of tilt gear - umbrella gear-reducing power
Khf57rf37-y0. 18kwb5 franium axle locks fitted with tilt gears - umbrella gear-reducing power
Ka57rf37-y0. 18kw hollow axle tilt gears - umbrella gear-reducing power
Kv57rf37-y0. 18kw space cores fitted with tilt gears - umbrella gear reduction power
Kh57rf37-y0. 18kw sky axes locked tilt gears - umbrella gear deviation engine
Installation of tilt gears on the kt57rf37-y0. 18kw hollow axle - umbrella gear reduction power
Kaz57rf37-y0. 18kwb14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors on the flavour axle (franco z57rf37-y0. 18kwb14)
Dhz57rf37-y0. 18kwb14 franic axle locks fitted with tilt gears - umbrella gear-reducing power

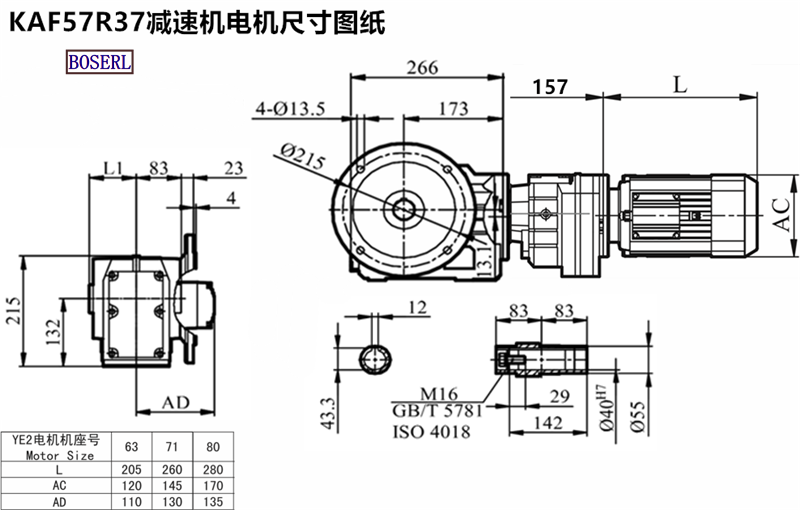

KAF57RF37-Y0.18KWInduction Motor 3Ph motors installed size drawings
KAF57RF37-Y0.18KWWe need to make an appointment three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 37kw electric power k57rf37-y0. 18kw kaf57rf37-y0. 55kw
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF57RF37Y0.18KW减速机样本 |
|
| KAF57RF37Y0.18KW减速机三维图纸 |
|
