KAF67Y112M4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF67Y112M4 | 30.22 | 4KW | 48rpm | 800N.m | 70Kg | 10500N | 1 |
| KAF67Y112M4 | 27.28 | 4KW | 53rpm | 725N.m | 70Kg | 11100N | 1.15 |
| KAF67Y112M4 | 24 | 4KW | 60rpm | 640N.m | 70Kg | 11700N | 1.25 |
| KAF67Y112M4 | 22.66 | 4KW | 63rpm | 605N.m | 70Kg | 11900N | 1.3 |
| KAF67Y112M4 | 19.3 | 4KW | 74rpm | 515N.m | 70Kg | 12300N | 1.5 |
| KAF67Y112M4 | 17.54 | 4KW | 82rpm | 465N.m | 70Kg | 12600N | 1.6 |
| KAF67Y112M4 | 15.19 | 4KW | 95rpm | 405N.m | 70Kg | 12800N | 1.75 |
| KAF67Y112M4 | 13.22 | 4KW | 109rpm | 350N.m | 70Kg | 13000N | 1.9 |
| KAF67Y112M4 | 12.48 | 4KW | 115rpm | 330N.m | 70Kg | 13000N | 1.6 |
| KAF67Y112M4 | 10.63 | 4KW | 135rpm | 285N.m | 70Kg | 13000N | 1.75 |
| KAF67Y112M4 | 9.66 | 4KW | 149rpm | 255N.m | 70Kg | 12900N | 1.85 |
| KAF67Y112M4 | 8.37 | 4KW | 172rpm | 225N.m | 70Kg | 12500N | 2 |
| KAF67Y112M4 | 7.28 | 4KW | 197rpm | 194N.m | 70Kg | 12100N | 2.2 |
| KAF67Y112M4 | 5.2 | 4KW | 276rpm | 138N.m | 70Kg | 11200N | 2.5 |
Kaf67y132m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF67Y132M4 | 30.89 | 7.5KW | 47rpm | 1530N.m | 110Kg | 15500N | 1 |
| KAF67Y132M4 | 29.27 | 7.5KW | 49rpm | 1450N.m | 110Kg | 16000N | 1.05 |
| KAF67Y132M4 | 25.62 | 7.5KW | 56rpm | 1260N.m | 110Kg | 17100N | 1.2 |
| KAF67Y132M4 | 23.08 | 7.5KW | 63rpm | 1140N.m | 110Kg | 17700N | 1.35 |
| KAF67Y132M4 | 20.25 | 7.5KW | 71rpm | 1000N.m | 110Kg | 18300N | 1.5 |
| KAF67Y132M4 | 17.87 | 7.5KW | 81rpm | 880N.m | 110Kg | 18500N | 1.65 |
| KAF67Y132M4 | 15.84 | 7.5KW | 91rpm | 780N.m | 110Kg | 18200N | 1.8 |
| KAF67Y132M4 | 13.52 | 7.5KW | 107rpm | 670N.m | 110Kg | 17700N | 2 |
| KAF67Y132M4 | 12.36 | 7.5KW | 117rpm | 610N.m | 110Kg | 17000N | 1.65 |
| KAF67Y132M4 | 10.84 | 7.5KW | 133rpm | 535N.m | 110Kg | 16600N | 1.85 |
| KAF67Y132M4 | 9.56 | 7.5KW | 151rpm | 470N.m | 110Kg | 16300N | 2 |
| KAF67Y132M4 | 8.48 | 7.5KW | 170rpm | 420N.m | 110Kg | 15900N | 2.1 |
| KAF67Y132M4 | 7.24 | 7.5KW | 200rpm | 355N.m | 110Kg | 15400N | 2.3 |
Kaf67 gear-reducing box electrics type:
K. Dr. bottom foot slashing gears - umbrella gear reduction
Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power
Kv. B dr. bottom
Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor
Kf. Dr. B5 francs with slash gears - umbrella gear reduction
Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power
Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power
Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power
Ka. Dr. empty axle tilt gears - umbrella gear reduction power
Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator
Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power
Kt. Dr. hollow gears installed on the hollow axle
Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine
Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant
Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

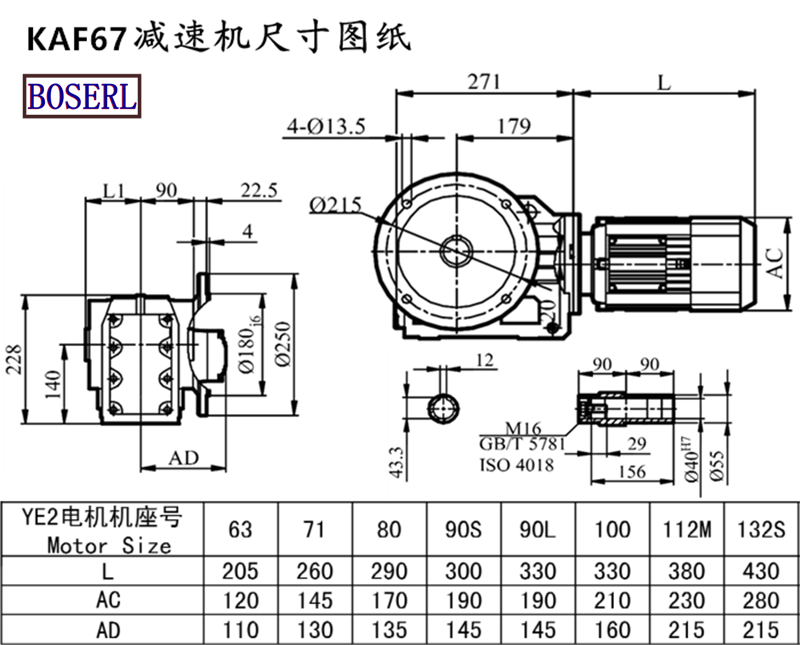

Installation of size drawings for the kaf67 gear-reducing tank electric unit
Showcasing of kaf67 gear-retarder electric power plant: three days in advance at the factory
Gear with motorPresentation of application cases:
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
