A payload of 54 tons of charger speed-reducing machine _kaf67dm100ls4_boserl moving kaf67dr100l4 production plant

KAF67DM100LS4Detailed Information

prevnext

KAF67DM100LS4

TEL：Email:[email protected]

详细信息

Keyword: load 54 tons of loaderretarder_kaf67dm100ls4_kaf67dr100l4

KAF67DM100LS4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KAF67DM100LS4	44.32	3KW	32rpm	900N.m	55Kg	9450N	0.9
KAF67DM100LS4	38.39	3KW	36rpm	785N.m	55Kg	10600N	1
KAF67DM100LS4	35.62	3KW	39rpm	725N.m	55Kg	11100N	1.15
KAF67DM100LS4	30.22	3KW	46rpm	615N.m	55Kg	11800N	1.35
KAF67DM100LS4	27.28	3KW	51rpm	555N.m	55Kg	12100N	1.45
KAF67DM100LS4	24	3KW	58rpm	490N.m	55Kg	12400N	1.65
KAF67DM100LS4	22.66	3KW	62rpm	460N.m	55Kg	12600N	1.7
KAF67DM100LS4	19.3	3KW	73rpm	390N.m	55Kg	12800N	1.95
KAF67DM100LS4	17.54	3KW	80rpm	355N.m	55Kg	13000N	2.1
KAF67DM100LS4	15.19	3KW	90rpm	310N.m	55Kg	13000N	2.2
KAF67DM100LS4	13.22	3KW	106rpm	270N.m	55Kg	13000N	2.5
KAF67DM100LS4	12.48	3KW	112rpm	255N.m	55Kg	13000N	2.1
KAF67DM100LS4	10.63	3KW	132rpm	215N.m	55Kg	13000N	2.3
KAF67DM100LS4	9.66	3KW	145rpm	198N.m	55Kg	13000N	2.4

Kaf67dr100l4reducing motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KAF67DR100L4	44.32	3KW	32rpm	900N.m	55Kg	9450N	0.9
KAF67DR100L4	38.39	3KW	36rpm	785N.m	55Kg	10600N	1
KAF67DR100L4	35.62	3KW	39rpm	725N.m	55Kg	11100N	1.15
KAF67DR100L4	30.22	3KW	46rpm	615N.m	55Kg	11800N	1.35
KAF67DR100L4	27.28	3KW	51rpm	555N.m	55Kg	12100N	1.45
KAF67DR100L4	24	3KW	58rpm	490N.m	55Kg	12400N	1.65
KAF67DR100L4	22.66	3KW	62rpm	460N.m	55Kg	12600N	1.7
KAF67DR100L4	19.3	3KW	73rpm	390N.m	55Kg	12800N	1.95
KAF67DR100L4	17.54	3KW	80rpm	355N.m	55Kg	13000N	2.1
KAF67DR100L4	15.19	3KW	90rpm	310N.m	55Kg	13000N	2.2
KAF67DR100L4	13.22	3KW	106rpm	270N.m	55Kg	13000N	2.5
KAF67DR100L4	12.48	3KW	112rpm	255N.m	55Kg	13000N	2.1
KAF67DR100L4	10.63	3KW	132rpm	215N.m	55Kg	13000N	2.3
KAF67DR100L4	9.66	3KW	145rpm	198N.m	55Kg	13000N	2.4

Kaf67dm100ls4ing type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

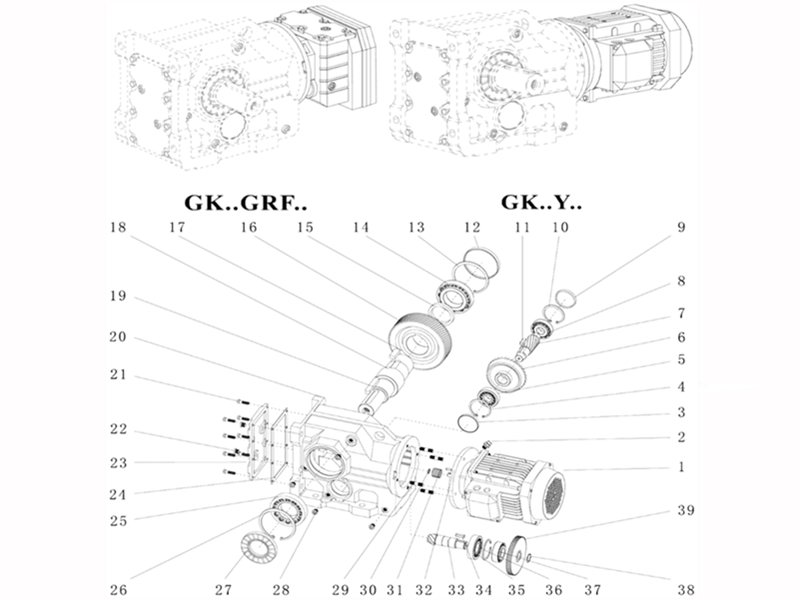

Motor-gear reducer.jpg

Kaf67dm100ls4ing motors installed size drawings

Kaf67dm100ls4 showcasing: a three-day appointment at the factory

Gear with motorPresentation of application cases:

Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor

KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox

KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
