KAF77DRS112M4Detailed Information

prevnext

KAF77DRS112M4

TEL：Email:[email protected]

详细信息

Keywords: 77 tons of loader reduction machine _kaf77drs112m4_kaf77dm112m4

KAF77DRS112M4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KAF77DRS112M4	64.75	4KW	22rpm	1720N.m	94Kg	14100N	0.9
KAF77DRS112M4	58.34	4KW	25rpm	1550N.m	94Kg	15400N	1
KAF77DRS112M4	51.18	4KW	28rpm	1360N.m	94Kg	16600N	1.15
KAF77DRS112M4	45.16	4KW	32rpm	1200N.m	94Kg	17400N	1.3
KAF77DRS112M4	40.04	4KW	36rpm	1070N.m	94Kg	18000N	1.45
KAF77DRS112M4	38.39	4KW	37rpm	1020N.m	94Kg	18200N	1.45
KAF77DRS112M4	35.2	4KW	41rpm	940N.m	94Kg	18500N	1.65
KAF77DRS112M4	30.89	4KW	46rpm	820N.m	94Kg	18900N	1.9
KAF77DRS112M4	29.27	4KW	49rpm	780N.m	94Kg	19000N	2
KAF77DRS112M4	25.62	4KW	56rpm	680N.m	94Kg	19300N	2.3
KAF77DRS112M4	23.08	4KW	62rpm	615N.m	94Kg	19500N	2.5
KAF77DRS112M4	20.25	4KW	71rpm	540N.m	94Kg	19600N	2.8

KAF77DM112M4Speed-down electrical parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KAF77DM112M4	64.75	4KW	22rpm	1720N.m	94Kg	14100N	0.9
KAF77DM112M4	58.34	4KW	25rpm	1550N.m	94Kg	15400N	1
KAF77DM112M4	51.18	4KW	28rpm	1360N.m	94Kg	16600N	1.15
KAF77DM112M4	45.16	4KW	32rpm	1200N.m	94Kg	17400N	1.3
KAF77DM112M4	40.04	4KW	36rpm	1070N.m	94Kg	18000N	1.45
KAF77DM112M4	38.39	4KW	37rpm	1020N.m	94Kg	18200N	1.45
KAF77DM112M4	35.2	4KW	41rpm	940N.m	94Kg	18500N	1.65
KAF77DM112M4	30.89	4KW	46rpm	820N.m	94Kg	18900N	1.9
KAF77DM112M4	29.27	4KW	49rpm	780N.m	94Kg	19000N	2
KAF77DM112M4	25.62	4KW	56rpm	680N.m	94Kg	19300N	2.3
KAF77DM112M4	23.08	4KW	62rpm	615N.m	94Kg	19500N	2.5
KAF77DM112M4	20.25	4KW	71rpm	540N.m	94Kg	19600N	2.8

KAF77DRS112M4Speeding machine type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

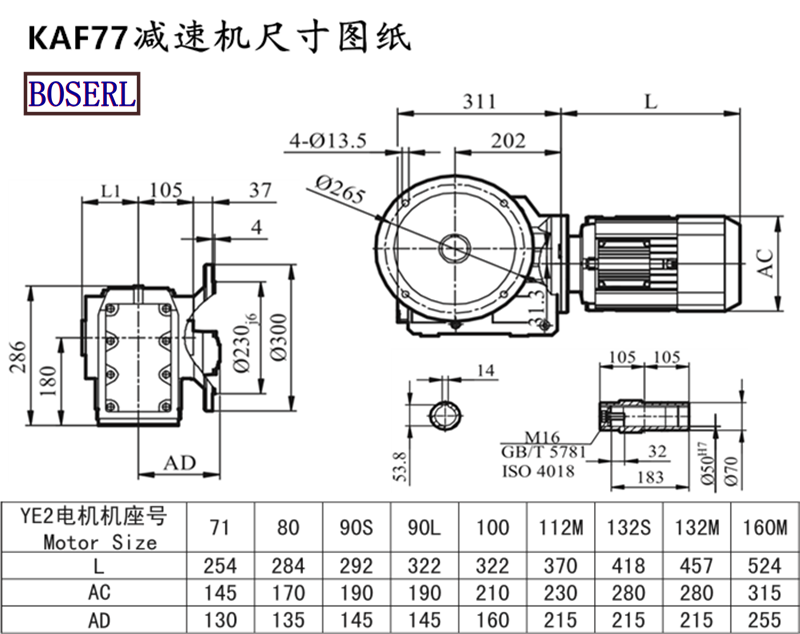

KAF77DRS112M4Induction Motor 3Ph motors installed size drawings

KAF77DRS112M4At thereducing plant: three days in advance

Gear with motorPresentation of application cases:

Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor

KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox

KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
