KAF77R37DRS63S4Detailed Information
Keyword: 0. 37 kw electric power to what extent the hollow cupretarder_kaf77r37drrs63s4_kaf77r37dve80n4
KAF77R37DRS63S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF77R37DRS63S4 | 2717 | 0.12KW | 0.51r/min | 1840N.m | 71kg | 11500N | 0.85 |
| KAF77R37DRS63S4 | 2370 | 0.12KW | 0.58r/min | 1530N.m | 71kg | 15500N | 1.00 |
| KAF77R37DRS63S4 | 2050 | 0.12KW | 0.67r/min | 1430N.m | 71kg | 16100N | 1.10 |
| KAF77R37DRS63S4 | 1772 | 0.12KW | 0.78r/min | 1220N.m | 71kg | 17300N | 1.25 |
| KAF77R37DRS63S4 | 1514 | 0.12KW | 0.91r/min | 1040N.m | 71kg | 18100N | 1.50 |
| KAF77R37DRS63S4 | 1388 | 0.12KW | 0.99r/min | 960N.m | 71kg | 18500N | 1.60 |
| KAF77R37DRS63S4 | 1218 | 0.12KW | 1.10r/min | 840N.m | 71kg | 18900N | 1.85 |
| KAF77R37DRS63S4 | 1053 | 0.12KW | 1.30r/min | 735N.m | 71kg | 19200N | 2.10 |
| KAF77R37DRS63S4 | 924 | 0.12KW | 1.50r/min | 645N.m | 71kg | 19400N | 2.40 |
| KAF77R37DRS63S4 | 815 | 0.12KW | 1.70r/min | 570N.m | 71kg | 19600N | 2.70 |
| KAF77R37DRS63S4 | 709 | 0.12KW | 2.00r/min | 445N.m | 71kg | 19800N | 3.50 |
| KAF77R37DRS63S4 | 622 | 0.12KW | 2.20r/min | 390N.m | 71kg | 19900N | 3.90 |
Kaf77r37dve80n4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF77R37DVE80N4 | 367 | 0.75KW | 3.90r/min | 1670N.m | 81.5kg | 14400N | 0.95 |
| KAF77R37DVE80N4 | 328 | 0.75KW | 4.40r/min | 1490N.m | 81.5kg | 15800N | 1.05 |
| KAF77R37DVE80N4 | 290 | 0.75KW | 5.00r/min | 1320N.m | 81.5kg | 16800N | 1.15 |
| KAF77R37DVE80N4 | 252 | 0.75KW | 5.70r/min | 1140N.m | 81.5kg | 17700N | 1.35 |
| KAF77R37DVE80N4 | 221 | 0.75KW | 6.50r/min | 1000N.m | 81.5kg | 18300N | 1.55 |
KAF77R37DRS63S4Speeding machine type:
K77r37drrs63s4 bottom foot is fitted with slash gears - umbrella gear reduction power
Ka77br37drrs63s4 bottom foot hollow axis with tilt gear - umbrella gear-reducing motor
The kv77br37drrs63s4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh77br37drrs63s4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf77r37drrs63s4b5 installation of tilt gears - umbrella gear reduction power
Kaf77r37drrs63s4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf77r37drrs63s4b5franco-axis installation of tilt gears - umbrella gear-reducing power
Khf77r37drrs63s4b5 french axle locks fitted with tilt gears - an umbrella gear-reducing power plant
Ka77r37drrs63s4 hollow axle tilt gears - an umbrella gear decelerator power plant
Kv77r37drrs63s4 space cores fitted with tilt gears - umbrella gear reduction power
Kh77r37drrs63s4 empty axle locks slashing gears - an umbrella gear-reducing motor
The kt77r37drrs63s4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz77r37drrs63s4b14 installation of tilt gear - umbrella gear-reducing power
Kvz77r37drrs63s4b14 flannel axles installed slashing gears - umbrella gear reduction power
Khz77r37drrs63s4b14 franium axle locks fitted with tilt gears - umbrella gear reduction power

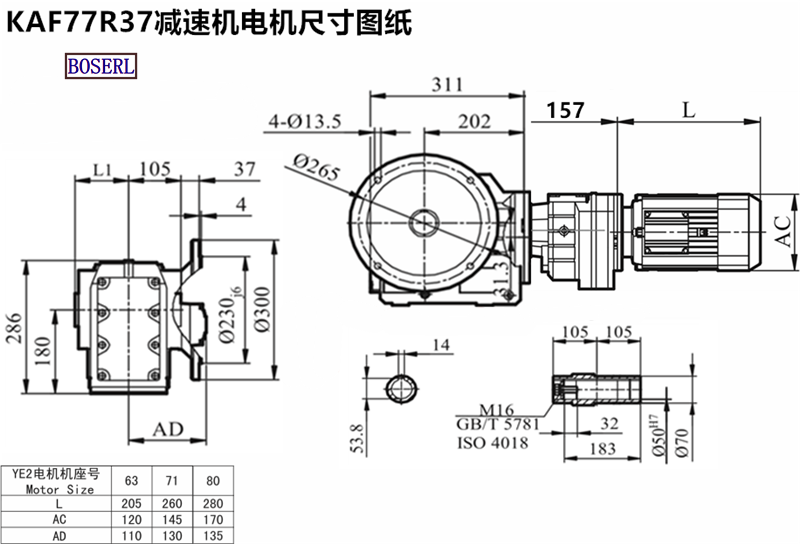

KAF77R37DRS63S4Induction Motor 3Ph motors installed size drawings
Kaf77r37drrs63s4 deviation power plant, three days' appointmentGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: 0. 37kw electric power with an empty glass speed retarder kaf77r37rs63s4 kaf77r37dve80n4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF77R37DRS63S4减速机样本 |
|
| KAF77R37DRS63S4减速机三维图纸 |
|
