KAF77R37DT63L4Detailed Information
Keyword: how big 3kw power is with a hollow cup brake _kaf77r37dt63l4_kaf77r37dre80n4
KAF77R37DT63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF77R37DT63L4 | 1514 | 0.18KW | 0.87r/min | 1710N.m | 71.5kg | 14100N | 0.90 |
| KAF77R37DT63L4 | 1388 | 0.18KW | 0.95r/min | 1570N.m | 71.5kg | 15200N | 1.00 |
| KAF77R37DT63L4 | 1218 | 0.18KW | 1.10r/min | 1380N.m | 71.5kg | 16500N | 1.10 |
| KAF77R37DT63L4 | 1053 | 0.18KW | 1.20r/min | 1200N.m | 71.5kg | 17400N | 1.30 |
| KAF77R37DT63L4 | 924 | 0.18KW | 1.40r/min | 1050N.m | 71.5kg | 18100N | 1.45 |
| KAF77R37DT63L4 | 815 | 0.18KW | 1.60r/min | 930N.m | 71.5kg | 18600N | 1.65 |
| KAF77R37DT63L4 | 709 | 0.18KW | 1.90r/min | 760N.m | 71.5kg | 19100N | 2.00 |
| KAF77R37DT63L4 | 622 | 0.18KW | 2.10r/min | 665N.m | 71.5kg | 19300N | 2.30 |
| KAF77R37DT63L4 | 552 | 0.18KW | 2.40r/min | 600N.m | 71.5kg | 19500N | 2.60 |
| KAF77R37DT63L4 | 485 | 0.18KW | 2.70r/min | 525N.m | 71.5kg | 19600N | 2.90 |
| KAF77R37DT63L4 | 428 | 0.18KW | 3.10r/min | 465N.m | 71.5kg | 19800N | 3.30 |
| KAF77R37DT63L4 | 367 | 0.18KW | 3.60r/min | 410N.m | 71.5kg | 19800N | 3.80 |
Kaf77r37dre80n4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF77R37DRE80N4 | 367 | 0.75KW | 3.90r/min | 1670N.m | 81.5kg | 14400N | 0.95 |
| KAF77R37DRE80N4 | 328 | 0.75KW | 4.40r/min | 1490N.m | 81.5kg | 15800N | 1.05 |
| KAF77R37DRE80N4 | 290 | 0.75KW | 5.00r/min | 1320N.m | 81.5kg | 16800N | 1.15 |
| KAF77R37DRE80N4 | 252 | 0.75KW | 5.70r/min | 1140N.m | 81.5kg | 17700N | 1.35 |
| KAF77R37DRE80N4 | 221 | 0.75KW | 6.50r/min | 1000N.m | 81.5kg | 18300N | 1.55 |
KAF77R37DT63L4Speeding machine type:
K77r37dt63l4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka77br37dt63l4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv77br37dt63l4 bottom foot larvae axis is equipped with tilt gears - umbrella gear-reducing power
Kh77br37dt63l4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf77r37dt63l4b5 installation of tilt gears - umbrella gear reduction power
Kaf77r37dt63l4b5 french aerocentric axis is equipped with tilt gears - umbrella gear reduction power
Kvf77r37dt63l4b5franco-axis installation of tilt gear - umbrella gear-reducing power
Khf77r37dt63l4b5farland axial axle locks fitted with tilt gears - umbrella gear reduction power
Ka77r37dt63l4 hollow axle tilt gears - umbrella gear deceleration power
Kv77r37dt63l4 hole gears - umbrella gear-reducing motors
Kh77r37dt63l4 empty axle locks slashing gears - umbrella gear reduction power
The kt77r37dt63l4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz77r37dt63l4b14 installation of tilt gear - umbrella gear reduction power
Kvz77r37dt63l4b14 franco-axis installation of tilt gears - umbrella gear-reducing power
Dhz77r37dt63l4b14 franium axle locks fitted with tilt gears - umbrella gear reduction power
Kaf77r37dt63l4 power-reducing plantGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How big a 3kw power can be with an empty cup speed-retarder kaf77r37dt63l4 kaf77r37dre80n4
- 上一条KAF77R37DT80S4
- 下一条KAF77R37DT80N4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF77R37DT63L4减速机样本 |
|

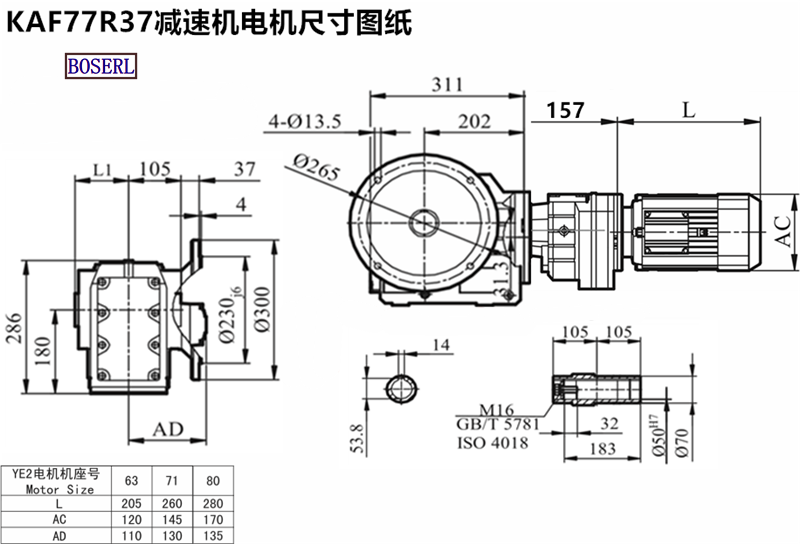

| KAF77R37DT63L4减速机三维图纸 |
|
