KAF77R37DT71S4Detailed Information
Keywords: how much kw power does it have
KAF77R37DT71S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF77R37DT71S4 | 1053 | 0.25KW | 1.20r/min | 1720N.m | 75.5kg | 14000N | 0.90 |
| KAF77R37DT71S4 | 924 | 0.25KW | 1.40r/min | 1510N.m | 75.5kg | 15600N | 1.00 |
| KAF77R37DT71S4 | 815 | 0.25KW | 1.60r/min | 1330N.m | 75.5kg | 16700N | 1.15 |
| KAF77R37DT71S4 | 709 | 0.25KW | 1.80r/min | 1110N.m | 75.5kg | 17800N | 1.40 |
| KAF77R37DT71S4 | 622 | 0.25KW | 2.10r/min | 970N.m | 75.5kg | 18400N | 1.60 |
| KAF77R37DT71S4 | 552 | 0.25KW | 2.40r/min | 870N.m | 75.5kg | 18700N | 1.75 |
| KAF77R37DT71S4 | 485 | 0.25KW | 2.70r/min | 765N.m | 75.5kg | 19100N | 2.00 |
| KAF77R37DT71S4 | 428 | 0.25KW | 3.00r/min | 675N.m | 75.5kg | 19300N | 2.30 |
| KAF77R37DT71S4 | 367 | 0.25KW | 3.50r/min | 590N.m | 75.5kg | 19500N | 2.60 |
| KAF77R37DT71S4 | 328 | 0.25KW | 4.00r/min | 525N.m | 75.5kg | 19600N | 2.90 |
| KAF77R37DT71S4 | 290 | 0.25KW | 4.50r/min | 465N.m | 75.5kg | 19700N | 3.30 |
| KAF77R37DT71S4 | 252 | 0.25KW | 5.20r/min | 400N.m | 75.5kg | 19900N | 3.80 |
| KAF77R37DT71S4 | 221 | 0.25KW | 5.90r/min | 350N.m | 75.5kg | 19900N | 4.40 |
| KAF77R37DT71S4 | 195 | 0.25KW | 6.70r/min | 310N.m | 75.5kg | 20000N | 5.00 |
| KAF77R37DT71S4 | 175 | 0.25KW | 7.40r/min | 270N.m | 75.5kg | 20000N | 5.60 |
Kaf77r37dre80k4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF77R37DRE80K4 | 485 | 0.55KW | 2.80r/min | 1660N.m | 80.5kg | 14600N | 0.95 |
| KAF77R37DRE80K4 | 428 | 0.55KW | 3.20r/min | 1460N.m | 80.5kg | 16000N | 1.05 |
| KAF77R37DRE80K4 | 367 | 0.55KW | 3.80r/min | 1260N.m | 80.5kg | 17100N | 1.20 |
| KAF77R37DRE80K4 | 328 | 0.55KW | 4.20r/min | 1120N.m | 80.5kg | 17800N | 1.35 |
| KAF77R37DRE80K4 | 290 | 0.55KW | 4.80r/min | 1000N.m | 80.5kg | 18300N | 1.55 |
| KAF77R37DRE80K4 | 252 | 0.55KW | 5.50r/min | 860N.m | 80.5kg | 18800N | 1.80 |
| KAF77R37DRE80K4 | 221 | 0.55KW | 6.20r/min | 755N.m | 80.5kg | 19100N | 2.00 |
| KAF77R37DRE80K4 | 195 | 0.55KW | 7.10r/min | 665N.m | 80.5kg | 19300N | 2.30 |
| KAF77R37DRE80K4 | 175 | 0.55KW | 7.90r/min | 595N.m | 80.5kg | 19500N | 2.60 |
| KAF77R37DRE80K4 | 154 | 0.55KW | 9.00r/min | 525N.m | 80.5kg | 19600N | 3.00 |
KAF77R37DT71S4Speeding machine type:
K77r37dt71s4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka77br37dt71s4 foot hollow axis with slash gears - umbrella gear-reducing power
The kv77br37dt71s4 bottom foot larvae axis is equipped with tilt gears - umbrella gear reduction power
Kh77br37dt71s4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf77r37dt71s4b5 installation of tilt gears - umbrella gear reduction power
Kaf77r37dt71s4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf77r37dt71s4b5francocardiograms installed with tilt gears - umbrella gear-reducing power
Khf77r37dt71s4b5 franium axial axle locks fitted with tilt gears - umbrella gear-reducing motors
Ka77r37dt71s4 hollow axle tilt gears - umbrella gear reduction power
Kv77r37dt71s4 spaced axles with tilt gears - umbrella gear reduction power
Kh77r37dt71s4 empty axle locks slashing gears - umbrella gear reduction power
The kt77r37dt71s4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant
Kaz77r37dt71s4b14 installation of tilt gear - umbrella gear reduction power
Kvz77r37dt71s4b14 flannel axles installed slashing gears - umbrella gear reduction power
Khz77r37dt71s4b14 french axial axle locks fitted with tilt gears - umbrella gear reduction power

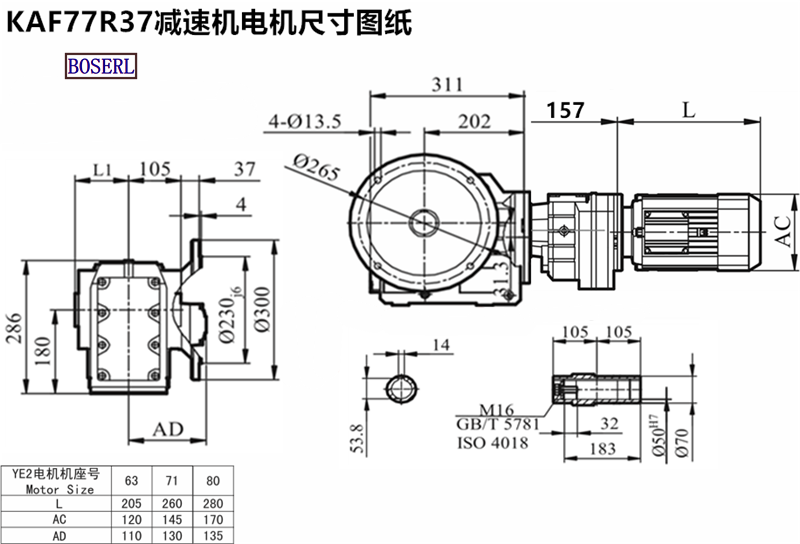

KAF77R37DT71S4Induction Motor 3Ph motors installed size drawings
Kaf77r37dt71s4reducing power plantGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: How big is the 11kw electric power with a hollow cup speed-retarder
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF77R37DT71S4减速机样本 |
|
| KAF77R37DT71S4减速机三维图纸 |
|
