KAF87DVE180LC4Detailed Information

prevnext

KAF87DVE180LC4

TEL：Email:[email protected]

详细信息

Keyword: rotation of 93 tons of loader reduction machine _kaf87dve180lc4_kaf87dv180lc4

KAF87DVE180LC4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KAF87DVE180LC4	31.39	15KW	47rpm	3080N.m	205Kg	17300N	0.9
KAF87DVE180LC4	27.88	15KW	52rpm	2730N.m	205Kg	17600N	0.95
KAF87DVE180LC4	24.92	15KW	59rpm	2440N.m	205Kg	17800N	1
KAF87DVE180LC4	22.41	15KW	65rpm	2200N.m	205Kg	18000N	1.05
KAF87DVE180LC4	19.45	15KW	75rpm	1910N.m	205Kg	18000N	1.2
KAF87DVE180LC4	17.42	15KW	84rpm	1710N.m	205Kg	18000N	1.3
KAF87DVE180LC4	16	15KW	91rpm	1570N.m	205Kg	16800N	1.15
KAF87DVE180LC4	14.45	15KW	101rpm	1420N.m	205Kg	17800N	1.5
KAF87DVE180LC4	12.56	15KW	116rpm	1230N.m	205Kg	17600N	1.6
KAF87DVE180LC4	11.17	15KW	131rpm	1100N.m	205Kg	16600N	1.35
KAF87DVE180LC4	10	15KW	146rpm	980N.m	205Kg	16400N	1.55
KAF87DVE180LC4	8.29	15KW	176rpm	810N.m	205Kg	16000N	1.7
KAF87DVE180LC4	7.21	15KW	202rpm	705N.m	205Kg	15700N	1.85

Kaf87dv180lc4 reduction motor parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
KAF87DV180LC4	31.39	15KW	47rpm	3080N.m	205Kg	17300N	0.9
KAF87DV180LC4	27.88	15KW	52rpm	2730N.m	205Kg	17600N	0.95
KAF87DV180LC4	24.92	15KW	59rpm	2440N.m	205Kg	17800N	1
KAF87DV180LC4	22.41	15KW	65rpm	2200N.m	205Kg	18000N	1.05
KAF87DV180LC4	19.45	15KW	75rpm	1910N.m	205Kg	18000N	1.2
KAF87DV180LC4	17.42	15KW	84rpm	1710N.m	205Kg	18000N	1.3
KAF87DV180LC4	16	15KW	91rpm	1570N.m	205Kg	16800N	1.15
KAF87DV180LC4	14.45	15KW	101rpm	1420N.m	205Kg	17800N	1.5
KAF87DV180LC4	12.56	15KW	116rpm	1230N.m	205Kg	17600N	1.6
KAF87DV180LC4	11.17	15KW	131rpm	1100N.m	205Kg	16600N	1.35
KAF87DV180LC4	10	15KW	146rpm	980N.m	205Kg	16400N	1.55
KAF87DV180LC4	8.29	15KW	176rpm	810N.m	205Kg	16000N	1.7
KAF87DV180LC4	7.21	15KW	202rpm	705N.m	205Kg	15700N	1.85

Kaf87dve180lc4ing type:

K. Dr. bottom foot slashing gears - umbrella gear reduction

Ka. B. Dr. bottom-foot hollow axle with tilt gears -- umbrella gear-reducing power

Kv. B dr. bottom

Kh. B dr. the bottom hollow axle locks with tilt gearsRight-angle shaft reducer motor

Kf. Dr. B5 francs with slash gears - umbrella gear reduction

Kaf. Dr. B5-franco-axes with tilt gears - umbrella gear reduction power

Kvf. Dr. B5-franco-axes with slash gears -- umbrella gear-reducing power

Khf. Dr. B5-farland axle locks with tilt gears - umbrella gear reduction power

Ka. Dr. empty axle tilt gears - umbrella gear reduction power

Kv. Dr. Specific cardiac axle with tilt gears-- an umbrella gear decelerator

Kh. Dr. empty axle locks slashing gears - umbrella gearreducing power

Kt. Dr. hollow gears installed on the hollow axle

Kaz. Dr. B14farland axis with tilt gear - umbrella gear deviation engine

Kvz. Dr. B14-franco-axis with a tilt gear -- an umbrella gear-reducing power plant

Khz. Dr. B14 axes locks with tilt gears - umbrella gear-reducing power

Motor-gear reducer.jpg

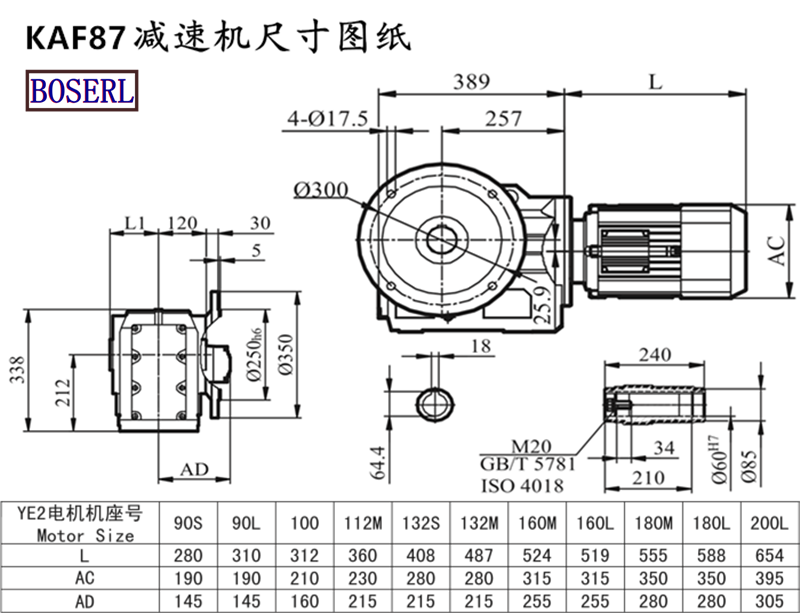

Kaf87dve180lc4reducing motors installed size drawings:

Kaf87dve180lc4 deviation plant show: three days in advance at the plant

Gear with motorPresentation of application cases:

Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor

KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox

KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
