KAF87R57DM80S4Detailed Information
Keyword: 0. 25kw's carnival deviator_kaf87r57dm80s4_kaf87r57drrs71ms4
KAF87R57DM80S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87R57DM80S4 | 951 | 0.55KW | 1.40r/min | 3250N.m | 118kg | 26500N | 0.85 |
| KAF87R57DM80S4 | 837 | 0.55KW | 1.60r/min | 2840N.m | 118kg | 27100N | 0.95 |
| KAF87R57DM80S4 | 726 | 0.55KW | 1.90r/min | 2470N.m | 118kg | 27600N | 1.10 |
| KAF87R57DM80S4 | 638 | 0.55KW | 2.20r/min | 2180N.m | 118kg | 27900N | 1.25 |
| KAF87R57DM80S4 | 562 | 0.55KW | 2.50r/min | 1910N.m | 118kg | 28100N | 1.40 |
| KAF87R57DM80S4 | 474 | 0.55KW | 2.90r/min | 1610N.m | 118kg | 28400N | 1.70 |
| KAF87R57DM80S4 | 426 | 0.55KW | 3.20r/min | 1440 N.m | 118kg | 28500N | 1.85 |
| KAF87R57DM80S4 | 373 | 0.55KW | 3.70r/min | 1270N.m | 118kg | 28600N | 2.10 |
| KAF87R57DM80S4 | 330 | 0.55KW | 4.20r/min | 1100N.m | 118kg | 28700N | 2.40 |
| KAF87R57DM80S4 | 294 | 0.55KW | 4.70r/min | 990N.m | 118kg | 28800N | 2.70 |
| KAF87R57DM80S4 | 250 | 0.55KW | 5.50r/min | 860N.m | 118kg | 28900N | 3.10 |
| KAF87R57DM80S4 | 236 | 0.55KW | 5.80r/min | 810N.m | 118kg | 28900N | 3.30 |
| KAF87R57DM80S4 | 201 | 0.55KW | 6.90r/min | 685N.m | 118kg | 28900N | 3.90 |
Kaf87r57drs71ms4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87R57DRS71MS4 | 2088 | 0.25KW | 0.62r/min | 3390N.m | 113kg | 26300N | 0.80 |
| KAF87R57DRS71MS4 | 1854 | 0.25KW | 0.70r/min | 3010N.m | 113kg | 26900N | 0.90 |
| KAF87R57DRS71MS4 | 1657 | 0.25KW | 0.78r/min | 2690N.m | 113kg | 27300N | 1.00 |
| KAF87R57DRS71MS4 | 1415 | 0.25KW | 0.92r/min | 2290N.m | 113kg | 27800N | 1.15 |
| KAF87R57DRS71MS4 | 1229 | 0.25KW | 1.10r/min | 1990N.m | 113kg | 28100N | 1.35 |
| KAF87R57DRS71MS4 | 1078 | 0.25KW | 1.20r/min | 1730N.m | 113kg | 28300N | 1.55 |
| KAF87R57DRS71MS4 | 951 | 0.25KW | 1.40r/min | 1500N.m | 113kg | 28500N | 1.80 |
| KAF87R57DRS71MS4 | 837 | 0.25KW | 1.60r/min | 1310N.m | 113kg | 28600N | 2.10 |
| KAF87R57DRS71MS4 | 726 | 0.25KW | 1.80r/min | 1130N.m | 113kg | 28700N | 2.40 |
| KAF87R57DRS71MS4 | 638 | 0.25KW | 2.00r/min | 1010N.m | 113kg | 28800N | 2.70 |
KAF87R57DM80S4Speeding machine type:
K87r57dm80s4 bottom foot is equipped with tilt gears - umbrella gear reduction power
Ka87br57dm80s4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv87br57dm80s4 foot larvae axis installed with tilt gears - umbrella gear-reducing motors
Kh87br57dm80s 4-foot hollow-axis locks with tilt gears.Right-angle shaft reducer motor
Frf87r57dm80s4b5 installation of tilt gears - umbrella gear reduction power
Kaf87r57dm80s4b5 french aerocentric axis installed with tilt gears - umbrella gear-reducing power
Kvf87r57dm80s4b5 flannel axles with tilt gears - umbrella gear-reducing power
Khf87r57dm80s4b5 franium axial axle locks fitted with tilt gears - umbrella gear reduction power
Ka87r57dm80s4 hollow axle tilt gears - an umbrella gear reduction power
Kv87r57dm80s4 spaced axles with tilt gears - umbrella gear reduction power
Kh87r57dm80s4 hollow axle locks slashing gears - umbrella gear deceleration power
The kt87r57dm80s4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz87r57dm80s4b14 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvz87r57dm80s4b14 installation of tilt gears - umbrella gear reduction power
Khz87r57dm80s4b14 french axial axle locks fitted with tilt gears - an umbrella gear-reducing motor

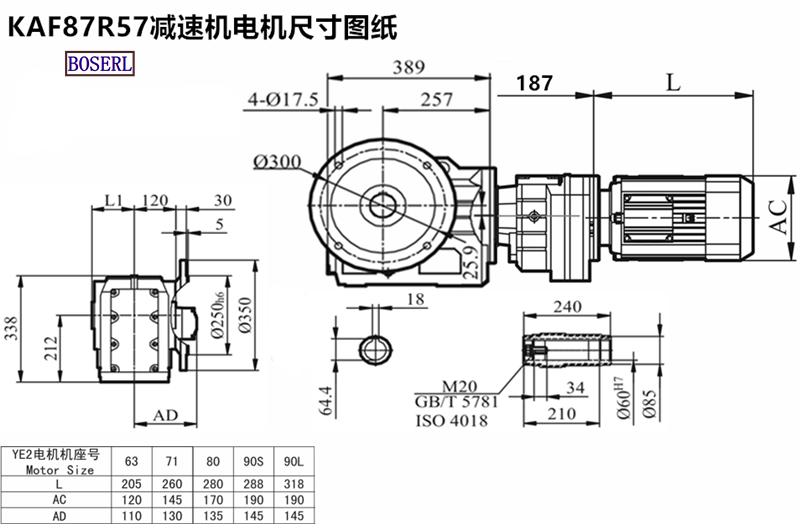

KAF87R57DM80S4Induction Motor 3Ph motors installed size drawings
Kaf87r57dm80s4 deviation power plant. please make an appointment three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
