KAF87R57DM90M4Detailed Information
Keyword: what is the direct angle of the kw's apocalyptic axle decelerator_kaf87r57dm90m4_kaf87r57dre71m4
KAF87R57DM90M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87R57DM90M4 | 474 | 1.1KW | 3.00r/min | 3200N.m | 123kg | 26600N | 0.85 |
| KAF87R57DM90M4 | 426 | 1.1KW | 3.30r/min | 2870N.m | 123kg | 27100N | 0.95 |
| KAF87R57DM90M4 | 373 | 1.1KW | 3.80r/min | 2530N.m | 123kg | 27500N | 1.05 |
| KAF87R57DM90M4 | 330 | 1.1KW | 4.30r/min | 2210N.m | 123kg | 27800N | 1.20 |
| KAF87R57DM90M4 | 294 | 1.1KW | 4.80r/min | 1980N.m | 123kg | 28100N | 1.35 |
| KAF87R57DM90M4 | 250 | 1.1KW | 5.70r/min | 1700N.m | 123kg | 28300N | 1.60 |
| KAF87R57DM90M4 | 236 | 1.1KW | 6.00r/min | 1610N.m | 123kg | 28400N | 1.70 |
| KAF87R57DM90M4 | 201 | 1.1KW | 7.10r/min | 1360N.m | 123kg | 28600N | 1.95 |
Kaf87r57dre71m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87R57DRE71M4 | 1415 | 0.37KW | 0.97r/min | 3250N.m | 113.5kg | 26500N | 0.85 |
| KAF87R57DRE71M4 | 1229 | 0.37KW | 1.10r/min | 2820N.m | 113.5kg | 27100N | 0.95 |
| KAF87R57DRE71M4 | 1078 | 0.37KW | 1.30r/min | 2460N.m | 113.5kg | 27600N | 1.10 |
| KAF87R57DRE71M4 | 951 | 0.37KW | 1.40r/min | 2140N.m | 113.5kg | 27900N | 1.25 |
| KAF87R57DRE71M4 | 837 | 0.37KW | 1.60r/min | 1870N.m | 113.5kg | 28200N | 1.45 |
| KAF87R57DRE71M4 | 726 | 0.37KW | 1.90r/min | 1620N.m | 113.5kg | 28400N | 1.65 |
| KAF87R57DRE71M4 | 638 | 0.37KW | 2.20r/min | 1440N.m | 113.5kg | 28500N | 1.85 |
| KAF87R57DRE71M4 | 562 | 0.37KW | 2.50r/min | 1250N.m | 113.5kg | 28600N | 2.20 |
| KAF87R57DRE71M4 | 474 | 0.37KW | 2.90r/min | 1050N.m | 113.5kg | 28800N | 2.60 |
| KAF87R57DRE71M4 | 426 | 0.37KW | 3.20r/min | 950N.m | 113.5kg | 28800N | 2.80 |
| KAF87R57DRE71M4 | 373 | 0.37KW | 3.70r/min | 830N.m | 113.5kg | 28900N | 3.20 |
KAF87R57DM90M4Speeding machine type:
K87r57dm90m4 bottom foot is fitted with tilt gears - umbrella gear-reducing power
Ka87br57dm90m4 foot hollow axis with tilt gears - umbrella gear reduction power
Kv87br57dm90m4 foot larvae axis installed with tilt gears - umbrella gear reduction power
Kh87br57dm90m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf 87r57dm90m4b5 installation of tilt gear - umbrella gear reduction power
Kaf87r57dm90m4b5 french aerocentric axes fitted with tilt gears - umbrella gear reduction power
Frf87r57dm90m4b5 installation of tilt gear - umbrella gear reduction power
Khf87r57dm90m4b5 franium axle locks fitted with tilt gears - umbrella gear-reducing power
Ka87r57dm90m4 hollow axle tilt gears - an umbrella gear reduction power
Kv87r57dm90m4 space cores fitted with tilt gears - umbrella gear reduction power
Kh87r57dm90m4 sky axe locked tilt gear - umbrella gear deviation engine
The kt87r57dm90m4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz87r57dm90m4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors on the flannel axis kvz87r57dm90m4b14
Dhz87r57dm90m4b14 franium axle locks fitted with tilt gears - an umbrella gear-reducing power plant

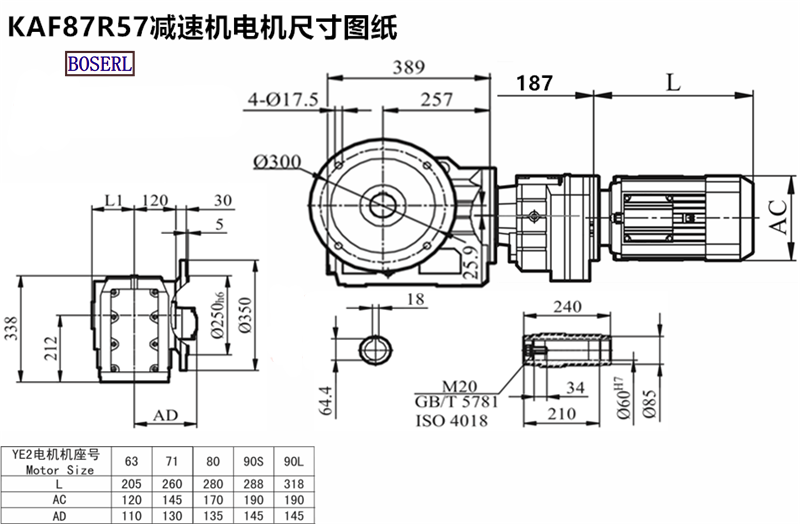

KAF87R57DM90M4Induction Motor 3Ph motors installed size drawings
Kaf87r57dm90m4 deviation electric power plant. please make an appointment three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
