KAF87R57DRS80M4Detailed Information
Keyword: 0. 12 kw with what cone gear brakes _kaf87r57drs80m4_kaf87r57dt71m4
KAF87R57DRS80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87R57DRS80M4 | 726 | 0.75KW | 2.00r/min | 3270N.m | 119kg | 26500N | 0.80 |
| KAF87R57DRS80M4 | 638 | 0.75KW | 2.20r/min | 2890N.m | 119kg | 27000N | 0.95 |
| KAF87R57DRS80M4 | 562 | 0.75KW | 2.60r/min | 2530N.m | 119kg | 27500N | 1.05 |
| KAF87R57DRS80M4 | 474 | 0.75KW | 3.00r/min | 2130N.m | 119kg | 27900N | 1.25 |
| KAF87R57DRS80M4 | 426 | 0.75KW | 3.40r/min | 1910N.m | 119kg | 28100N | 1.40 |
| KAF87R57DRS80M4 | 373 | 0.75KW | 3.80r/min | 1680N.m | 119kg | 28300N | 1.60 |
| KAF87R57DRS80M4 | 330 | 0.75KW | 4.40r/min | 1470N.m | 119kg | 28500N | 1.85 |
| KAF87R57DRS80M4 | 294 | 0.75KW | 4.90r/min | 1310N.m | 119kg | 28600N | 2.0 |
| KAF87R57DRS80M4 | 250 | 0.75KW | 5.70r/min | 1130N.m | 119kg | 28700N | 2.4 |
| KAF87R57DRS80M4 | 236 | 0.75KW | 6.10r/min | 1070N.m | 119kg | 28700N | 2.5 |
| KAF87R57DRS80M4 | 201 | 0.75KW | 7.10r/min | 910N.m | 119kg | 28800N | 3.0 |
Kaf87r57dt71m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87R57DT71M4 | 1415 | 0.37KW | 0.97r/min | 3250N.m | 113.5kg | 26500N | 0.85 |
| KAF87R57DT71M4 | 1229 | 0.37KW | 1.10r/min | 2820N.m | 113.5kg | 27100N | 0.95 |
| KAF87R57DT71M4 | 1078 | 0.37KW | 1.30r/min | 2460N.m | 113.5kg | 27600N | 1.10 |
| KAF87R57DT71M4 | 951 | 0.37KW | 1.40r/min | 2140N.m | 113.5kg | 27900N | 1.25 |
| KAF87R57DT71M4 | 837 | 0.37KW | 1.60r/min | 1870N.m | 113.5kg | 28200N | 1.45 |
| KAF87R57DT71M4 | 726 | 0.37KW | 1.90r/min | 1620N.m | 113.5kg | 28400N | 1.65 |
| KAF87R57DT71M4 | 638 | 0.37KW | 2.20r/min | 1440N.m | 113.5kg | 28500N | 1.85 |
| KAF87R57DT71M4 | 562 | 0.37KW | 2.50r/min | 1250N.m | 113.5kg | 28600N | 2.20 |
| KAF87R57DT71M4 | 474 | 0.37KW | 2.90r/min | 1050N.m | 113.5kg | 28800N | 2.60 |
| KAF87R57DT71M4 | 426 | 0.37KW | 3.20r/min | 950N.m | 113.5kg | 28800N | 2.80 |
| KAF87R57DT71M4 | 373 | 0.37KW | 3.70r/min | 830N.m | 113.5kg | 28900N | 3.20 |
KAF87R57DRS80M4Speeding machine type:
K87r57drs80m4 bottom foot with tilt gear - umbrella gear deviation engine
Ka87br57drrs80m4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv87br57drrs80m4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh87br57drs80m4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf87r57drs80m4b5 installation of tilt gear - umbrella gear-reducing power
Kaf87r57drs80m4b5 french aerocentric axles with tilt gears - an umbrella gear reduction power
Kvf87r57drs80m4b5franco-axis installation of tilt gear - umbrella gear-reducing electric power
Khf87r57drs80m4b5farland axle locks with tilt gears - an umbrella gear-reducing motor
Ka87r57drs80m4 hollow axle tilt gears - an umbrella gear decelerator
Kv87r57drs80m4 sky axis with tilt gear - umbrella gear deviation engine
Kh87r57drs80m4 empty axle locks the wheel slashing gears - an umbrella gear decelerator
The kt87r57drs80m4 hollow axis is equipped with tilt gears - an umbrella gear-reducing power plant
Kaz87r57drs80m4b14 installation of tilt gear - umbrella gear reduction power
Kvz87r57drs80m4b14franco-axis installation of tilt gear - umbrella gear deviation engine
Khz87r57drrs80m4b14 franium axle locks fitted with tilt gears - umbrella gear reduction power

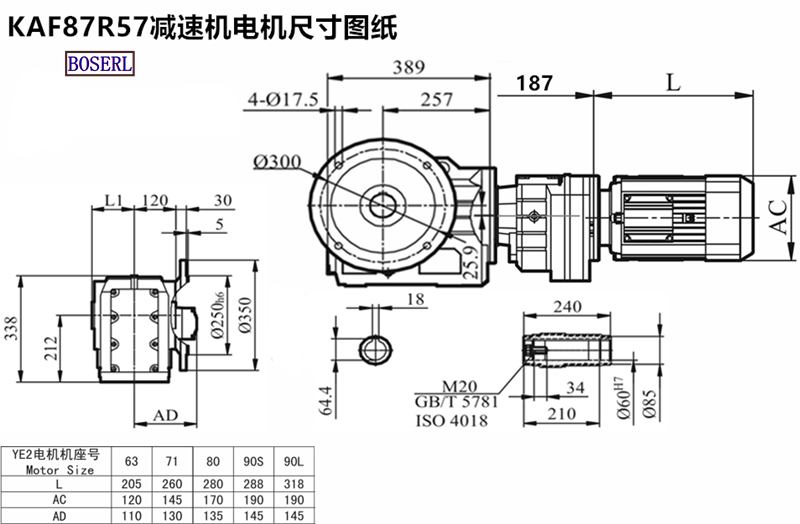

KAF87R57DRS80M4Induction Motor 3Ph motors installed size drawings
Kaf87r57drs80m4 power deviation plant, three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
