KAF87R57DT71S4Detailed Information
Keyword: 110kw with what hollowreduction machine _kaf87r57dt71s4_kaf87r57dre80k4
KAF87R57DT71S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87R57DT71S4 | 2088 | 0.25KW | 0.62r/min | 3390N.m | 113kg | 26300N | 0.80 |
| KAF87R57DT71S4 | 1854 | 0.25KW | 0.70r/min | 3010N.m | 113kg | 26900N | 0.90 |
| KAF87R57DT71S4 | 1657 | 0.25KW | 0.78r/min | 2690N.m | 113kg | 27300N | 1.00 |
| KAF87R57DT71S4 | 1415 | 0.25KW | 0.92r/min | 2290N.m | 113kg | 27800N | 1.15 |
| KAF87R57DT71S4 | 1229 | 0.25KW | 1.10r/min | 1990N.m | 113kg | 28100N | 1.35 |
| KAF87R57DT71S4 | 1078 | 0.25KW | 1.20r/min | 1730N.m | 113kg | 28300N | 1.55 |
| KAF87R57DT71S4 | 951 | 0.25KW | 1.40r/min | 1500N.m | 113kg | 28500N | 1.80 |
| KAF87R57DT71S4 | 837 | 0.25KW | 1.60r/min | 1310N.m | 113kg | 28600N | 2.10 |
| KAF87R57DT71S4 | 726 | 0.25KW | 1.80r/min | 1130N.m | 113kg | 28700N | 2.40 |
| KAF87R57DT71S4 | 638 | 0.25KW | 2.00r/min | 1010N.m | 113kg | 28800N | 2.70 |
Kaf87r57dre80k4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87R57DRE80K4 | 951 | 0.55KW | 1.40r/min | 3250N.m | 118kg | 26500N | 0.85 |
| KAF87R57DRE80K4 | 837 | 0.55KW | 1.60r/min | 2840N.m | 118kg | 27100N | 0.95 |
| KAF87R57DRE80K4 | 726 | 0.55KW | 1.90r/min | 2470N.m | 118kg | 27600N | 1.10 |
| KAF87R57DRE80K4 | 638 | 0.55KW | 2.20r/min | 2180N.m | 118kg | 27900N | 1.25 |
| KAF87R57DRE80K4 | 562 | 0.55KW | 2.50r/min | 1910N.m | 118kg | 28100N | 1.40 |
| KAF87R57DRE80K4 | 474 | 0.55KW | 2.90r/min | 1610N.m | 118kg | 28400N | 1.70 |
| KAF87R57DRE80K4 | 426 | 0.55KW | 3.20r/min | 1440 N.m | 118kg | 28500N | 1.85 |
| KAF87R57DRE80K4 | 373 | 0.55KW | 3.70r/min | 1270N.m | 118kg | 28600N | 2.10 |
| KAF87R57DRE80K4 | 330 | 0.55KW | 4.20r/min | 1100N.m | 118kg | 28700N | 2.40 |
| KAF87R57DRE80K4 | 294 | 0.55KW | 4.70r/min | 990N.m | 118kg | 28800N | 2.70 |
| KAF87R57DRE80K4 | 250 | 0.55KW | 5.50r/min | 860N.m | 118kg | 28900N | 3.10 |
| KAF87R57DRE80K4 | 236 | 0.55KW | 5.80r/min | 810N.m | 118kg | 28900N | 3.30 |
| KAF87R57DRE80K4 | 201 | 0.55KW | 6.90r/min | 685N.m | 118kg | 28900N | 3.90 |
KAF87R57DT71S4Speeding machine type:
K87r57dt71s4 bottom foot with tilt gear - umbrella gear deviation engine
Ka87br57dt71s4 foot hollow axis is equipped with tilt gears - umbrella gear-reducing power
The kv87br57dt71s4 bottom foot larvae axis is equipped with tilt gears - an umbrella gear-reducing motor
Kh87br57dt71s4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf87r57dt71s4b5 installation of tilt gears - umbrella gear reduction power
Kaf87r57dt71s4b5 french aerocentric axles with tilt gears - umbrella gear reduction power
Kvf87r57dt71s4b5francocardiograms installed with tilt gears - umbrella gear-reducing power
Khf87r57dt71s4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka87r57dt71s4 hollow axial tilt gears - an umbrella gear reduction power
Kv87r57dt71s4 spaced axles with tilt gears - umbrella gear reduction power
Kh87r57dt71s4 sky axes locked tilt gears - umbrella gear deviation engine
The kt87r57dt71s4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz87r57dt71s4b14 installation of tilt gear - umbrella gear reduction power
Kvz87r57dt71s4b14francocardial axis installation of tilt gears - umbrella gear reduction power
Khz87r57dt71s4b14 french axle locks with tilt gears - umbrella gear reduction power

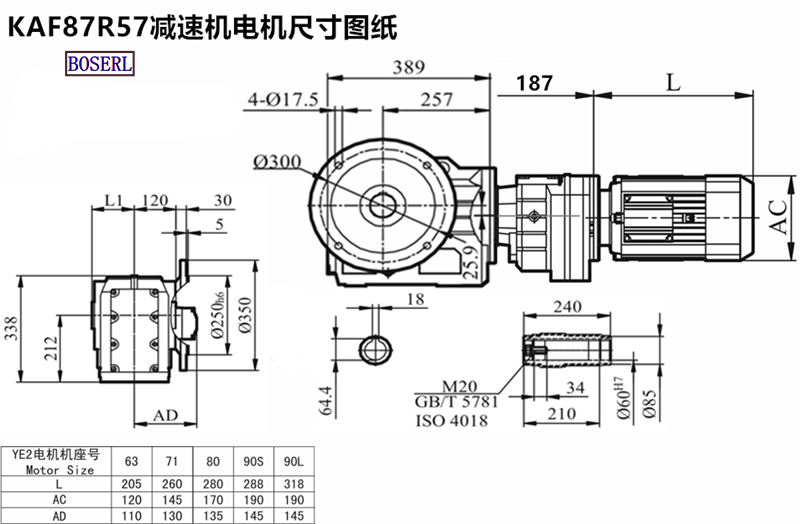

KAF87R57DT71S4Induction Motor 3Ph motors installed size drawings
Kaf87r57dt71s4 deviation plant, three days' appointmentGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: What kind of carnival speed-reducing machine is kaf87r57dt71s4kaf87r57dre80k4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF87R57DT71S4减速机样本 |
|
| KAF87R57DT71S4减速机三维图纸 |
|
