KAF87R57DT80S4Detailed Information
Keyword: 11kw with what hollowreducing machine_kaf87r57dt80s4_kaf87r57drre90l4
KAF87R57DT80S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87R57DT80S4 | 951 | 0.55KW | 1.40r/min | 3250N.m | 118kg | 26500N | 0.85 |
| KAF87R57DT80S4 | 837 | 0.55KW | 1.60r/min | 2840N.m | 118kg | 27100N | 0.95 |
| KAF87R57DT80S4 | 726 | 0.55KW | 1.90r/min | 2470N.m | 118kg | 27600N | 1.10 |
| KAF87R57DT80S4 | 638 | 0.55KW | 2.20r/min | 2180N.m | 118kg | 27900N | 1.25 |
| KAF87R57DT80S4 | 562 | 0.55KW | 2.50r/min | 1910N.m | 118kg | 28100N | 1.40 |
| KAF87R57DT80S4 | 474 | 0.55KW | 2.90r/min | 1610N.m | 118kg | 28400N | 1.70 |
| KAF87R57DT80S4 | 426 | 0.55KW | 3.20r/min | 1440 N.m | 118kg | 28500N | 1.85 |
| KAF87R57DT80S4 | 373 | 0.55KW | 3.70r/min | 1270N.m | 118kg | 28600N | 2.10 |
| KAF87R57DT80S4 | 330 | 0.55KW | 4.20r/min | 1100N.m | 118kg | 28700N | 2.40 |
| KAF87R57DT80S4 | 294 | 0.55KW | 4.70r/min | 990N.m | 118kg | 28800N | 2.70 |
| KAF87R57DT80S4 | 250 | 0.55KW | 5.50r/min | 860N.m | 118kg | 28900N | 3.10 |
| KAF87R57DT80S4 | 236 | 0.55KW | 5.80r/min | 810N.m | 118kg | 28900N | 3.30 |
| KAF87R57DT80S4 | 201 | 0.55KW | 6.90r/min | 685N.m | 118kg | 28900N | 3.90 |
Kaf87r57dre90l4 motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87R57DRE90L4 | 330 | 1.5KW | 4.30r/min | 3020N.m | 126kg | 26900N | 0.90 |
| KAF87R57DRE90L4 | 294 | 1.5KW | 4.90r/min | 2700N.m | 126kg | 27300N | 1.00 |
| KAF87R57DRE90L4 | 250 | 1.5KW | 5.70r/min | 2320N.m | 126kg | 27700N | 1.15 |
| KAF87R57DRE90L4 | 236 | 1.5KW | 6.00r/min | 2190N.m | 126kg | 27900N | 1.25 |
| KAF87R57DRE90L4 | 201 | 1.5KW | 7.10r/min | 1860N.m | 126kg | 28200N | 1.45 |
| KAF87R57DRE90L4 | 183 | 1.5KW | 7.80r/min | 1690N.m | 126kg | 28300N | 1.60 |
KAF87R57DT80S4Speeding machine type:
K87r57dt80s4 bottom foot is equipped with tilt gears - umbrella gear reduction power
Ka87br57dt80s4 bottom foot hollow axis fitted with tilt gear - umbrella gear-reducing power
Kv87br57dt80s4 bottom feet cascular axes with tilt gear - umbrella gear deviation electric
Kh87br57dt80s 4-foot hollow-axis locks with tilt gears.Right-angle shaft reducer motor
Frf 87r57dt80s4b5 installation of tilt gear - umbrella gear reduction power
Kaf87r57dt80s4b5 french aerocentric axle is equipped with tilt gears - umbrella gear-reducing power
Kvf87r57dt80s4b5 frandra keys installation of tilt gear - umbrella gear deviation engine
Khf87r57dt80s4b5farland axle locks fitted with tilt gears - umbrella gear-reducing power
Ka87r57dt80s4 hollow axle tilt gear - umbrella gear reduction power
Kv87r57dt80s4 spaced axles with tilt gears - umbrella gear reduction power
Kh87r57dt80s4 empty axle locks the wheel slashing gears - an umbrella gear decelerator
Installation of tilt gears on kt87r57dt80s4 hollow axle - umbrella gear reduction power
Kaz87r57dt80s4b14 installation of tilt gear - umbrella gear reduction power
Kvz87r57dt80s4b14 franco-axis installation of tilt gear - umbrella gear deviation engine
Khz87r57dt80s4b14 french axle locks fitted with tilt gears - umbrella gear reduction power

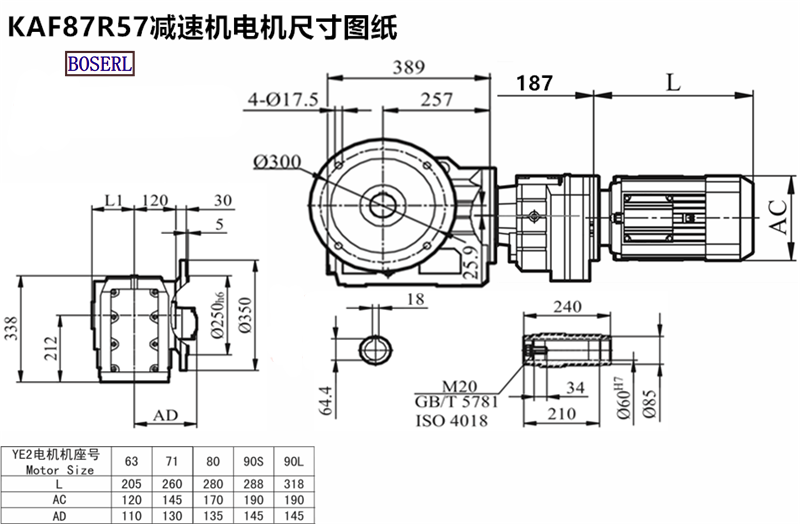

KAF87R57DT80S4Induction Motor 3Ph motors installed size drawings
Kaf87r57dt80s4 deviation power plant. please make an appointment three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: What kind of carnival speed retardation is kaf87r57dt80s4kkaf87r57dr90l4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| KAF87R57DT80S4减速机样本 |
|
| KAF87R57DT80S4减速机三维图纸 |
|
