KAF87R57DV63MS4Detailed Information
Keywords: how much kw power does it fit for a hollow cup breaker? _kaf87r57dv63ms4_kaf87r57drrn80n4
KAF87R57DV63MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87R57DV63MS4 | 5240 | 0.12KW | 0.26r/min | 3470N.m | 108.5kg | 26200N | 0.80 |
| KAF87R57DV63MS4 | 4562 | 0.12KW | 0.30r/min | 2890N.m | 108.5kg | 27000N | 0.95 |
| KAF87R57DV63MS4 | 4037 | 0.12KW | 0.34r/min | 2680N.m | 108.5kg | 27300N | 1.00 |
| KAF87R57DV63MS4 | 3609 | 0.12KW | 0.38r/min | 2390N.m | 108.5kg | 27600N | 1.15 |
| KAF87R57DV63MS4 | 3107 | 0.12KW | 0.44r/min | 2060N.m | 108.5kg | 28000N | 1.30 |
| KAF87R57DV63MS4 | 2728 | 0.12KW | 0.51r/min | 1730N.m | 108.5kg | 28300N | 1.55 |
| KAF87R57DV63MS4 | 2371 | 0.12KW | 0.58r/min | 1530N.m | 108.5kg | 28400N | 1.75 |
| KAF87R57DV63MS4 | 2088 | 0.12KW | 0.66r/min | 1430N.m | 108.5kg | 28500N | 1.90 |
| KAF87R57DV63MS4 | 1854 | 0.12KW | 0.74r/min | 1270N.m | 108.5kg | 28600N | 2.10 |
| KAF87R57DV63MS4 | 1657 | 0.12KW | 0.83r/min | 1130N.m | 108.5kg | 28700N | 2.40 |
| KAF87R57DV63MS4 | 1415 | 0.12KW | 0.97r/min | 960N.m | 108.5kg | 28800N | 2.80 |
| KAF87R57DV63MS4 | 1229 | 0.12KW | 1.10r/min | 830N.m | 108.5kg | 28900N | 3.20 |
| KAF87R57DV63MS4 | 1078 | 0.12KW | 1.30r/min | 720N.m | 108.5kg | 28900N | 3.70 |
| KAF87R57DV63MS4 | 951 | 0.12KW | 1.40r/min | 610N.m | 108.5kg | 29000N | 4.40 |
| KAF87R57DV63MS4 | 837 | 0.12KW | 1.60r/min | 520N.m | 108.5kg | 29000N | 5.20 |
| KAF87R57DV63MS4 | 726 | 0.12KW | 1.90r/min | 450N.m | 108.5kg | 29000N | 5.90 |
Kaf87r57drn80n4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87R57DRN80N4 | 726 | 0.75KW | 2.00r/min | 3270N.m | 119kg | 26500N | 0.80 |
| KAF87R57DRN80N4 | 638 | 0.75KW | 2.20r/min | 2890N.m | 119kg | 27000N | 0.95 |
| KAF87R57DRN80N4 | 562 | 0.75KW | 2.60r/min | 2530N.m | 119kg | 27500N | 1.05 |
| KAF87R57DRN80N4 | 474 | 0.75KW | 3.00r/min | 2130N.m | 119kg | 27900N | 1.25 |
| KAF87R57DRN80N4 | 426 | 0.75KW | 3.40r/min | 1910N.m | 119kg | 28100N | 1.40 |
| KAF87R57DRN80N4 | 373 | 0.75KW | 3.80r/min | 1680N.m | 119kg | 28300N | 1.60 |
| KAF87R57DRN80N4 | 330 | 0.75KW | 4.40r/min | 1470N.m | 119kg | 28500N | 1.85 |
| KAF87R57DRN80N4 | 294 | 0.75KW | 4.90r/min | 1310N.m | 119kg | 28600N | 2.0 |
| KAF87R57DRN80N4 | 250 | 0.75KW | 5.70r/min | 1130N.m | 119kg | 28700N | 2.4 |
| KAF87R57DRN80N4 | 236 | 0.75KW | 6.10r/min | 1070N.m | 119kg | 28700N | 2.5 |
| KAF87R57DRN80N4 | 201 | 0.75KW | 7.10r/min | 910N.m | 119kg | 28800N | 3.0 |
KAF87R57DV63MS4Speeding machine type:
K87r57dv63ms4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka87br57dv63ms4 foot hollow axis fitted with tilt gear - umbrella gear-reducing power
The kv87br57dv63ms4 bottom foot larvae axis is equipped with tilt gears - umbrella gear reduction power
Kh87br57dv63ms4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf87r57dv63ms4b5 installation of tilt gears - umbrella gear reduction power
Kaf87r57dv63ms4b5 french aerocentric axle is equipped with tilt gears - an umbrella gear reduction power
Frf87r57dv63ms4b5 installation of tilt gears - umbrella gear reduction power
Khf87r57dv63ms4b5farland axial axle locks fitted with tilt gears - umbrella gear reduction power
Ka87r57dv63ms4 tilt gears - umbrella gear reduction power
The kv87r57dv63ms4 space cores are equipped with tilt gears - an umbrella gear decelerator
Kh87r57dv63ms4 sky axes locked tilt gears - umbrella gear deviation engine
Installation of tilt gears on kt87r57dv63ms4 hollow axle - umbrella gear reduction power
Kaz87r57dv63ms4b14 installation of tilt gear - umbrella gear reduction power
Kvz87r57dv63ms4b14 installing slash gears - umbrella gear reduction power
Khz87r57dv63ms4b14 french axle locks fitted with tilt gears - umbrella gear-reducing power

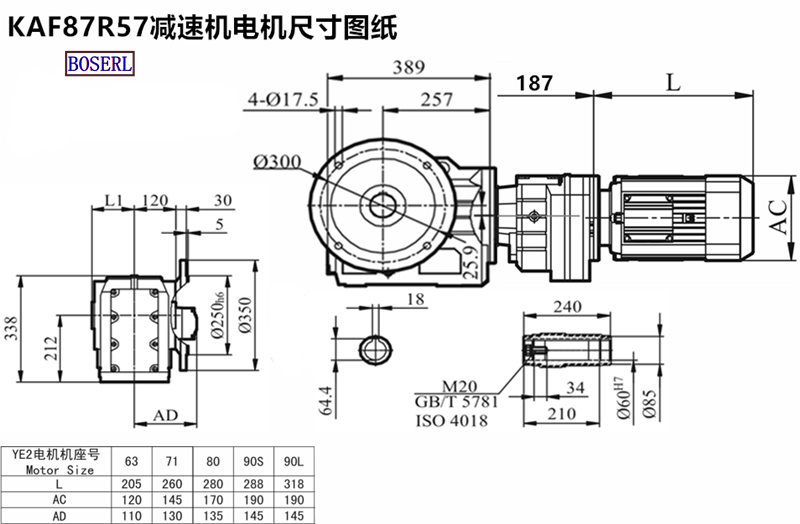

KAF87R57DV63MS4Induction Motor 3Ph motors installed size drawings
Kaf87r57dv63ms4 deviation power plant, three days' appointmentGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
