KAF87R57DV90L4Detailed Information
Keywords: how much kw power can be with an empty cup brake _kaf87r57dv90l4_kaf87r57drn80s4
KAF87R57DV90L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87R57DV90L4 | 330 | 1.5KW | 4.30r/min | 3020N.m | 126kg | 26900N | 0.90 |
| KAF87R57DV90L4 | 294 | 1.5KW | 4.90r/min | 2700N.m | 126kg | 27300N | 1.00 |
| KAF87R57DV90L4 | 250 | 1.5KW | 5.70r/min | 2320N.m | 126kg | 27700N | 1.15 |
| KAF87R57DV90L4 | 236 | 1.5KW | 6.00r/min | 2190N.m | 126kg | 27900N | 1.25 |
| KAF87R57DV90L4 | 201 | 1.5KW | 7.10r/min | 1860N.m | 126kg | 28200N | 1.45 |
| KAF87R57DV90L4 | 183 | 1.5KW | 7.80r/min | 1690N.m | 126kg | 28300N | 1.60 |
Kaf87r57drn80s4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87R57DRN80S4 | 951 | 0.55KW | 1.40r/min | 3250N.m | 118kg | 26500N | 0.85 |
| KAF87R57DRN80S4 | 837 | 0.55KW | 1.60r/min | 2840N.m | 118kg | 27100N | 0.95 |
| KAF87R57DRN80S4 | 726 | 0.55KW | 1.90r/min | 2470N.m | 118kg | 27600N | 1.10 |
| KAF87R57DRN80S4 | 638 | 0.55KW | 2.20r/min | 2180N.m | 118kg | 27900N | 1.25 |
| KAF87R57DRN80S4 | 562 | 0.55KW | 2.50r/min | 1910N.m | 118kg | 28100N | 1.40 |
| KAF87R57DRN80S4 | 474 | 0.55KW | 2.90r/min | 1610N.m | 118kg | 28400N | 1.70 |
| KAF87R57DRN80S4 | 426 | 0.55KW | 3.20r/min | 1440 N.m | 118kg | 28500N | 1.85 |
| KAF87R57DRN80S4 | 373 | 0.55KW | 3.70r/min | 1270N.m | 118kg | 28600N | 2.10 |
| KAF87R57DRN80S4 | 330 | 0.55KW | 4.20r/min | 1100N.m | 118kg | 28700N | 2.40 |
| KAF87R57DRN80S4 | 294 | 0.55KW | 4.70r/min | 990N.m | 118kg | 28800N | 2.70 |
| KAF87R57DRN80S4 | 250 | 0.55KW | 5.50r/min | 860N.m | 118kg | 28900N | 3.10 |
| KAF87R57DRN80S4 | 236 | 0.55KW | 5.80r/min | 810N.m | 118kg | 28900N | 3.30 |
| KAF87R57DRN80S4 | 201 | 0.55KW | 6.90r/min | 685N.m | 118kg | 28900N | 3.90 |
KAF87R57DV90L4Speeding machine type:
K87r57dv90l4 bottom foot is fitted with tilt gears - umbrella gear reduction power
Ka87br57dv90l4 foot hollow axis with tilt gears - umbrella gear reduction power
The kv87br57dv90l4 bottom foot larvae axis is equipped with tilt gears - umbrella gear-reducing power sets
Kh87br57dv90l4 foot hollow axle locks with tilt gears.Right-angle shaft reducer motor
Frf 87r57dv90l4b5 installation of tilt gear - umbrella gear reduction power
Kaf87r57dv90l4b5 french aerocentric axis with tilt gears - umbrella gear reduction power
Kvf87r57dv90l4b5francocardimetric axis installed with tilt gears - umbrella gear-reducing motor
Khf87r57dv90l4b5farland axial axle locks fitted with tilt gears - umbrella gear-reducing power
Ka87r57dv90l4 hollow axial tilt gears - an umbrella gear reduction power
Kv87r57dv90l4 spaced axles with tilt gears - umbrella gear reduction power
Kh87r57dv90l4 empty axle locks the wheel slashing gears - an umbrella gear decelerator
The kt87r57dv90l4 hollow axle is equipped with tilt gears - an umbrella gear decelerator
Kaz87r57dv90l4b14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors on the franberry axle
Khz87r57dv90l4b14farland axial axle locks fitted with tilt gears - umbrella gear reduction power

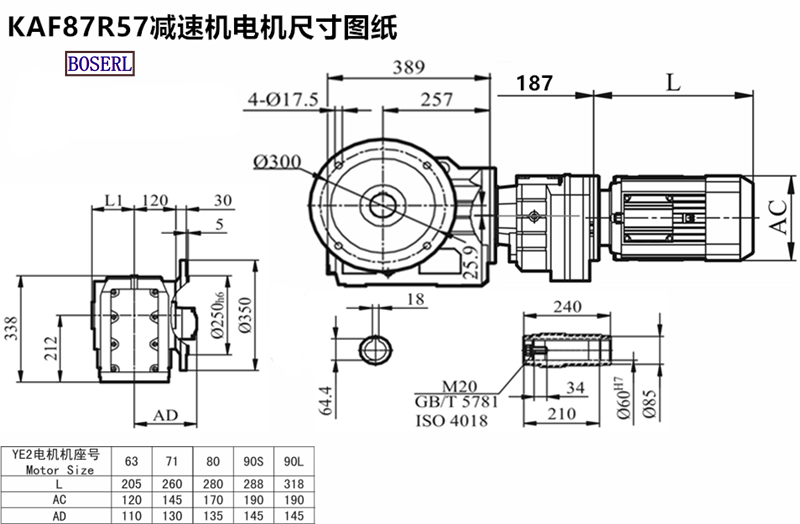

KAF87R57DV90L4Induction Motor 3Ph motors installed size drawings
Kaf87r57dv90l4 power plant. please make an appointment three days in advanceGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
标签: The size of the 160kw power grid with a hollow cup speed-retarder kaf87r57dv90l4 kaf87r57drn80s4
