KAF87RF57-Y0.18KWDetailed Information
Keywords: 37kw electric power to what extent the hollow cupreliefer_kaf87rf57-y0. 18kw_kaf87rf57-y0. 37kw
KAF87RF57-Y0.18KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87RF57-Y0.18KW | 3107 | 0.18KW | 0.42r/min | 3430N.m | 109kg | 26200N | 0.80 |
| KAF87RF57-Y0.18KW | 2728 | 0.18KW | 0.48r/min | 2920N.m | 109kg | 27000N | 0.90 |
| KAF87RF57-Y0.18KW | 2371 | 0.18KW | 0.56r/min | 2560N.m | 109kg | 27400N | 1.05 |
| KAF87RF57-Y0.18KW | 2088 | 0.18KW | 0.63r/min | 2350N.m | 109kg | 27700N | 1.15 |
| KAF87RF57-Y0.18KW | 1854 | 0.18KW | 0.71r/min | 2080N.m | 109kg | 28000N | 1.30 |
| KAF87RF57-Y0.18KW | 1657 | 0.18KW | 0.80r/min | 1860N.m | 109kg | 28200N | 1.45 |
| KAF87RF57-Y0.18KW | 1415 | 0.18KW | 0.93r/min | 1590N.m | 109kg | 28400N | 1.70 |
| KAF87RF57-Y0.18KW | 1229 | 0.18KW | 1.10r/min | 1380N.m | 109kg | 28600N | 1.95 |
| KAF87RF57-Y0.18KW | 1078 | 0.18KW | 1.20r/min | 1200N.m | 109kg | 28700N | 2.20 |
| KAF87RF57-Y0.18KW | 951 | 0.18KW | 1.40r/min | 1030N.m | 109kg | 28800N | 2.60 |
| KAF87RF57-Y0.18KW | 837 | 0.18KW | 1.60r/min | 890N.m | 109kg | 28800N | 3.00 |
| KAF87RF57-Y0.18KW | 726 | 0.18KW | 1.80r/min | 775N.m | 109kg | 28900N | 3.50 |
Kaf87rf57-y0. 37kw reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87RF57-Y0.37KW | 1415 | 0.37KW | 0.97r/min | 3250N.m | 113.5kg | 26500N | 0.85 |
| KAF87RF57-Y0.37KW | 1229 | 0.37KW | 1.10r/min | 2820N.m | 113.5kg | 27100N | 0.95 |
| KAF87RF57-Y0.37KW | 1078 | 0.37KW | 1.30r/min | 2460N.m | 113.5kg | 27600N | 1.10 |
| KAF87RF57-Y0.37KW | 951 | 0.37KW | 1.40r/min | 2140N.m | 113.5kg | 27900N | 1.25 |
| KAF87RF57-Y0.37KW | 837 | 0.37KW | 1.60r/min | 1870N.m | 113.5kg | 28200N | 1.45 |
| KAF87RF57-Y0.37KW | 726 | 0.37KW | 1.90r/min | 1620N.m | 113.5kg | 28400N | 1.65 |
| KAF87RF57-Y0.37KW | 638 | 0.37KW | 2.20r/min | 1440N.m | 113.5kg | 28500N | 1.85 |
| KAF87RF57-Y0.37KW | 562 | 0.37KW | 2.50r/min | 1250N.m | 113.5kg | 28600N | 2.20 |
| KAF87RF57-Y0.37KW | 474 | 0.37KW | 2.90r/min | 1050N.m | 113.5kg | 28800N | 2.60 |
| KAF87RF57-Y0.37KW | 426 | 0.37KW | 3.20r/min | 950N.m | 113.5kg | 28800N | 2.80 |
| KAF87RF57-Y0.37KW | 373 | 0.37KW | 3.70r/min | 830N.m | 113.5kg | 28900N | 3.20 |
KAF87RF57-Y0.18KWSpeeding machine type:
K87rf57-y0. 18kw bottom foot installation of tilt gear - umbrella gear deviation engine
Ka87brf57-y0. 18kw bottom foot hollow axis fitted with tilt gear - umbrella gear reduction power
Kv87brf57-y0. 18kw bottom foot flow axes installation of tilt gears - umbrella gear deviation engine
Kh87brf57-y0. 18kw foot hollow axle locks fitted with tilt gears -Right-angle shaft reducer motor
Frf87rf57-y0. 18kwb5 installation of tilt gears - umbrella gear reduction power
Kaf87rf57-y0. 18kwb5 installation of tilt gears - umbrella gear reduction power
Frf87rf57-y0. 18kwb5 installation of tilt gears - umbrella gear-reducing power
Khf87rf57-y0. 18kwb5 franium axle locks fitted with tilt gears - umbrella gear-reducing power
Ka87rf57-y0. 18kw hollow axle tilt gears - umbrella gear reduction power
Kv87rf57-y0. 18kw space cores fitted with tilt gears - umbrella gear reduction power
Kh87rf57-y0. 18kw hollow axle locks the slant gears - an umbrella gear-reducing motor
Kt87rf57-y0. 18kw tilt gears - umbrella gear-reducing power
Kaz87rf57-y0. 18kwb14 installation of tilt gear - umbrella gear reduction power
Installation of tilt gears on the flannel axle of flannel z. 87rf57-y0. 18kwb14 - umbrella gear-reducing power
Dhz87rf57-y0. 18kwb14 french axle locks fitted with tilt gears - umbrella gear-reducing power

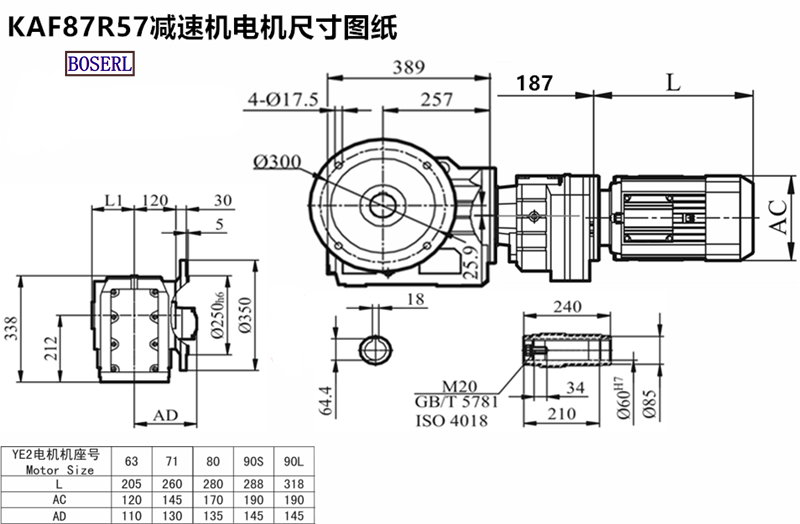

KAF87RF57-Y0.18KWInduction Motor 3Ph motors installed size drawings
Kaf87rf57-y0. 18kw power-reducing plantGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
