KAF87RF57-Y0.55KWDetailed Information
Keywords: how much kw power can go with a hollow cup decelerator_kaf87rf57-y0. 55kw_kaf87rf57-y71m4
KAF87RF57-Y0.55KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87RF57-Y0.55KW | 951 | 0.55KW | 1.40r/min | 3250N.m | 118kg | 26500N | 0.85 |
| KAF87RF57-Y0.55KW | 837 | 0.55KW | 1.60r/min | 2840N.m | 118kg | 27100N | 0.95 |
| KAF87RF57-Y0.55KW | 726 | 0.55KW | 1.90r/min | 2470N.m | 118kg | 27600N | 1.10 |
| KAF87RF57-Y0.55KW | 638 | 0.55KW | 2.20r/min | 2180N.m | 118kg | 27900N | 1.25 |
| KAF87RF57-Y0.55KW | 562 | 0.55KW | 2.50r/min | 1910N.m | 118kg | 28100N | 1.40 |
| KAF87RF57-Y0.55KW | 474 | 0.55KW | 2.90r/min | 1610N.m | 118kg | 28400N | 1.70 |
| KAF87RF57-Y0.55KW | 426 | 0.55KW | 3.20r/min | 1440 N.m | 118kg | 28500N | 1.85 |
| KAF87RF57-Y0.55KW | 373 | 0.55KW | 3.70r/min | 1270N.m | 118kg | 28600N | 2.10 |
| KAF87RF57-Y0.55KW | 330 | 0.55KW | 4.20r/min | 1100N.m | 118kg | 28700N | 2.40 |
| KAF87RF57-Y0.55KW | 294 | 0.55KW | 4.70r/min | 990N.m | 118kg | 28800N | 2.70 |
| KAF87RF57-Y0.55KW | 250 | 0.55KW | 5.50r/min | 860N.m | 118kg | 28900N | 3.10 |
| KAF87RF57-Y0.55KW | 236 | 0.55KW | 5.80r/min | 810N.m | 118kg | 28900N | 3.30 |
| KAF87RF57-Y0.55KW | 201 | 0.55KW | 6.90r/min | 685N.m | 118kg | 28900N | 3.90 |
Kaf87rf57-y71m4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| KAF87RF57-Y71M4 | 1415 | 0.37KW | 0.97r/min | 3250N.m | 113.5kg | 26500N | 0.85 |
| KAF87RF57-Y71M4 | 1229 | 0.37KW | 1.10r/min | 2820N.m | 113.5kg | 27100N | 0.95 |
| KAF87RF57-Y71M4 | 1078 | 0.37KW | 1.30r/min | 2460N.m | 113.5kg | 27600N | 1.10 |
| KAF87RF57-Y71M4 | 951 | 0.37KW | 1.40r/min | 2140N.m | 113.5kg | 27900N | 1.25 |
| KAF87RF57-Y71M4 | 837 | 0.37KW | 1.60r/min | 1870N.m | 113.5kg | 28200N | 1.45 |
| KAF87RF57-Y71M4 | 726 | 0.37KW | 1.90r/min | 1620N.m | 113.5kg | 28400N | 1.65 |
| KAF87RF57-Y71M4 | 638 | 0.37KW | 2.20r/min | 1440N.m | 113.5kg | 28500N | 1.85 |
| KAF87RF57-Y71M4 | 562 | 0.37KW | 2.50r/min | 1250N.m | 113.5kg | 28600N | 2.20 |
| KAF87RF57-Y71M4 | 474 | 0.37KW | 2.90r/min | 1050N.m | 113.5kg | 28800N | 2.60 |
| KAF87RF57-Y71M4 | 426 | 0.37KW | 3.20r/min | 950N.m | 113.5kg | 28800N | 2.80 |
| KAF87RF57-Y71M4 | 373 | 0.37KW | 3.70r/min | 830N.m | 113.5kg | 28900N | 3.20 |
KAF87RF57-Y0.55KWSpeeding machine type:
K87rf57-y0. 55kw bottom foot installation of tilt gears - umbrella gear deviation engine
Ka87brf57-y0. 55kw bottom foot hollow axis fitted with tilt gears - umbrella gear reduction power
Kv87brf57-y0. 55kw bottom foot flow axes installation of tilt gears - umbrella gear deviation engine
Kh87brf57-y0. 55kw foot hollow axle locks installed with tilt gears -Right-angle shaft reducer motor
Frf87rf57-y0. 55 kwb5 installation of tilt gear - umbrella gear-reducing power
Kaf87rf57-y0. 55 kwb5 installation of tilt gears - umbrella gear reduction power
Frf87rf57-y0. 55 kwb5 installation of tilt gears - umbrella gear reduction power
Khf87rf57-y0. 55 kwb5 franium axle locks fitted with tilt gears - umbrella gear reduction power
Ka87rf57-y0. 55kw hollow axial tilt gears - an umbrella gear reduction power
Kv87rf57-y0. 55kw spaced axles with tilt gears - umbrella gear reduction power
Kh87rf57-y0. 55kw hollow axle lock slasher gears - umbrella gear reduction power
Installation of tilt gears on kt87rf57-y0. 55kw hollow axle - umbrella gear decelerators
Kaz87rf57-y0. 55 kwb14 installation of tilt gears - umbrella gear reduction power
Installation of tilt gears - umbrella gear-reducing motors on the flannel axes of the flannel z87rf57-y0. 55 kwb14
Dhz87rf57-y0. 55 kwb14 franium axle lockboard installation of tilt gears - umbrella gear deviation engine

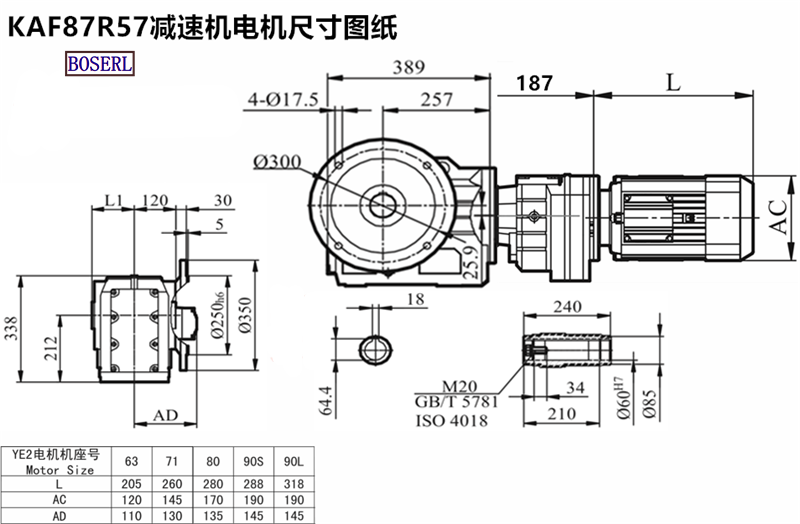

KAF87RF57-Y0.55KWInduction Motor 3Ph motors installed size drawings
Kaf87rf57-y0. 55kw power-reducing plantGear with motor
Gear with motor,AC Motor&Gear,Motor gearheads,Motor reductor Geared motor
KAF37 gear reducer, KAF47 gear reducer, KAF57 gear reducer, KAF67 gear reducer, KAF77 gear reducer, KAF87 gear reducer, KAF97 gear reducer, KAF107 Gear Reducer, KAF127 Gear Reducer, KAF157 Gear Reducer, KAF167 Gear Reducer, KAF187 Gear Reducer Helical bewel gearbox
KAF Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 200KW
